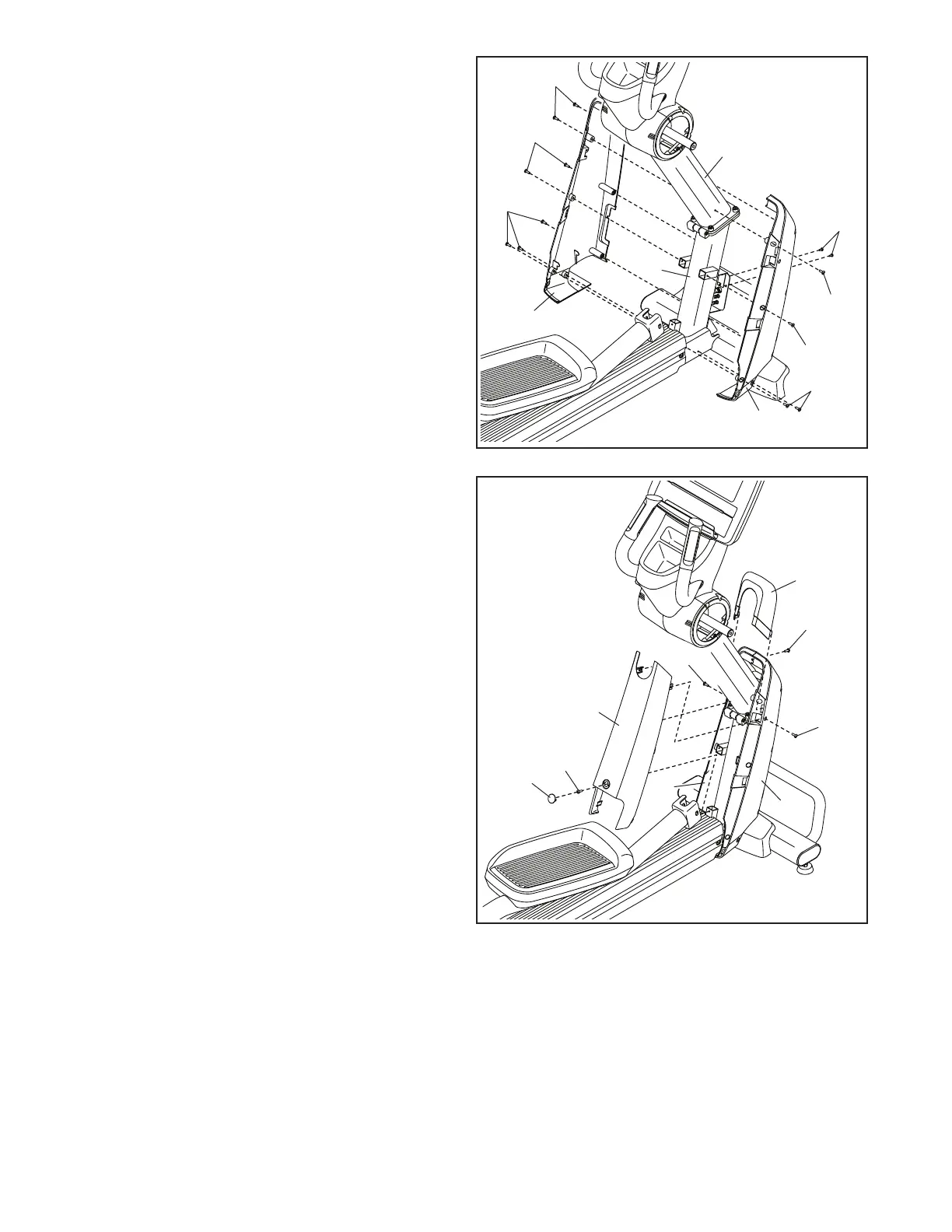

2. Identify the Left and Right Frame Covers
(57, 60), and orient them as shown.
Hold the Left and Right Frame Covers (57,
60) together around the Frame (1) and the
Upright (2).
Attach the Left and Right Frame Covers (57,
60) with eleven M5 x 12mm Screws (71) and
two M5 x 10mm Truss Screws (73); start all the
Screws, and then tighten them.
2
71
71
71
57
1
2
71
60
71
73
71
3. Attach the Top Frame Cover (58) to the Left and
Right Frame Covers (57, 60) with an M5 x 12mm
Screw (71).
Next, press the Center Frame Cover (59) onto
the Right and Left Frame Covers (57, 60).
Remove the Screw Cap (55) from the Center
Frame Cover (59).
Attach the Center Frame Cover (59) with three
M5 x 12mm Screws (71); start all the Screws,
and then tighten them.
Then, press the Screw Cap (55) back into the
Center Frame Cover (59).
