for improper operation or adjustment of the auto-
matic slack adjuster. See Group 42 of the
108SD and 114SD Workshop Manual for inspec-
tion and troubleshooting procedures.
5. Check all of the foundation brake components for
damage, wear, and loose or missing parts. Re-
pair as needed. See Group 42 of the 108SD and
114SD Workshop Manual for repair procedures.
f42265707/30/2018
1
2
3
4
4
3
2
1
A B

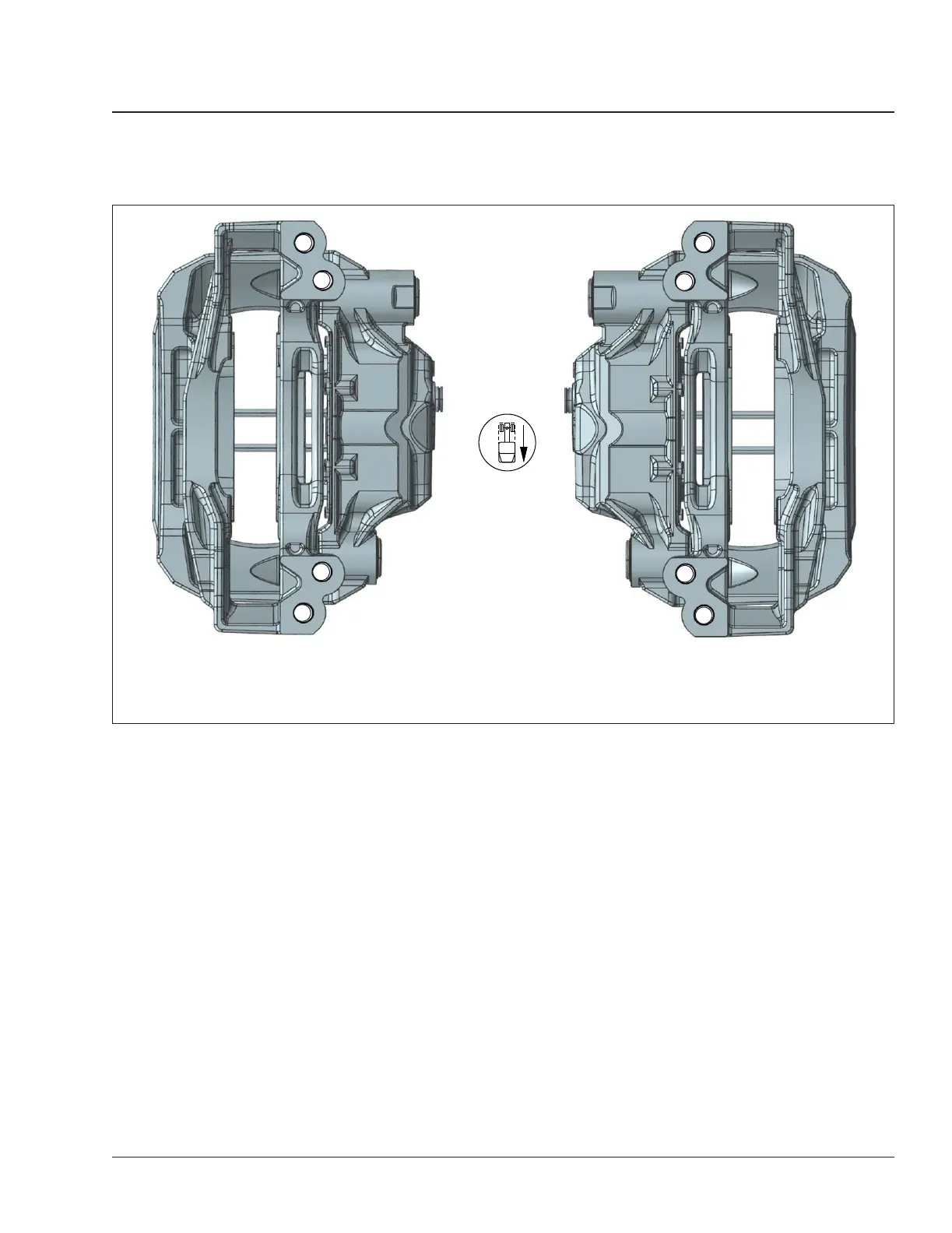

Tighten the fasteners in the order indicated.
A. Left Hand, Bottom View B. Right Hand, Bottom View
Fig. 8, Wabco Maxxus Radial Mounted Caliper Tightening Pattern
Brakes 42
108SD and 114SD Maintenance Manual, October 2019 42/11
