25–01 Eaton Fuller Clutch
Release Bearing
Lubrication
The standard clutch release bearing is sealed, and
does not require lubrication. If the vehicle is
equipped with an optional clutch release bearing with
a grease fitting, lubricate the bearing as follows:
1. Park the vehicle on a level surface. Apply the
parking brakes, and chock the rear tires.
2. Remove the clutch inspection plate.
NOTE: Some clutch release bearings are
equipped with a lubrication extension that ex-
tends outside of the clutch housing. It is not
necessary to remove the clutch inspection plate
when the lubrication extension is used.
NOTE: For lubrication of the release bearing,
Eaton fuller recommends a lithium-base high-
temperature grease that meets the NLGI grade
one or two specification.
3. Wipe any dirt away from the grease fitting. See
Fig. 1. Use a pressure-type grease gun
equipped with the recommended grease, and
lubricate the bearing until excess grease purges
from the rear of the release bearing (toward the
transmission).
CAUTION
Do not over-lubricate the clutch release bearing.
Over-lubrication could contaminate the clutch in-
ternally, causing clutch slippage and premature
failure. Do not use chassis grease or multipurpose
lubricants.
4. Wipe off excess grease and apply it to both the
yoke-finger and the sleeve-bushing contact
points. See Fig. 2.
5. Install the clutch inspection plate.
6. Remove the chocks.
25–02 Clutch Release Cross-
Shaft Lubrication
The clutch release cross-shaft is equipped with two
grease fittings in the transmission clutch housing.
See Fig. 3 and Fig. 4. Wipe any dirt from the grease
fittings, then lubricate with multipurpose chassis
grease.
25–03 Sleeve Assembly Bronze
Bushing Lubrication
Vehicles equipped with the sealed clutch-release
bearing have a lubrication extension outside of the
clutch housing. This extension is needed to provide
lubrication to the bronze bushing located between
f250081a05/27/93

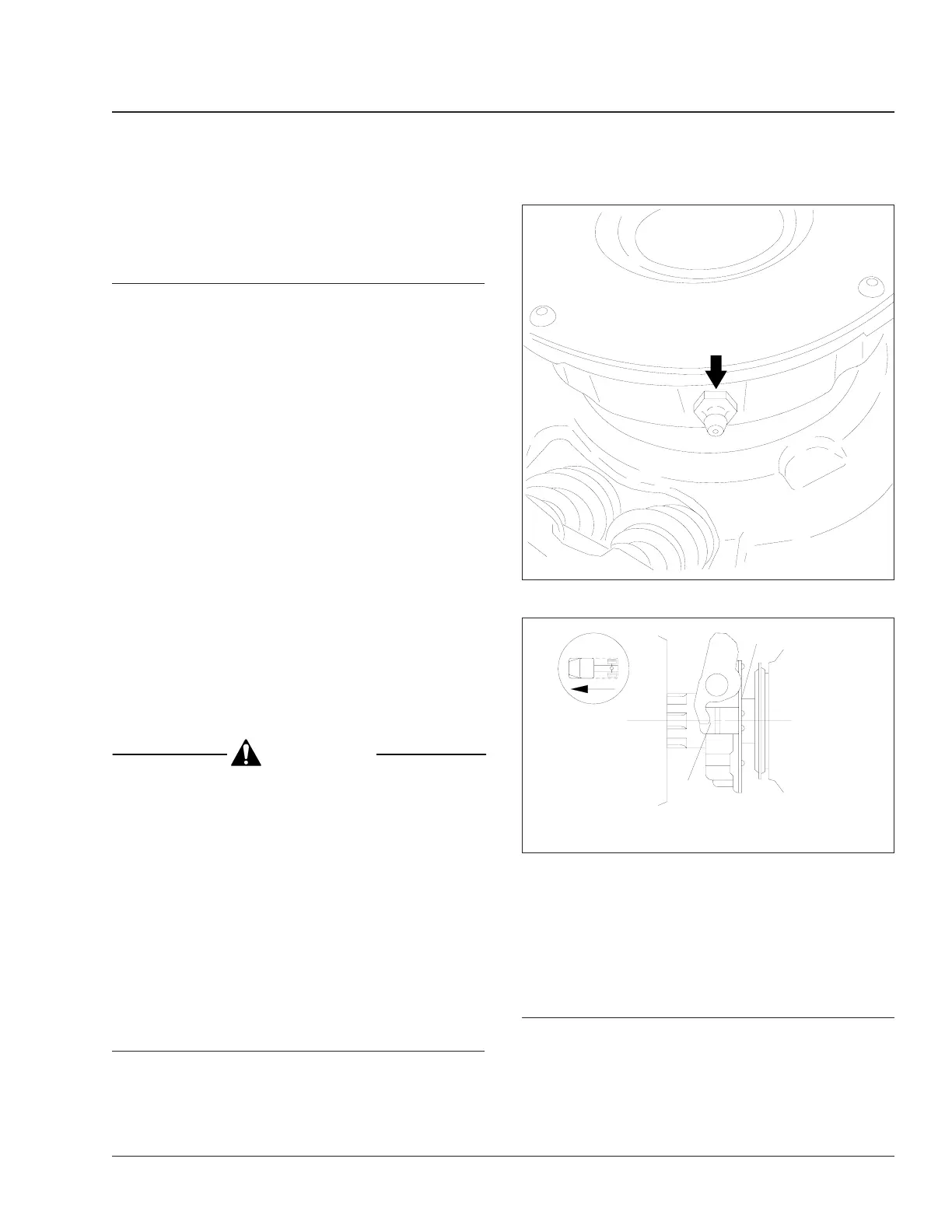

Fig. 1, Release Bearing Grease Fitting
07/11/97
f250444
1
2
1. Sleeve-Bushing Contact Point
2. Yoke-Finger Contact Points
Fig. 2, Grease the Contact Points
Clutch 25
Century Class Trucks Maintenance Manual, April 2005 25/1
