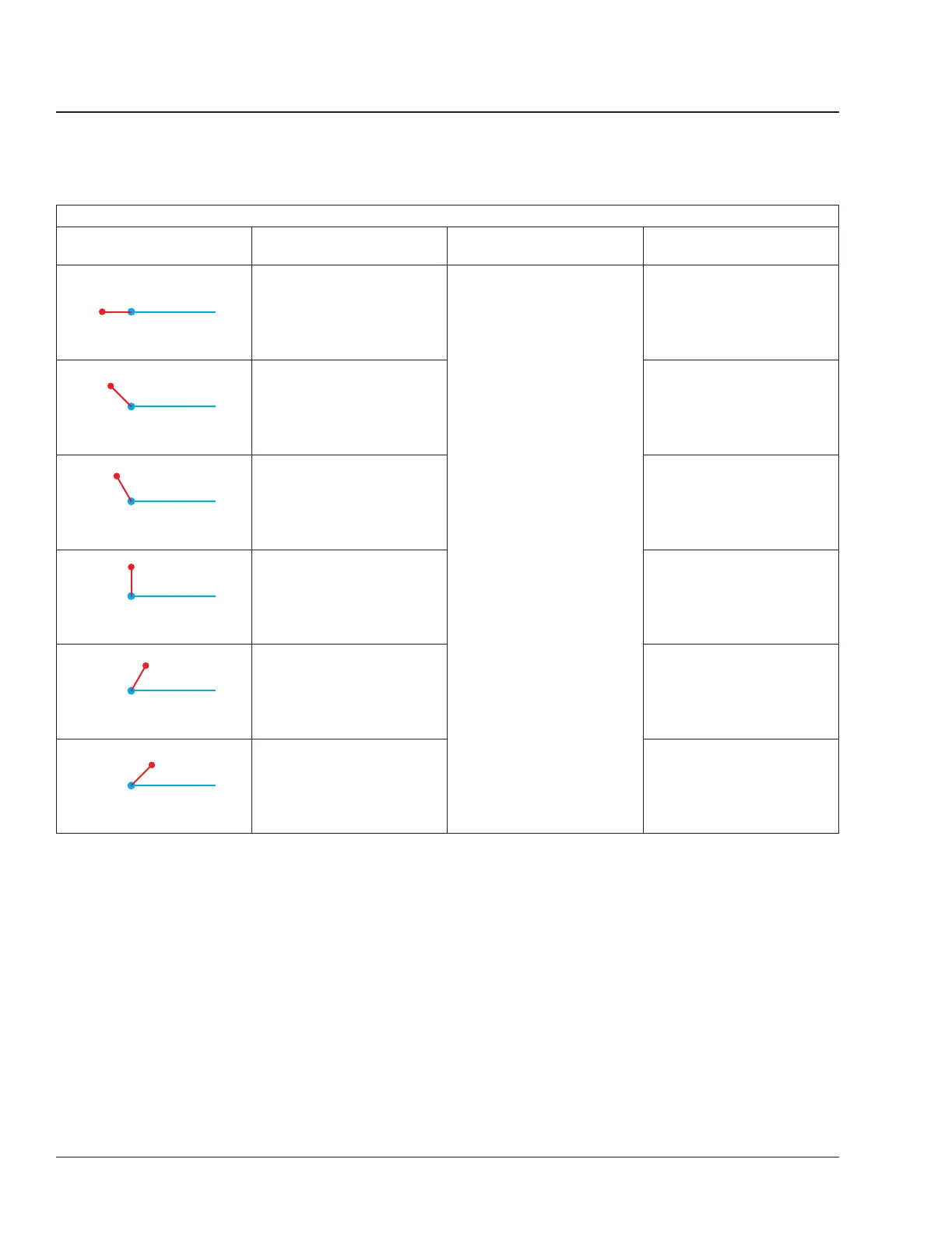

Torque Check with 47 Inch (119 cm) Torque Wrench and Tool DDC DSNCHA018005
Angle View
Extension Angle
(degrees)
Target Torque
[lbf·ft (N·m)]
Tool Setting
[lbf·ft (N·m)]
f42261311/28/2016
0°
0
350 (475)
296 (401)
f42261411/28/2016
45°
45 310 (420)
f42266811/06/2018
60°
60 320 (434)
f42261511/28/2016
90°
90 350 (475)
f42266911/06/2018
120°
120 386 (523)
f42261611/28/2016
135°
135 402 (545)
Table 1, Torque Check with 47 Inch (119 cm) Torque Wrench and Tool DDC DSNCHA018005
5. Install the wheel assemblies. For instructions,
see Group 40 of the Business Class M2 Plus
Workshop Manual for repair procedures.
6. Remove the jack stands and lower the vehicle.
Radial Mounted Brakes
Bendix Calipers
1. Park the vehicle on a level surface, shut down
the engine, and set the parking brake. Chock the
tires.
2. Raise the vehicle and support it on jack stands.
3. Remove all of the wheel assemblies. For
instructions, see Group 40 of the Business Class
M2 Plus Workshop Manual for repair procedures.
4. Set a torque wrench to 200 lbf·ft (271 N·m) and
tighten the caliper mounting bolts following the
tightening pattern shown in
Fig. 12. If they do
not turn, no further work is needed. If they turn,
take the vehicle to an authorized Freightliner
dealer to have all of the caliper bolts on that
wheel end replaced.
Brakes42
Business Class M2 Plus Maintenance Manual, 02/10/202342/12
