213

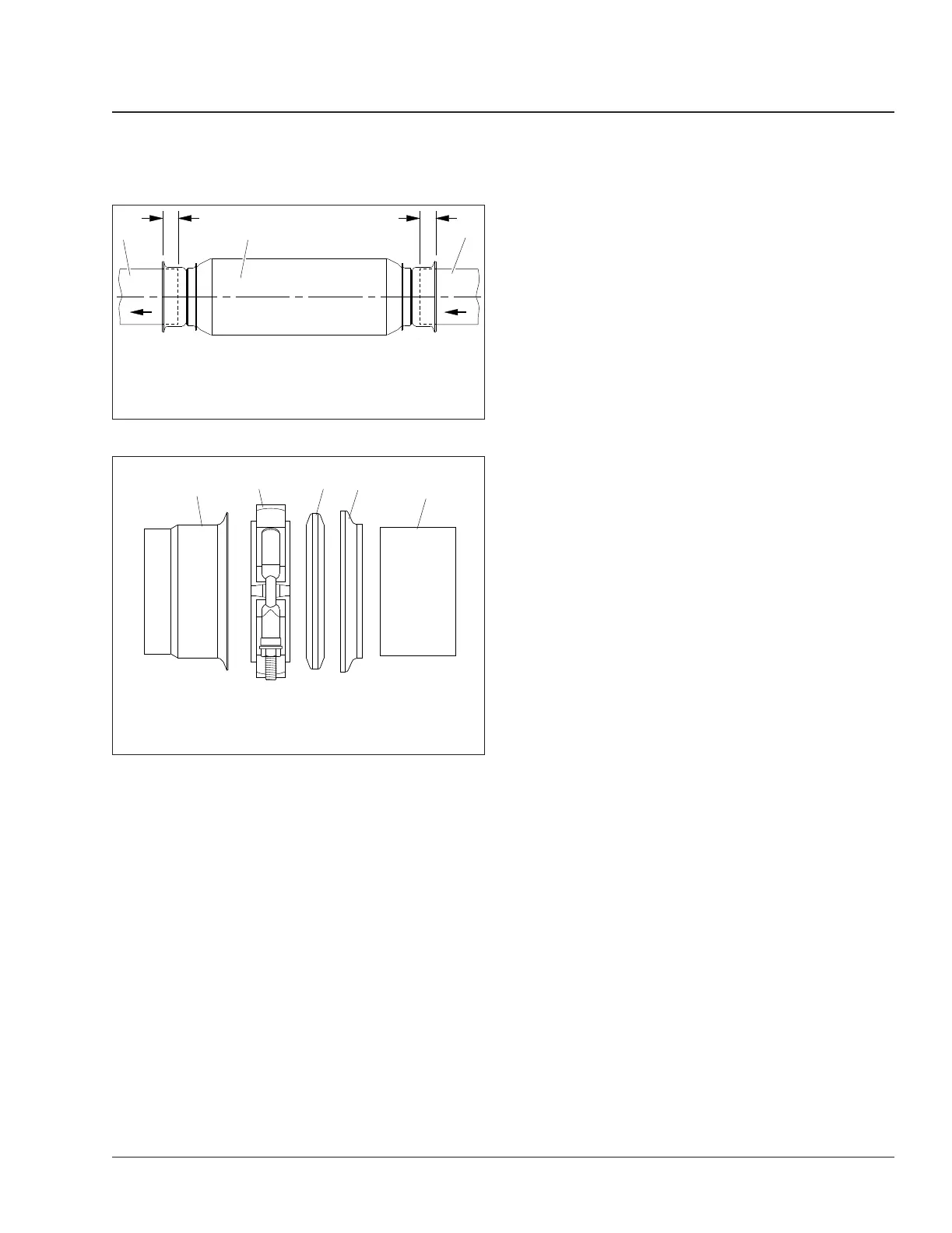

A. At least 7/16 inch (10 mm)
1. Forward CGI Pipe
2. CGI Bellows
3. Aft CGI Pipe
Fig. 4, CGI Bellows Installation
02/08/2010 f490417
5
4
3
2
1
1. CGI Bellows
2. Slip Clamp
3. Retaining Ring
4. Graphite Gasket
5. Forward CGI Pipe
Fig. 5, Forward Facing Slip Clamp Installation
