25–03 Clutch Adjusting,
Manually Adjusted
Clutches
NOTE: This procedure is only required for
vehicles equipped with non-synchronized
transmissions and manually adjusted clutches.
Release bearing travel is the clearance between the
rear surface of the release bearing housing and the
forward surface of the clutch brake disc. This
distance must be maintained between 1/2 and 9/16
inch (12.7 and 14.3 mm).
1. Remove the clutch inspection cover from the bell
housing. See
Fig. 5.
1
2
3
4
5
6
7
8
9
12/11/2001
f250581

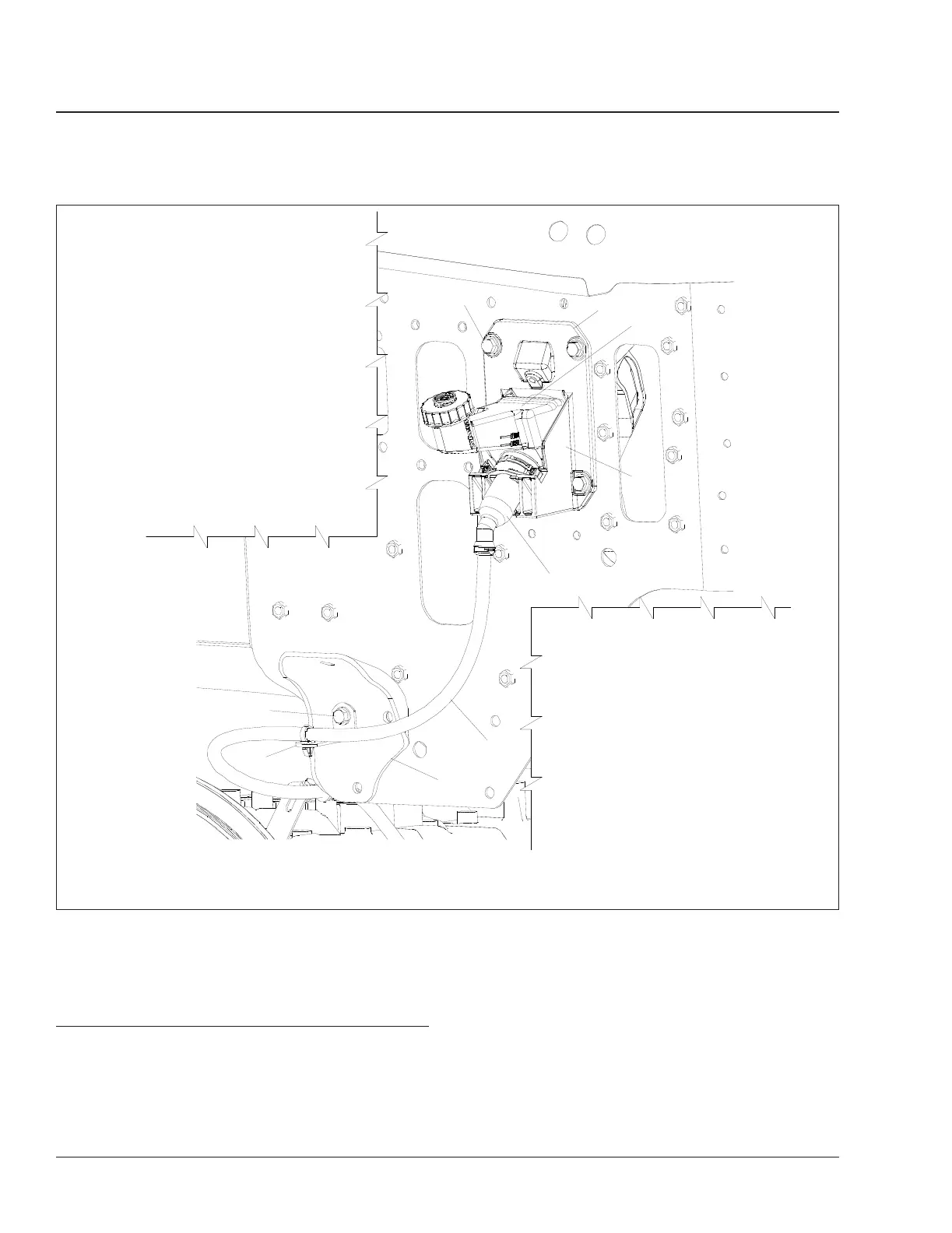

1. M8 Capscrew and Washer
2. Pedal Unit Mounting Plate
3. Reservoir
4. Pedal Unit
5. Master Cylinder
6. Hydraulic Hose
7. Cup Bracket
8. Standoff Bracket
9. Mounting Bolt, M10
Fig. 4, Clutch Master Cylinder
Clutch25
Business Class M2 Plus Maintenance Manual, 02/10/202325/4
