Loosen the two 5/16” nuts on both top fixture assemblies, adjust the top fixture slides until the top door
panel is in the same plane as the rest of the door panels and retighten 5/16” nuts.

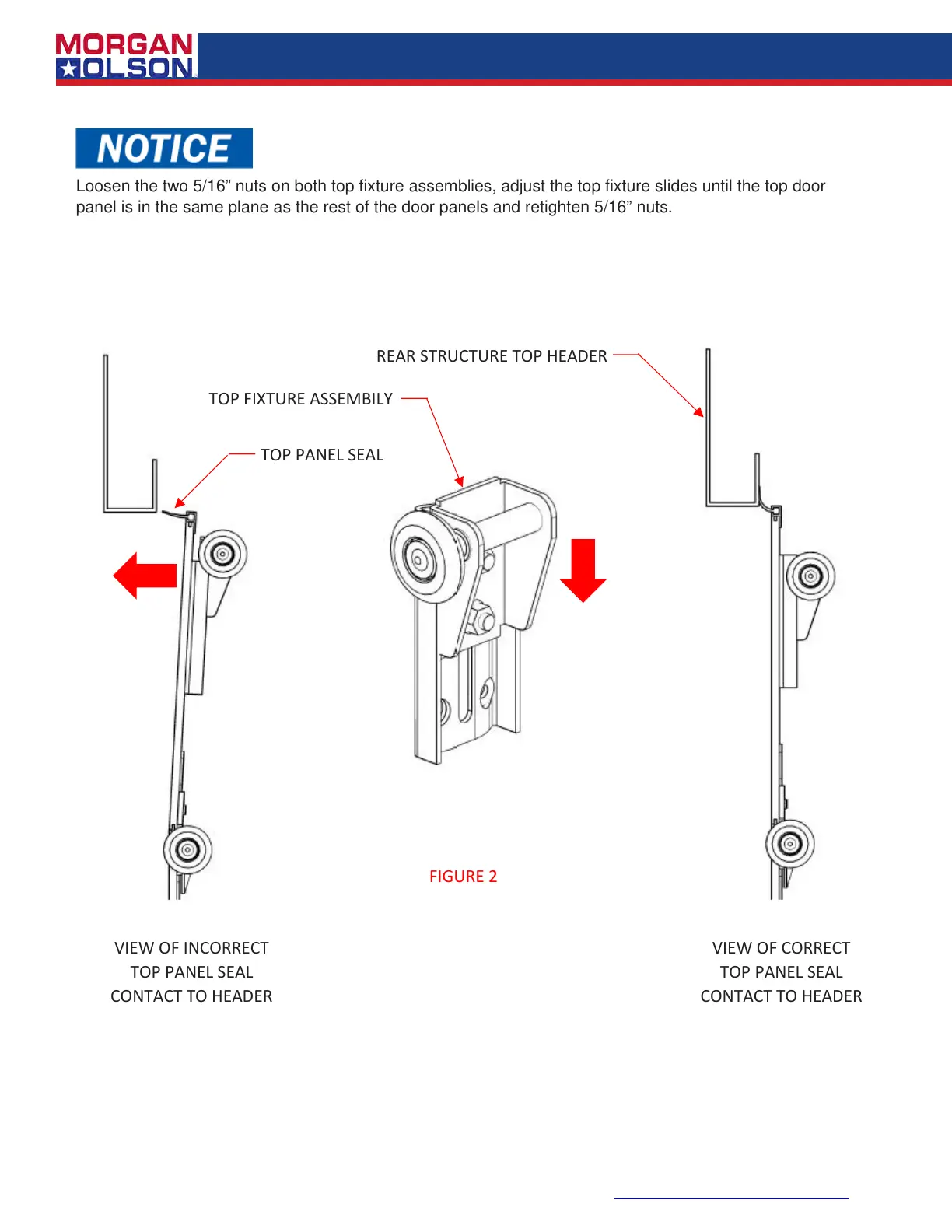

FIGURE 2
TOP FIXTURE ASSEMBILY
REAR STRUCTURE TOP HEADER
VIEW OF INCORRECT
TOP PANEL SEAL
CONTACT TO HEADER
VIEW OF CORRECT
TOP PANEL SEAL
CONTACT TO HEADER
TOP PANEL SEAL
