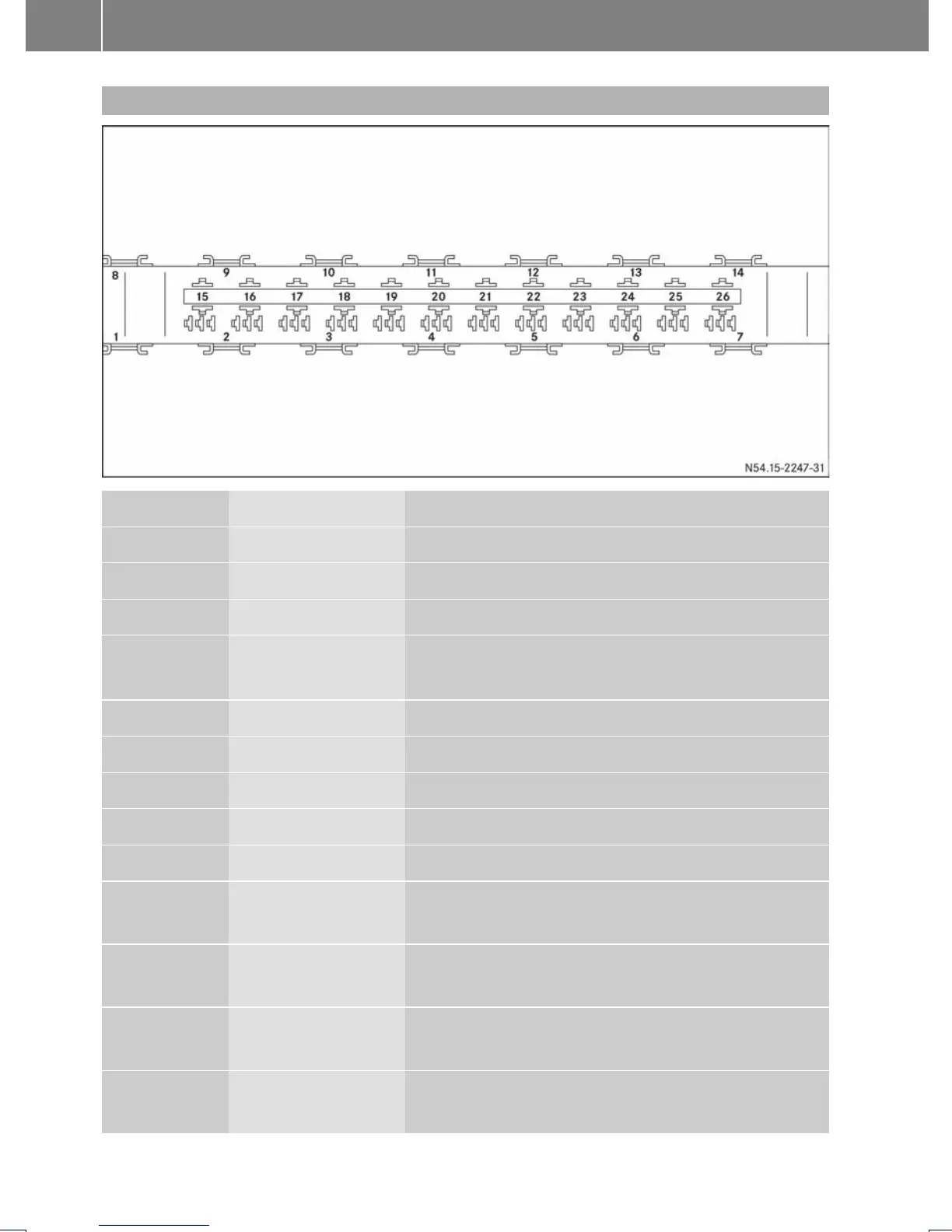

Relays in the seat base of the left front seat
No. Relays Description
R1 Unassigned
R2 K41 Load reliefrelay, terminal 15
R3 K41/5 Starter relay, terminal 15
R4 K64
K110
Secondary air injection/secondary air pump relay
SCR relay
2
, vehicles with exhaust gas aftertreatment
R5 K27 Fuel pump relay
R6 K23/1 Blower relay, front, blower setting 1
R7 K41/2 Load relief relay, terminal 15 R
R8 K6/1 Starter relay, additional battery
R9 K13/5 Rear window defroster relay 1
R10 K13/6
K51/15
Rear window defroster relay 2
Snow plow relay, low-beam headlamps, left
R11 K117/3
K51/16
Electrical step relay 1, sliding door, left
Snow plow relay, low-beam headlamps, right
R12 K117/4
K51/17
Electrical step relay 2, sliding door, left
Snow plow relay, high-beam headlamps, left
R13 K41/3
K51/18
Load relief relay, terminal 15 (2)
Snow plow relay, high-beam headlamps, right
2
Selective Catalytic Reduction.
12
Fuses supplement
