freightliner Sprinter Owner's Manual

Configuration
Fuses
The F87 fuse (30 A) for theDC/DCconverter
is under the SRB fuse and relay module in the
main fuse box. Have this fuse changed at a
qualified specialist workshop only.

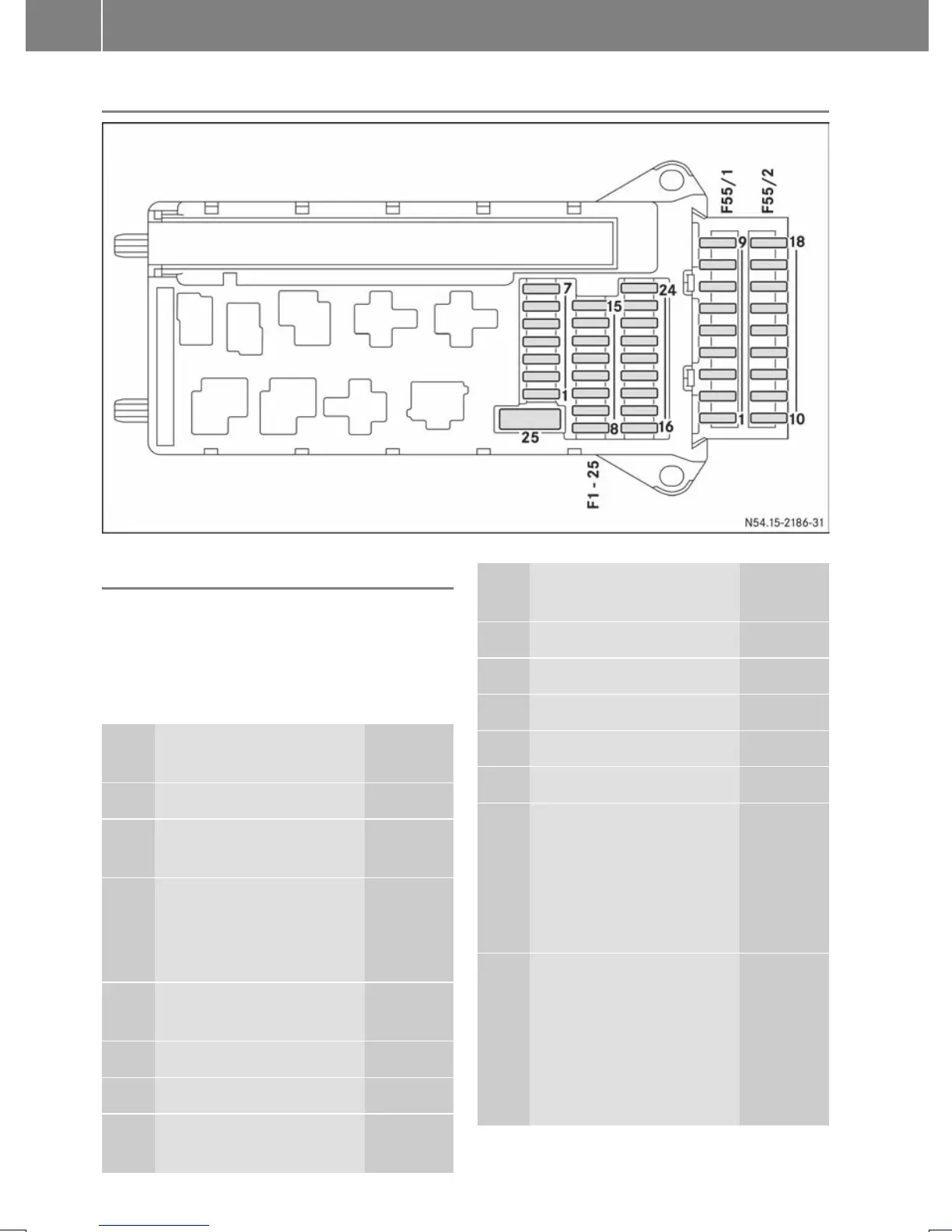

SRB fuse and relay module
No. Consumer Fuse
rating
1 Horn 15 A
2 ESTL (electric steering
lock) ignition lock
25 A
3 Terminal 30 Z, vehicles
with a gasoline engine/
ignition lock/instrument
cluster
10 A
4 Light switch/switch unit
on center console
5 A
5 Windshield wipers 30 A
6 Terminal 87/5 10 A
7 MRM (jacket tube
module)
5 A
No. Consumer Fuse
rating
8 Terminal 87 (2) 20 A
9 Terminal 87 (1) 25 A
10 Terminal 87 (4) 10 A
11 Terminal 15 R vehicle 15 A
12 Air bag control unit 10 A
13 Cigarette lighter/glove
box lamp/radio/body
manufacturer loading
tailgate/personal
navigation device (PND)
power socket
15 A
14 Diagnostics
connection/light
switch/instrument
cluster/deactivating
reverse warning device/
anti-theft protection with
vehicle tracking
5 A
4
Fuses supplement
