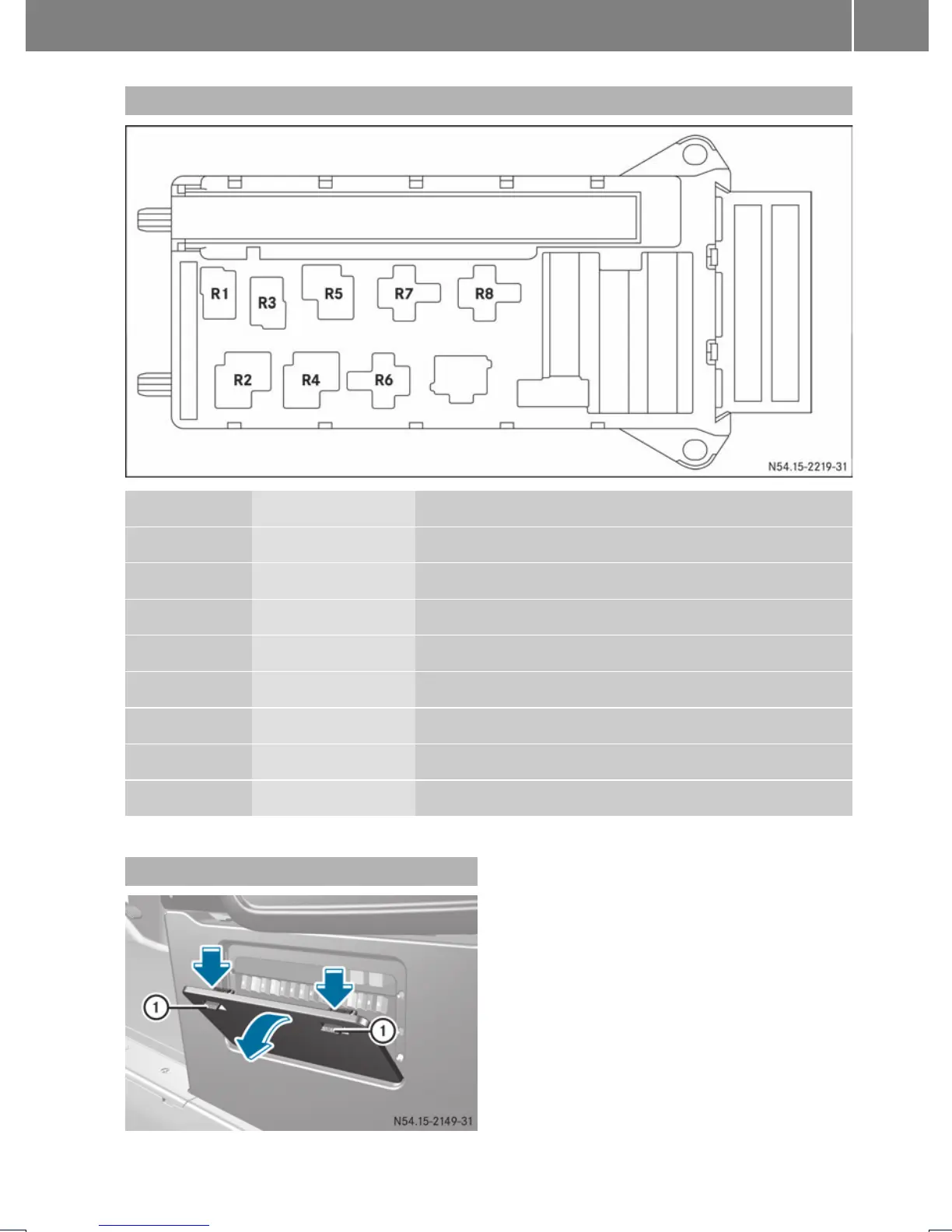

Relays in the main fuse box
No. Relays Description
R1 K40/9 Horn relay
R2 K40/9 Windshield wiper setting 1/2 relay
R3 K40/9 Starter relay, terminal 15
R4 K40/9 Windshield wipers on/off relay
R5 K40/9 Starter relay, terminal 50
R6 K40/9 Relay, terminal 15 R (normally opencontact)
R7 K40/9 Engine control unit relay, terminal 87
R8 K40/9 Relay, terminal 15 (reinforced relay)
Fuse box under the left front seat
Fuse box on the outside of the seat base
X
To open: move the front seat to the highest
position.
X
Press both latching springs : down and
remove the cover.
X
To close: attach the bottom edge of the
cover and fold upwards.
The cover must engage.
Fuses supplement
