freightliner Sprinter Owner's Manual

No. Consumer Fuse
rating
Passenger-
compartment
illumination (reading
lamps or LED light strip)
7.5 A
Convenience lighting 10 A
Reading and load-
compartment lights
(couriervehicles)
10 A
18 Rear-compartment air-
conditioning system
7.5 A

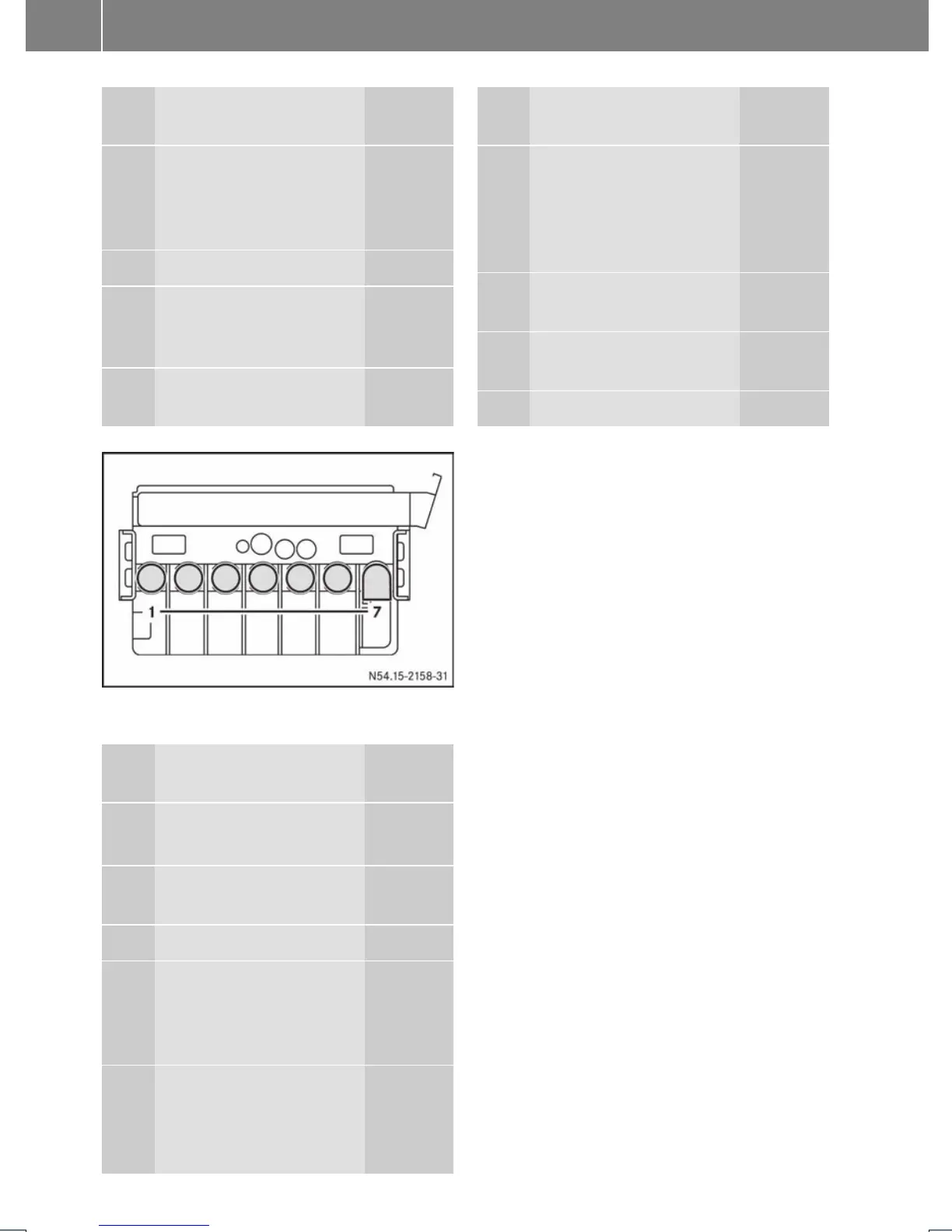

Pre-fuse box in the battery compartment in the
footwell on the left-hand side of the vehicle F59
No. Consumer Fuse
rating
1 Preglow relay
Secondary air pump
80 A
40 A
2 Air-conditioning system
cooling fan, cab
60 A
Cab 40 A
3 SAM (signal acquisition
and actuation module)/
SRB (fuse and relay
module)
80 A
4 Auxiliary battery/
retarder
Rear-compartment air-
conditioning system
150 A
80 A
No. Consumer Fuse
rating
5 Terminal 30 pre-fuse
boxes, SAM (signal
acquisition and
actuation module)/SRB
(fuse and relay module)
150 A
6 Connection point on the
base of the seat
Bridge
7 Passenger compartment
air-conditioning system
80 A
PTC heater booster 150 A
6
Fuses supplement
