14.1. CHOOSING THE CORRECT ADAPTOR PLATES
A rule of thumb is that the adaptor plate must be at least 0.2 mm larger than the fiber.
Example: If the fiber is 1.1 mm, choose a 1.3 mm adaptor plate.

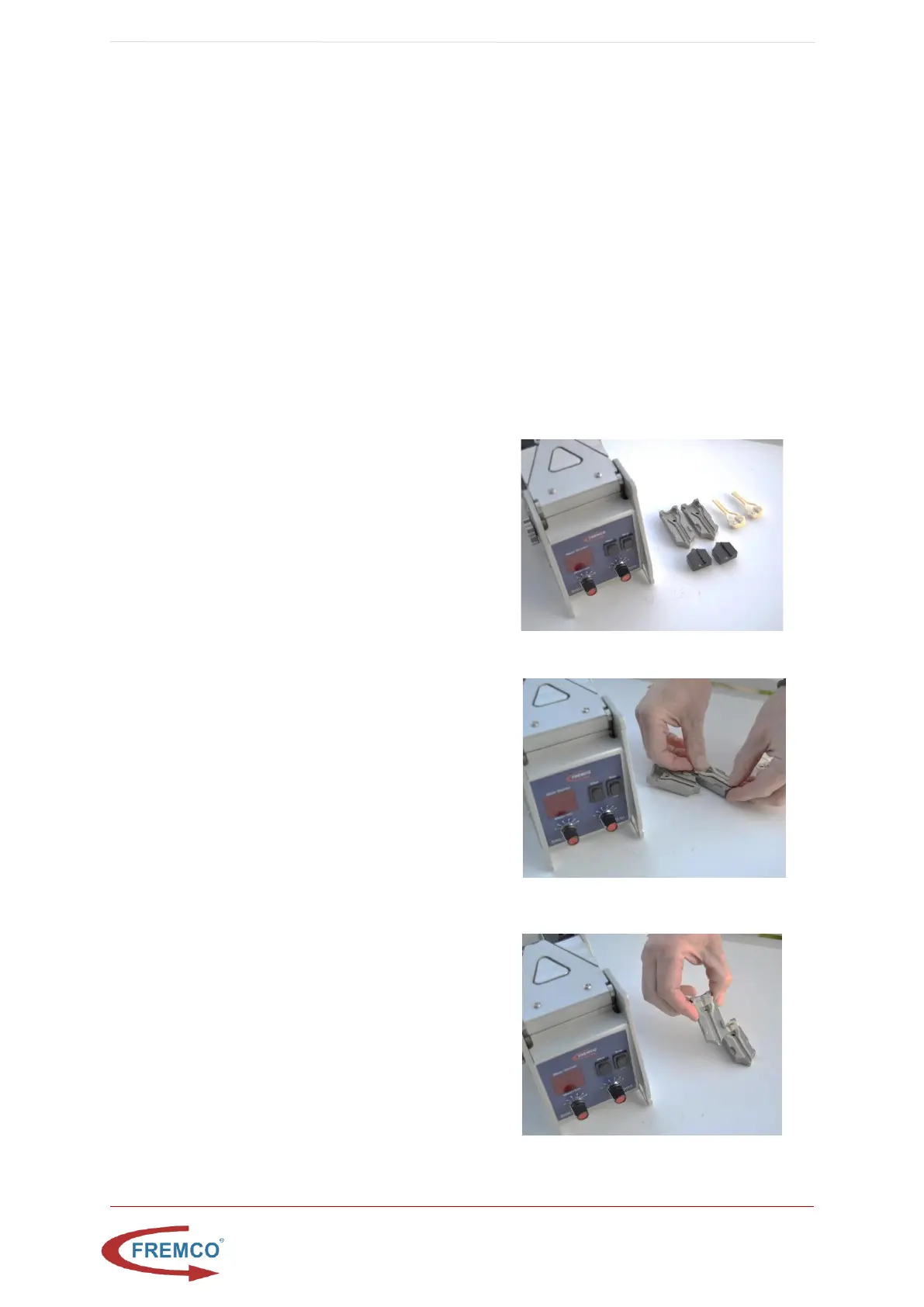

14.2. PHOTO GUIDE, CHANGING ADAPTOR PLATES
Preparation of adaptor kit for correct fiber and duct size
• Choose the correct size of adaptor plate to suit
the fiber
• Choose the correct size of duct adaptor to suit
the duct.
• For NanoFlow MAX always use adaptor plates
and steel drive wheel marked with “MAX”
• Mount duct adaptors in both adaptor plates.
• Carefully press in the duct adaptors.
• Check that the position of the duct adaptors is
correct. They must fit completely towards the
bottom of the adaptor plates.
• The adaptor plates are now ready for mounting in
the NanoFlow MAX.
