Frick RWF 134 - Wiring Harness for Internal Boards and Panels; Wiring Harness - Internal Analog Board #1

RWF ROTARY SCREW COMPRESSOR UNITS
MAINTENANCE
S70-600 IOM
Page 43
CAV NO. WIRE NO.
A YY2-17
B YY2-2
C YY1-16
D YY1-2
E YY3-15
F YY3-2
G YY4-14
H YY4-2
J HTR-106
K HTR-102
L HTR-107
M HTR-102
N HTR-108
P HTR-102
CAV NO. WIRE NO.
1 1.1.1
2 1.1.2
3 G-1
4 1.1.4
5 1.1.5
6 1.2.1
7 1.2.2
8 G-2
9 1.2.4
10 1.2.5
11 1.3.4
12 1.3.5
13 1.3.6
14 1.4.1
15 1.4.2
16 1.4.3
17 1.4.4
18 1.4.5
19 1.4.6
20 1.5.1
21 1.5.2
22 1.5.3
23 1.7.4
24 1.7.5
25 1.7.6
26 G-3
27 1.8.1
28 1.8.3
29 1.8.2
30 1001
31 1000
32 1002
33 SEAL PLUG

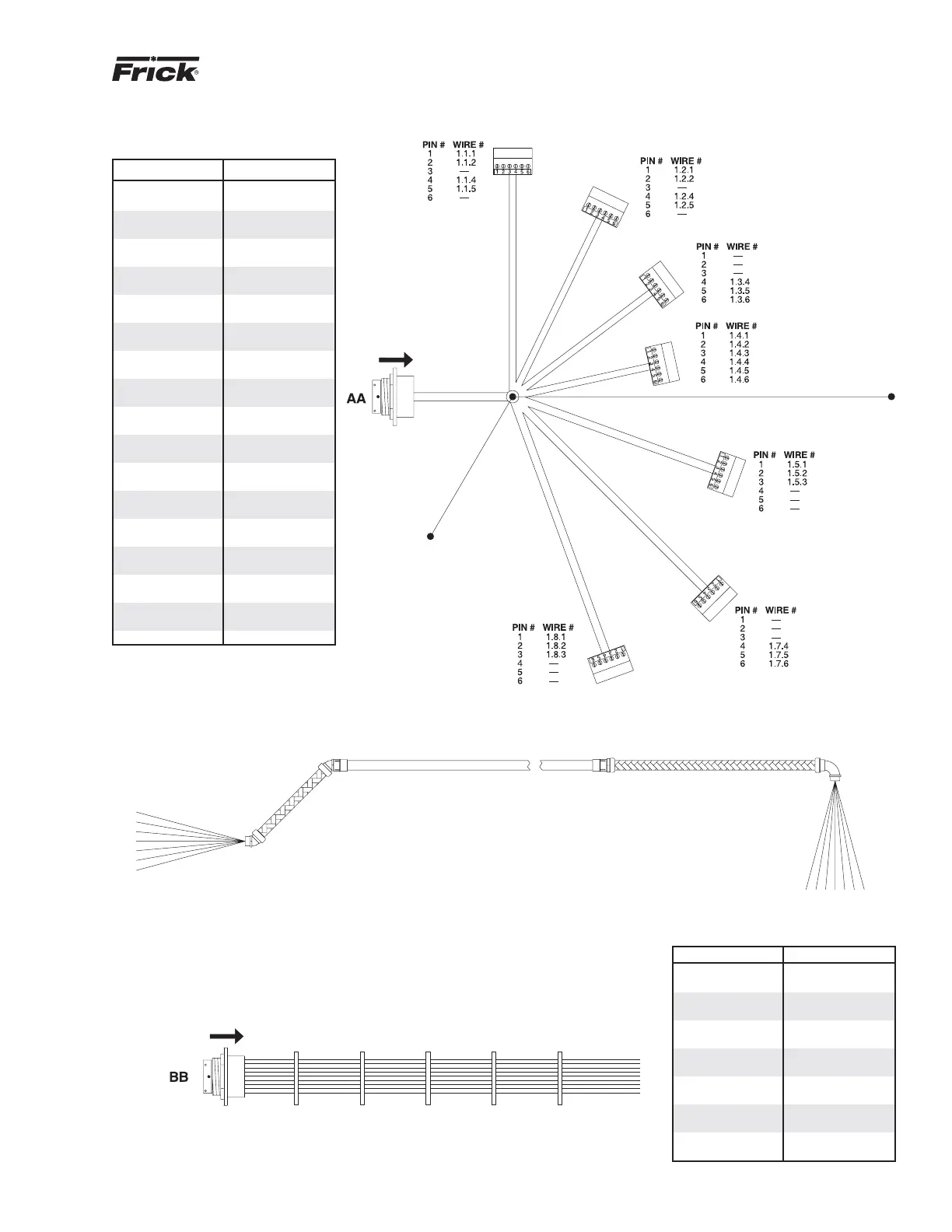

WIRING HARNESS - Internal Analog Board #1
WIRING HARNESS - AC Conduit - Quantum to DBS Panel
WIRING HARNESS - Internal AC to Heaters and Valves
