Friedman IR-X User Manual

10

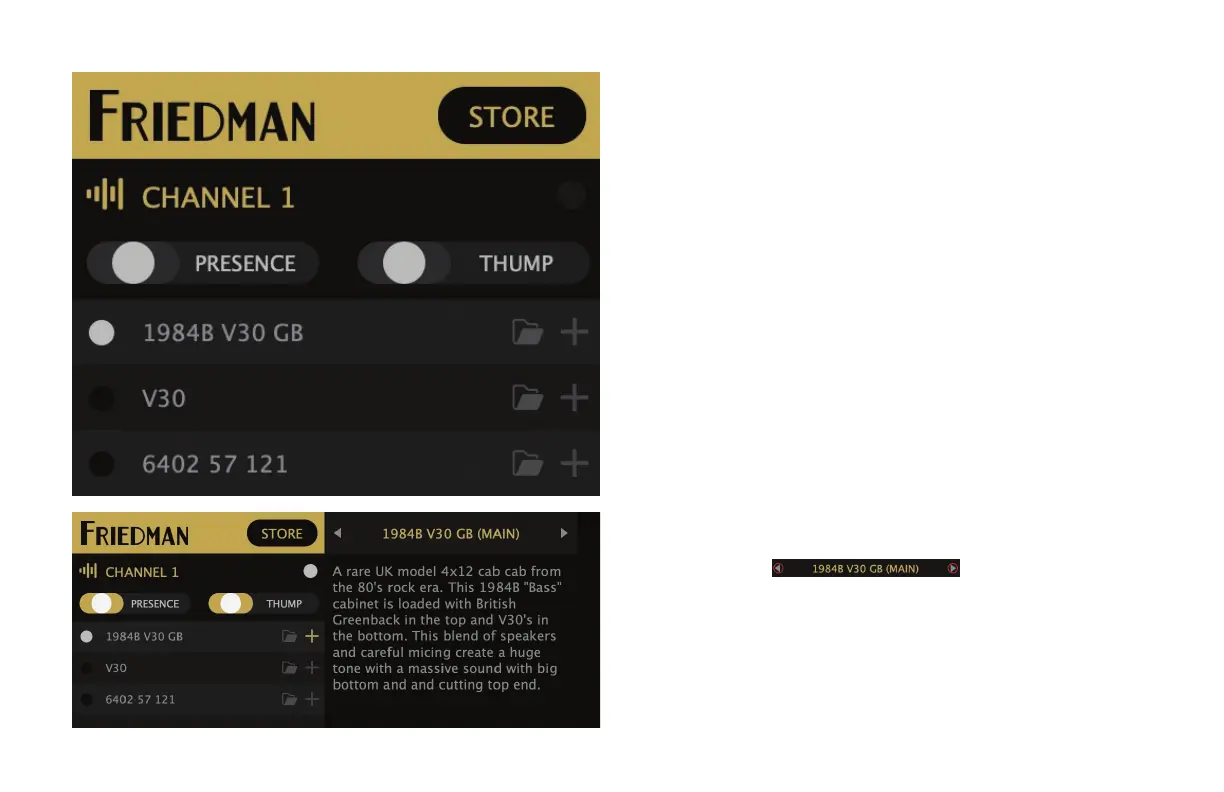

SIDE PANEL CONTROLS (SOFTWARE)
• STORE button will store all the changes made to all presets
inside the unit. MAKE SURE TO STORE ANY CHANGE before
powering down IR-X.
• PRESENCE (PER CHANNEL) is a 3-way toggle selector to
program the amount of presence for the power amp simulation
in the DI output.
• THUMP (PER CHANNEL) is a 3-way toggle selector for
programming the amount of thump resonance to the power
amp simulation in the DI output.
• IR SELECTOR (PER CHANNEL) lets you select one of 3
pre-loaded IRs for the selected channel.
• IR LOADING (PER SLOT) The Folder icon lets you load your
preferred IR by simply navigating to your IR le location and
selecting it. Supported formats are WAV 44.1K to 96K.
• ADDITIONAL INCLUDED IR SELECTION (PER SLOT) The Plus
(+) icon will open the IR selector window. Scroll through the
additional IRs preloaded within the
software by clicking the arrows before or after the IR name.
Pressing the Plus (+) icon opens the IR selector window. Press
the SELECT button to use the current IR, or press AUDITION to
automatically load while scrolling the list.
Press the plus (+) icon to exit/close the IR selector window once
you’ve made your selection. Repeat these steps per available IR slot.

Friedman IR-X Specifications

General

Channels	2
Direct Output	Yes
Footswitch	Yes
Inputs	1/4" Instrument Input
Outputs	1/4" Output, XLR Output
Impulse Response	Yes
