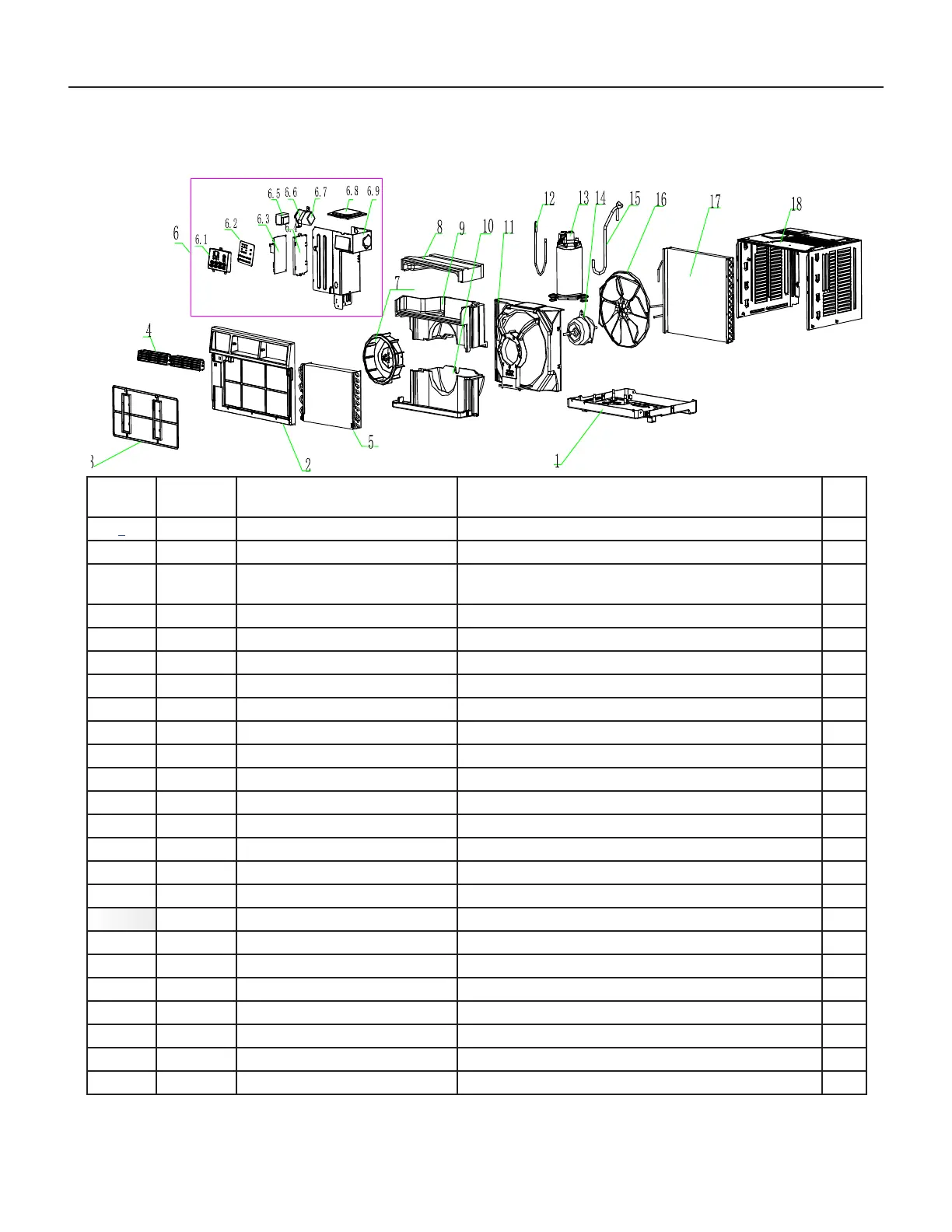

FIgure 904

PARTS CATALOG

Chill Premier Models: CCF05A10A CCF06A10A CCF08A10A

ITEM PART

NUMBER

PART DESCRIPTION USED ON MODEL QTY

1 68000216 210826698 - Base CCF05A10A, CCF06A10A 1

1A 68000145 210826701 - Base CCF08A10A 1

2 68000218 210755572 - Front Panel

Assembly

CCF05A10A, CCF06A10A, CCF08A10A 1

3 68000014 210736640A - Air Filter CCF05A10A, CCF06A10A, CCF08A10A 1

4 68000008 210755573 - Leading Flow Circle CCF05A10A, CCF06A10A, CCF08A10A 1

5 68000118 211241456 - Evaporator CCF05A10A, CCF06A10A 1

5A 68000146 211241581 - Evaporator CCF08A10A 1

6 68000119 214146283C - Electrical Assembly CCF05A10A, CCF06A10A 1

6A 68000147 214169039 - Electrical Assembly CCF08A10A 1

6.1 68000120 210736632 - Control Box panel CCF05A10A, CCF06A10A, CCF08A10A 1

6.2 68000029 210901461E - display pcb CCF05A10A, CCF06A10A, CCF08A10A 1

6.3 68000015 210901411N - Main pcb CCF05A10A, CCF06A10A, CCF08A10A 1

6.4 68000065 210736568 - Main pcb supporter CCF05A10A, CCF06A10A, CCF08A10A 1

6.5 68000040 210901721 - Transformer CCF05A10A, CCF06A10A, CCF08A10A 1

6.6 68000121 210826496 - Capacitor Strip CCF05A10A, CCF06A10A, CCF08A10A 1

6.7 68000009 210901420 - Capacitor CCF05A10A, CCF06A10A 1

6.7A 68000025 210901421 - Capacitor CCF08A10A 1

6.8 68000122 210826675 - Electrical Box Cover CCF05A10A, CCF06A10A 1

6.8A 68000148 210826680 - Electrical Box Cover CCF08A10A 1

7 68000010 210736634 - Centrifugal Fan CCF05A10A, CCF06A10A 1

7A 68000016 210736645 - Centrifugal Fan CCF08A10A 1

8 68000123 210736642A - Up Vortex Shell CCF05A10A, CCF06A10A 1

8A 68000150 210736646A - Up Vortex Shell CCF08A10A 1

9 68000124 210736643A - Middle Vortex Shell CCF05A10A, CCF06A10A 1
