52 PB
PARTS CATALOG
Chill Premier Models: CCW15B10A CCW18B30A
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 68000273 41106-003518_UW - Front Panel
Assembly
CCW15B10A, CCW18B30A 1
1.4 68000276 42008-000095 - Air Filter CCW15B10A, CCW18B30A 1
2 68000280 41504-000148_UW - Front Vortex Shell CCW15B10A, CCW18B30A 1
3 68000281 41214-001067_UW - Electrical Box Cover
supporter
CCW15B10A, CCW18B30A 1
4 68000282 41504-000099 - Water drainage pan CCW15B10A, CCW18B30A 1
5 68000283 41504-000055 - Top plate CCW15B10A, CCW18B30A 1
6 68000284 41504-000142_UW - Back Vortex Shell CCW15B10A, CCW18B30A 1
7 68000285 41504-000038 - Partition plate CCW15B10A, CCW18B30A 1
8 68000286 41509-000040 - left Adjustable shade rail CCW15B10A, CCW18B30A 1
9 68000287 41509-000014 - Adjustable shade CCW15B10A, CCW18B30A 1
10 68000288 41509-000026 - Up Adjustable shade rail CCW15B10A, CCW18B30A 1
11 68000289 41214-000913 - Adjustable shade rod CCW15B10A, CCW18B30A 1
12 68000290 41509-000030 - Right Adjustable shade
rail
CCW15B10A, CCW18B30A 1
13 68000291 41608-000012_UW - Cabinet CCW15B10A, CCW18B30A 1
14 68000292 92011-000770 - Condenser CCW15B10A, CCW18B30A 1
15 68000293 92007-003562 - cold tube CCW15B10A, CCW18B30A 1
16 68000294 41503-000008_UW - Propeller Fan CCW15B10A, CCW18B30A 1
17 68000295 41706-000002_UW - Back Surround Plate
Assembly
CCW15B10A, CCW18B30A 1
18 68000320 22001-000165_UW - Fan Motor CCW15B10A, CCW18B30A 1
19 68000299 41503-000009_UW - Centrifugal Fan CCW15B10A, CCW18B30A 1
20 68000300 41214-000857 - Pipe Cover (four-way) CCW15B10A, CCW18B30A 1

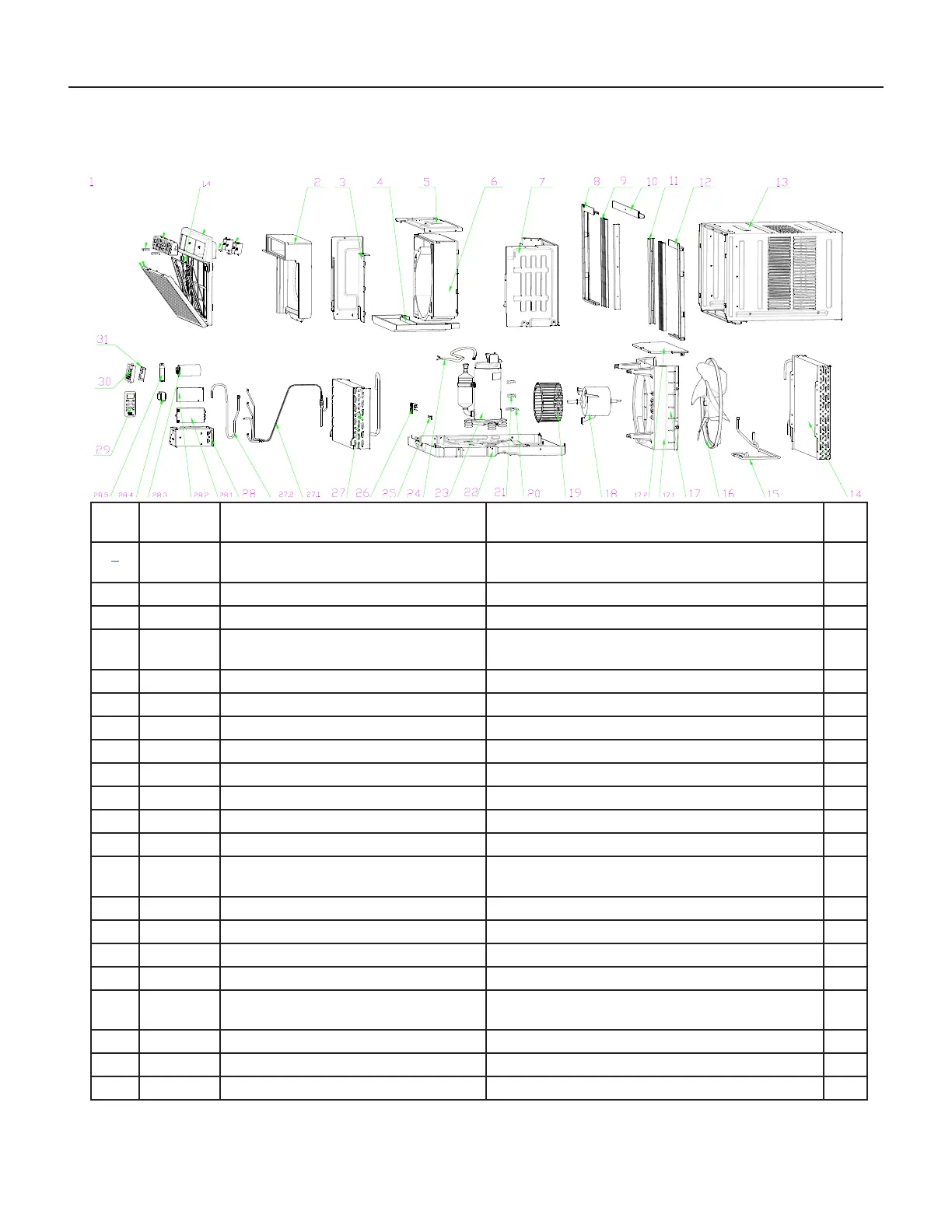

FIgure 902
To Next Page
