59 PB

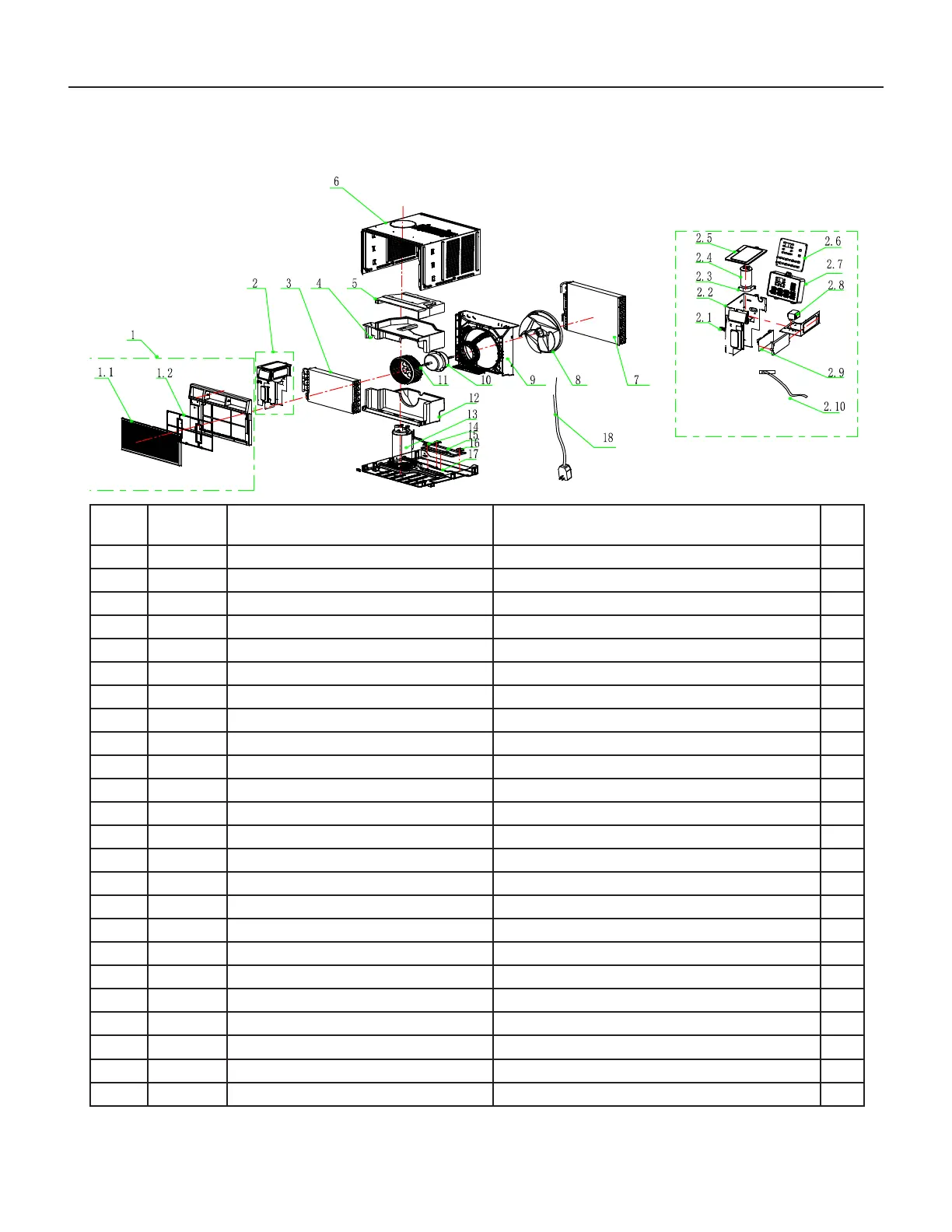

FIgure 905

PARTS CATALOG

Chill Premier Models: CCF10A10A CCF12A10A

ITEM PART

NUMBER

PART DESCRIPTION USED ON MODEL QTY

1 68000160 214146537B - Front Panel Assembly CCF10A10A, CCF12A10A 1

1.1 68000024 210755514 - Intake grille CCF10A10A, CCF12A10A 1

1.2 68000027 210736617A - Air Filter CCF10A10A, CCF12A10A 1

2 68000161 214146589D - Electrical Assembly CCF10A10A, CCF12A10A 1

2.1 68000162 210736672 - Cable Clamp CCF10A10A, CCF12A10A 1

2.2 68000164 210826720 - Electrical Box Assembly CCF10A10A, CCF12A10A 1

2.3 68000121 210826496 - Capacitor Strip CCF10A10A, CCF12A10A 1

2.4 68000025 210901421 - Capacitor CCF10A10A 1

2.4A 68000028 210901423 - Capacitor CCF12A10A 1

2.5 68000166 210826683 - Electrical Box Cover CCF12A10A 1

2.6 68000029 210901461E - Display PCB CCF10A10A, CCF12A10A 1

2.7 68000168 210736561 - Control Box panel CCF10A10A, CCF12A10A 1

2.8 68000040 210901721 - Transformer CCF10A10A, CCF12A10A 1

2.9 68000030 210901411P - Main pcb CCF10A10A, CCF12A10A 1

2.10 68000031 210901539 - Sensor Assembly CCF10A10A, CCF12A10A 1

3 68000170 211234445 - Evaporator CCF10A10A 1

3A 68000200 211234361 - Evaporator CCF12A10A 1

4 68000172 210736652A - Middle Vortex Shell CCF10A10A, CCF12A10A 1

5 68000174 210736651A - Up Vortex Shell CCF10A10A, CCF12A10A 1

6 68000176 214146541 - Cabinet CCF10A10A, CCF12A10A 1

7 68000178 211234443B - Condenser CCF10A10A 1

7A 68000202 211234345B - Condenser CCF12A10A 1

8 68000032 210736728 - Propeller Fan CCF10A10A, CCF12A10A 1

9 68000180 210736621A - Back Surround Plate CCF10A10A, CCF12A10A 1
