PARTS CATALOG
Chill Premier Models: CCW24B30A
ITEM PART
NUMBER
PART DESCRIPTION USED ON MODEL QTY
1 68000332 41106-003519_UW - Front Panel
Assembly
CCW24B30A 1
1.2 68000334 41507-000137 - Air Filter CCW24B30A 1
2 68000339 41205-000164 - Left Supporter CCW24B30A 1
3 68000340 41505-000229 - Electrical Box
Assembly
CCW24B30A 1
3.1 68000341 41507-000033 - Control Box panel CCW24B30A 1
3.2 68000342 31502-000026 - Display PCB CCW24B30A 1
3.3 68000328 10502-100034_UW - Transformer CCW24B30A 1
3.4 68000189 42001-000027 - Capacitor Strip CCW24B30A 1
3.5 68000343 22003-000006_UW - Compressor
Capacitor
CCW24B30A 1
3.6 68000344 10303-100018_UW - Fan Motor
Capacitor
CCW24B30A 1
3.7 68000326 31502-000006_UW - Main pcb CCW24B30A 1
3.8 68000310 41214-000877_UW - Main pcb
supporter
CCW24B30A 1
3.9 68000345 41505-000232 - Electrical Box CCW24B30A 1
3.1 68000322 42001-000058 - Cable Clamp CCW24B30A 1
4 68000346 41504-000056 - Top Cover CCW24B30A 1
5 68000347 41504-000051 - Back Surround
Cover Plate
CCW24B30A 1
6 68000348 22001-000167_UW - Fan Motor CCW24B30A 1
7 68000349 41504-000045_UW - Back
Surround Plate
CCW24B30A 1
8 68000294 41503-000008_UW - Propeller
Fan
CCW24B30A 1
9 68000350 92011-000773 - Condenser CCW24B30A 1

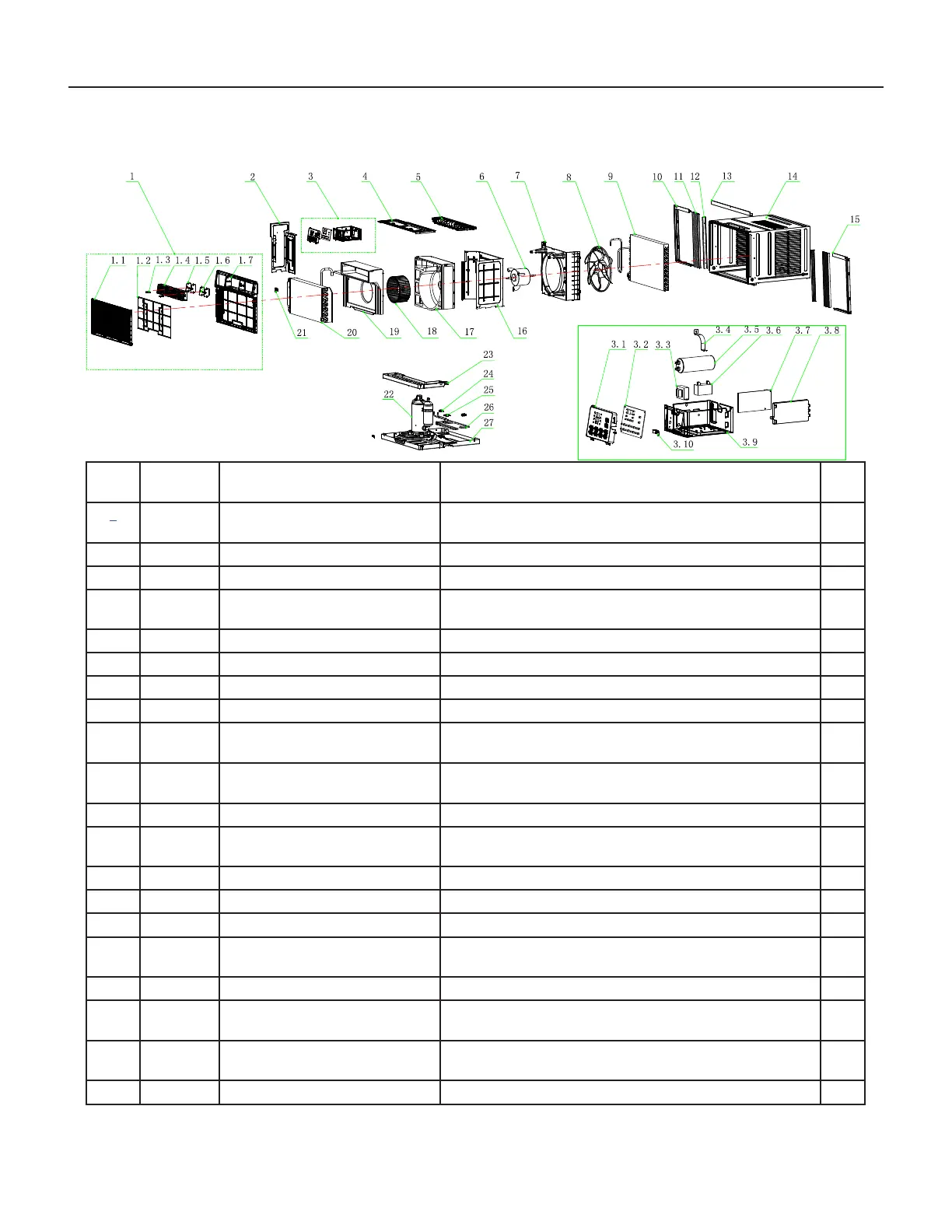

FIgure 903
