13 PB

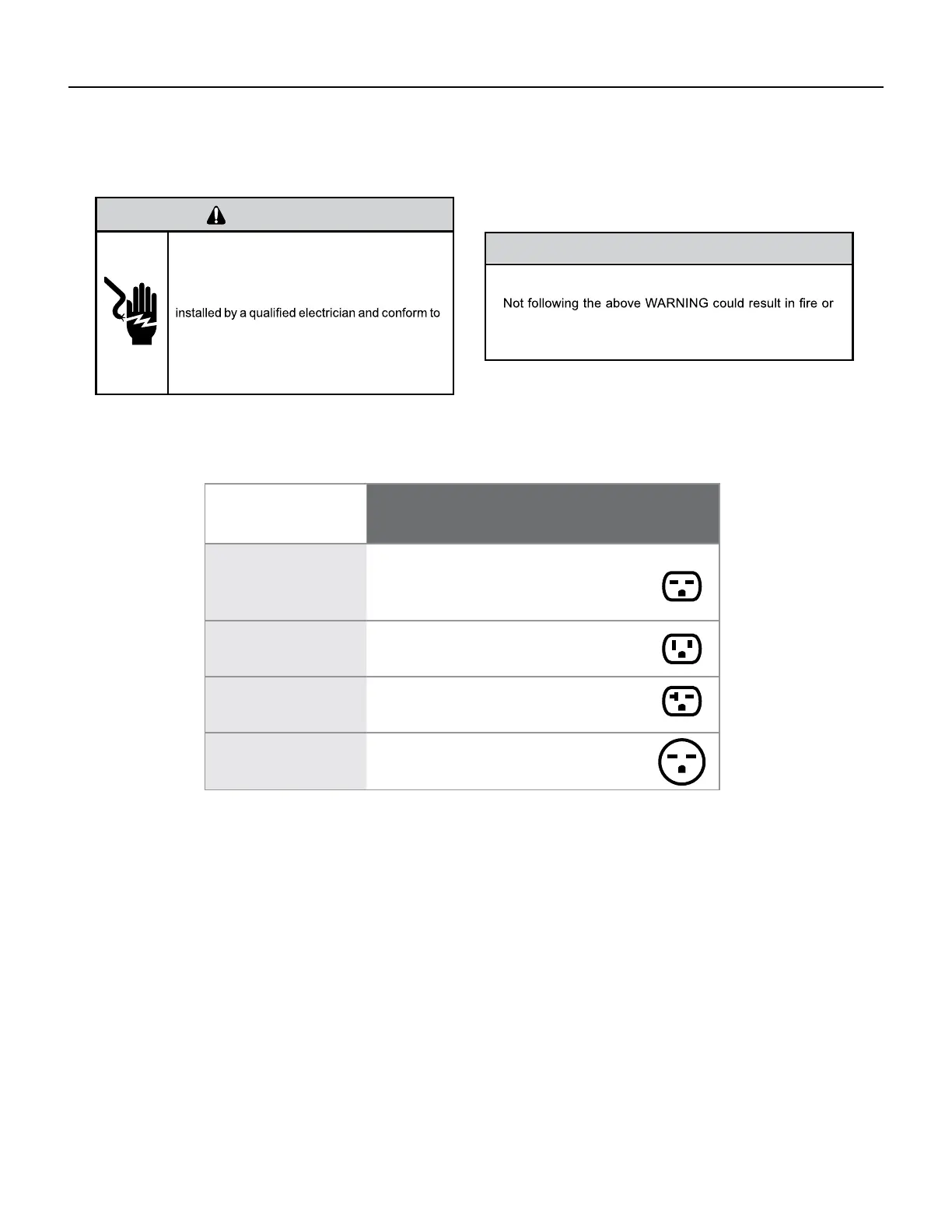

SPECIFICATIONS
Electrical Data
WARNING
ELECTRIC SHOCK HAZARD
Turn off electric power before service or
installation.
All electrical connections and wiring MUST be
the National Electrical Code and all local codes
which have jurisdiction.
Failure to do so can result in personal injury or
death.
NOTICE
FIRE HAZARD
electically unsafe conditions which could cause moderate
or serious property damage.
Read, understand and follow the above warning.
Circuit Rating/ Breaker/ power cord/ wall Receptacle
Model
Circuit Rating
Breaker or
T-D Fuse
Plug Face
(NEMA#)
Power Cord
Length (ft.)
Required Wall
Receptacle
NEMA NO.
Wall Outlet
Appearance
KCS08A10, KCS10A10, KCS12A10
KCS14A10, KHS10A10, and
KCM14A10.
125V - 15A 5 - 15P 6
5-15R
KCS12A30, KCS16A30,
KCM18A30, and KCM21A30.
250V - 15A 6 - 15P 6
6-15R
KES12A33, KES16A33,
KHS12A33, KCL24A30, and
KCL28A30.
250V - 20A 6 - 20P 6
6-20R
KEM18A34, KHL24A35,
KHM18A34A, KCL36A30,.
KEL24A35, and KEL36A35.
250V - 30A 6 - 30P 6
6-30R
Wire Size - Use ONLY wiring size recommended by the National Electric Code (NEC) for single outlet branch
circuit.
Fuse/ Circuit Breaker - Use ONLY the correct HACR type and size fuse/circuit breaker. Read electrical ratings on
unit’s rating plate. Proper circuit protection is the responsibiity of the homeowner.
Grounding - Unit MUST be grounded from branch circuit through service cord to unit, or through separate ground
wire provided on permanently connected units. Be sure that branch circuit or general purpose outlet is grounded.
Receptacle - The eld supplied outlet must match plug on service cord and be within reach of service cord. Do
NOT alter the service cord or plug. Do NOT use an extension cord. Refer to the table above for proper receptacle
and fuse type.
Figure 206 (Circuit Breaker / Plug / Receptacle / Cord Rating)
