Friedrich MC24Y3J - Air Flow; Auto Swing (Left & Right); Auto Swing (up & Down); Chaos Swing (Up;Down)

- 14 -
Only for training and service purposes
2. Air flow

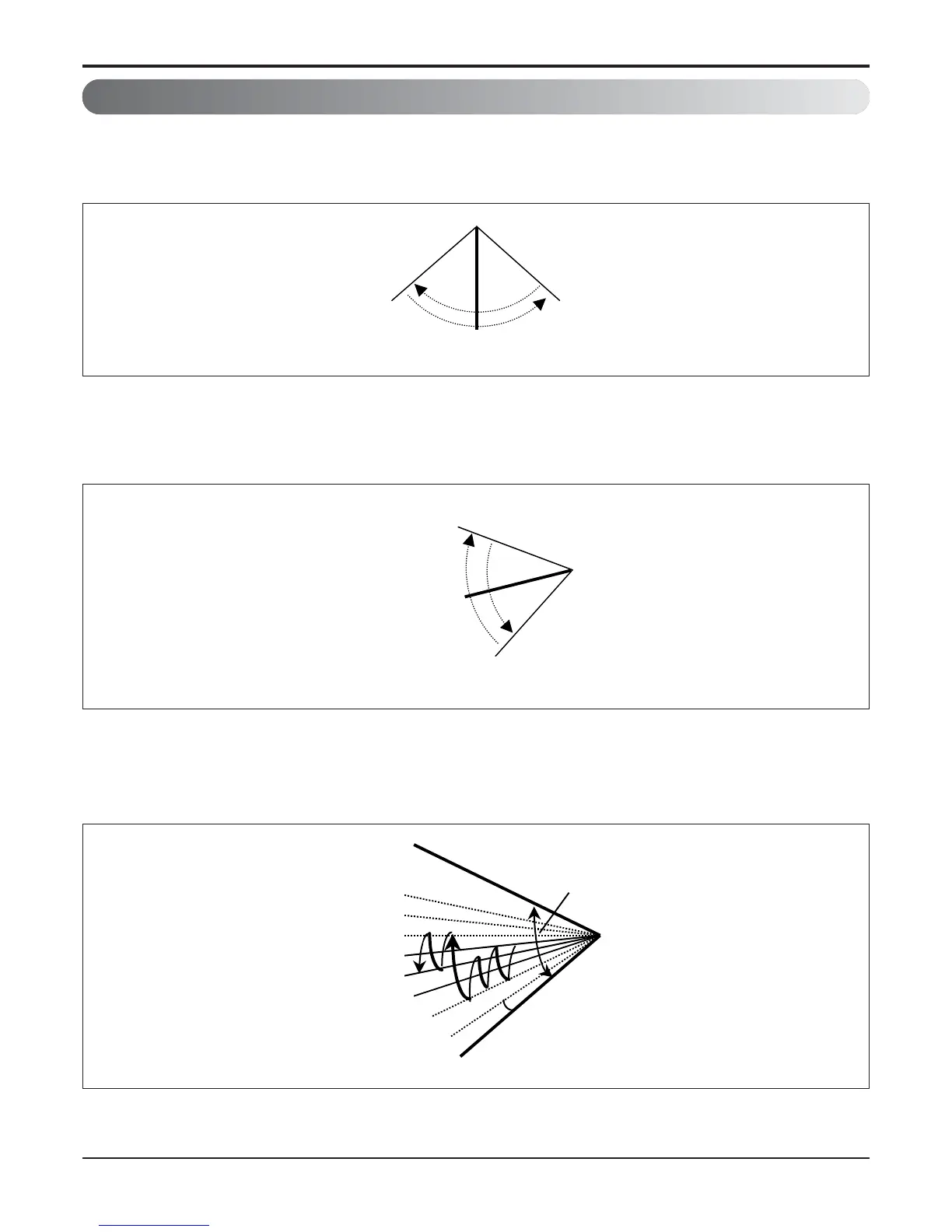

2.1 Auto swing (left & right)
RightLeft
110° ~ 120°
Open
Close
110° ~ 120°
Mode2
Mode3
Mode4
Mode5
Mode6
Mode7
Mode8
Mode9
OPEN
CLOSED
7~8°
110~120°
• By the horizontal airflow direction control key input, the left/right louver automatically operates with the auto swing or it
is fixed to the desired direction.
2.2 Auto swing (up & down)
• By the auto swing key input, the upper/lower vane automatically operates with the auto swing or it is fixed to the
desired direction.
2.3 Natural wind swing (up/down)
•
By the natural wind swing key input, the upper/lower vane automatically operates with the natural wind swing or it is
fixed to the desired direction.
