920-061-05(10-04)

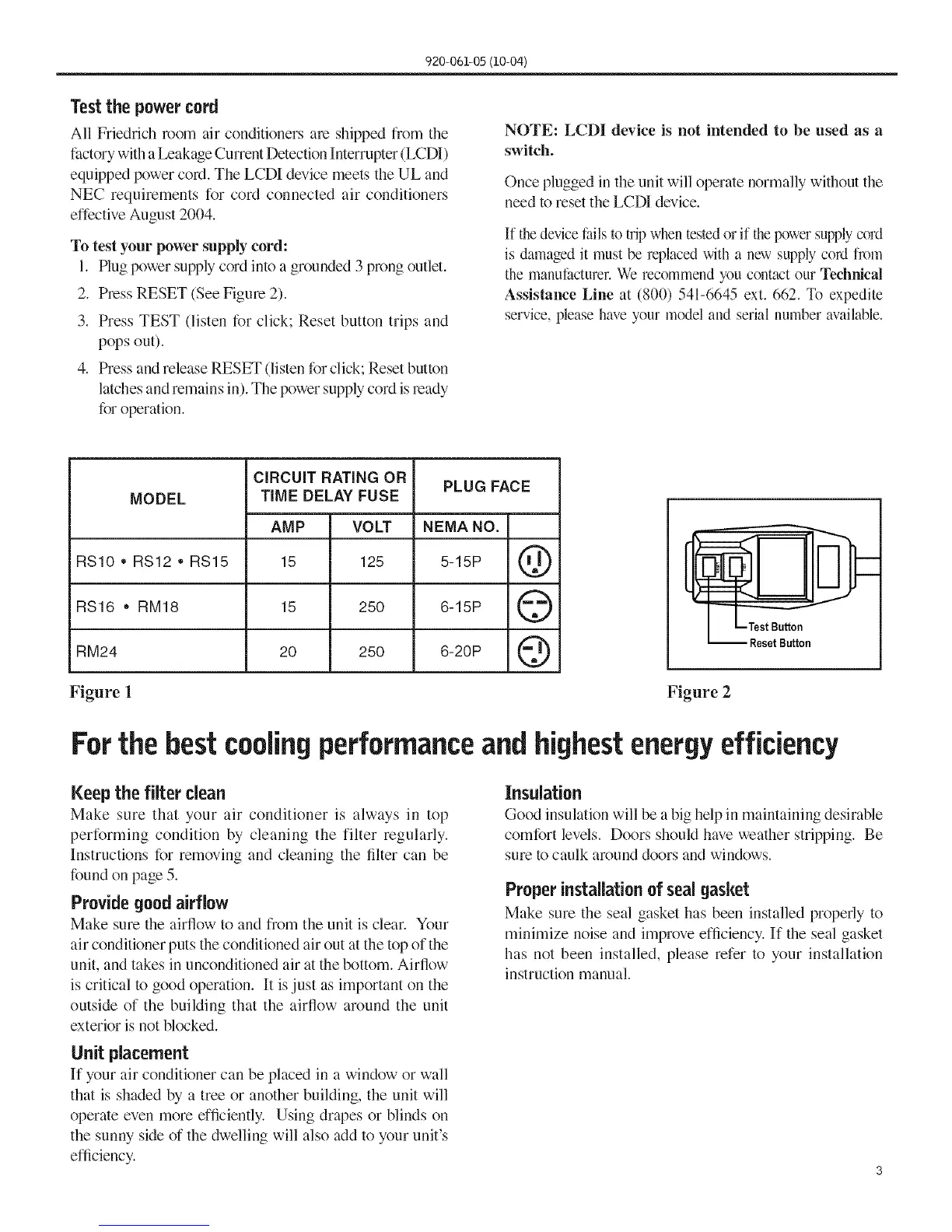

Test the power cord
All Friedrich room air conditioners are shipped from tile
factory with a Leakage Current Detection Interrupter (LCDI)
equipped power cord. The LCDI device meets the UL and
NEC requirements for cord connected air conditioners
effective August 2004.
To test your power supply cord:
1. Plug power supply cord into a grounded 3 prong outlet.
2. Press RESET (See Figure 2).
3. Press TEST (listen for click; Reset button trips and
pops out).
4. Press and release RESET (listen for click; Reset button
latches and remains in). The power supply cord is ready
for operation.
NOTE: LCDI device is not intended to be used as a
switch.
Once plugged in the unit will operate normally without the
need to reset the LCDI device.
If the device lhils to trip when tested or if the power supply cord
is damaged it must be replaced with a new supply cord lh)m
the manuthcturer. We recommend you contact our Technical
Assistance Line at (800) 541-6645 ext. 662. To expedite
service, please have your model and serial number available.
MODEL
PLUG FACE
CiRCUiT RATING OR
TiME DELAY FUSE
AMP VOLT
15 125
15 250
20 250
NEMA NO.
RS10 • RS12 • RS15 5-15P @
RS16 • RM18 6-15P (_
RM24 6-20P Q
Figure 1
-- ResetButton
Figure 2
Forthe bestcoolingperformanceandhighest energy efficiency
Keepthe filter clean
Make sure that your air conditioner is always in top
performing condition by cleaning the filter regularly.
Instructions for removing and cleaning the filter can be
found on page 5.
Providegoodairflow
Make sure the airflow to and from the unit is clear. Your
air conditioner puts the conditioned air out at the top of the
uniL and takes in unconditioned air at the bottom. Airflow
is critical to good operation. It is just as important on the
outside of the building that the airflow around the unit
exterior is not blocked.
Unit placement
If your air conditioner can be placed in a window or wall
that is shaded by a tree or another building, the unit will
operate even more efficiently. Using drapes or blinds on
the sunny side of the dwelling will also add to your unit's
efficiency.
Insulation
Good insulation will be a big help in maintaining desirable
comfort levels. Doors should have weather stripping. Be
sure to caulk around doors and windows.
Properinstallationofsealgasket
Make sure the seal gasket has been installed properly to
minimize noise and improve efficiency. If the seal gasket
has not been installed, please refer to your installation
instruction manual.
