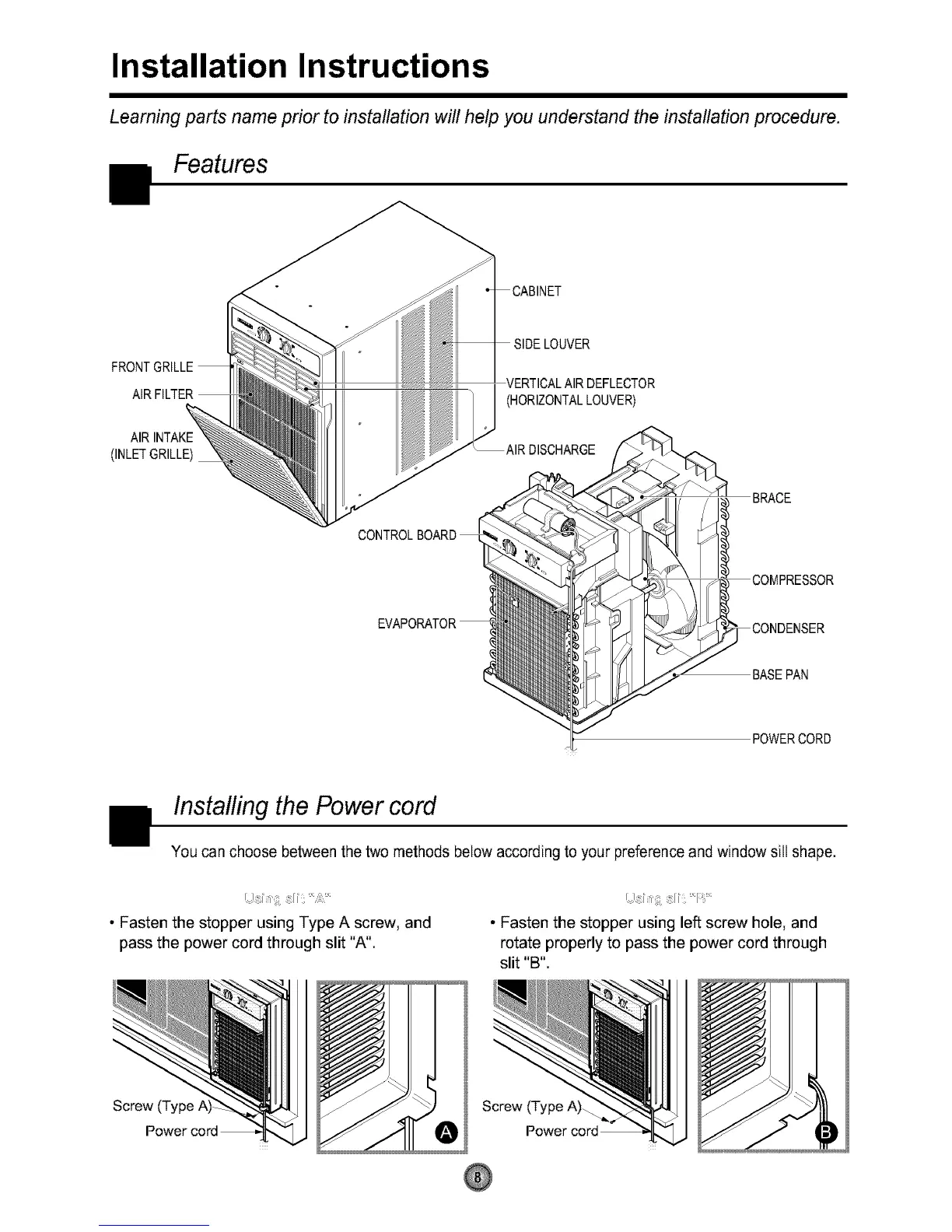

Installation Instructions
Learning parts name prior to installation will help you understand the installation procedure.
Features
;ABINET
FRONT G
EVAP
LOUVER
VERTICALAIR DEFLECTOR
(HORIZONTALLOUVER)
BRACE
COMPRESSOR
CONDENSER
BASE PAN
POWERCORD
Installing the Power cord
You can choose between thetwo methodsbelowaccording to your preferenceand window sill shape.
LJ,:r_,!:;_,:It '"_,_,'....
• Fasten the stopper using Type A screw, and
pass the power cord through slit "A".
Screw (Type A
• Fasten the stopper using left screw hole, and
rotate properly to pass the power cord through
slit "B".
Screw (Type A).
,}
To Next Page
