Friedrich VERT-I-PAK Series Engineer's Manual

4

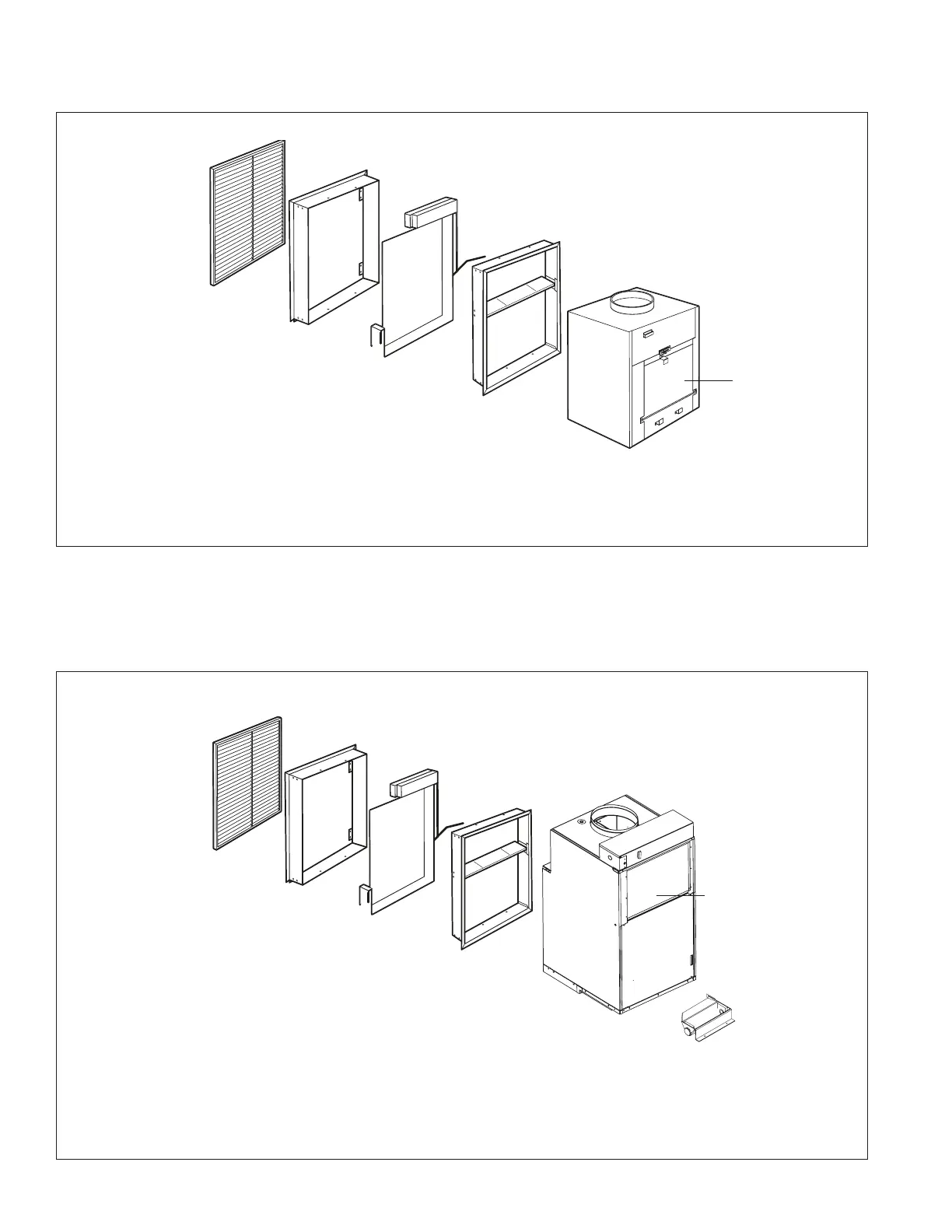

INSTALLATION OVERVIEW
Small chassis
Louver VPAL2/VPSC2
(Sold separately)
Exterior/
Outside Wall
Part B
Inside
Wall Plenum
Unit
Part A
Outside
Wall Plenum
Applicable Models
VHA09K
VHA09R
VHA12K
VHA12R
Filter (14” x 20”)
Louver VPAL2/VPSC2
(Sold separately)
Exterior/
Outside Wall
Part B
Inside
Wall Plenum
Part A
Outside
Wall Plenum
Large Chassis Unit
(Unit height 47”)
Drain Pan
required
(Sold separately)
Filter (14” x 20”)
VPAWP1-8 = 5 1/2" - 8" D x 24 1/8" W x 30 3/8" H
VPAWP1-14 = 8" - 14" D x 24 1/8" W x 30 3/8" H
INSTALLATION OVERVIEW
Large chassis
VPAWP1-8 = 5 1/2" - 8" D x 24 1/8" W x 30 3/8" H
VPAWP1-14 = 8" - 14" D x 24 1/8" W x 30 3/8" H
Applicable Models
VHA18K
VHA18R
VHA24K
VHA24R
