18 PB
SPECIFICATIONS

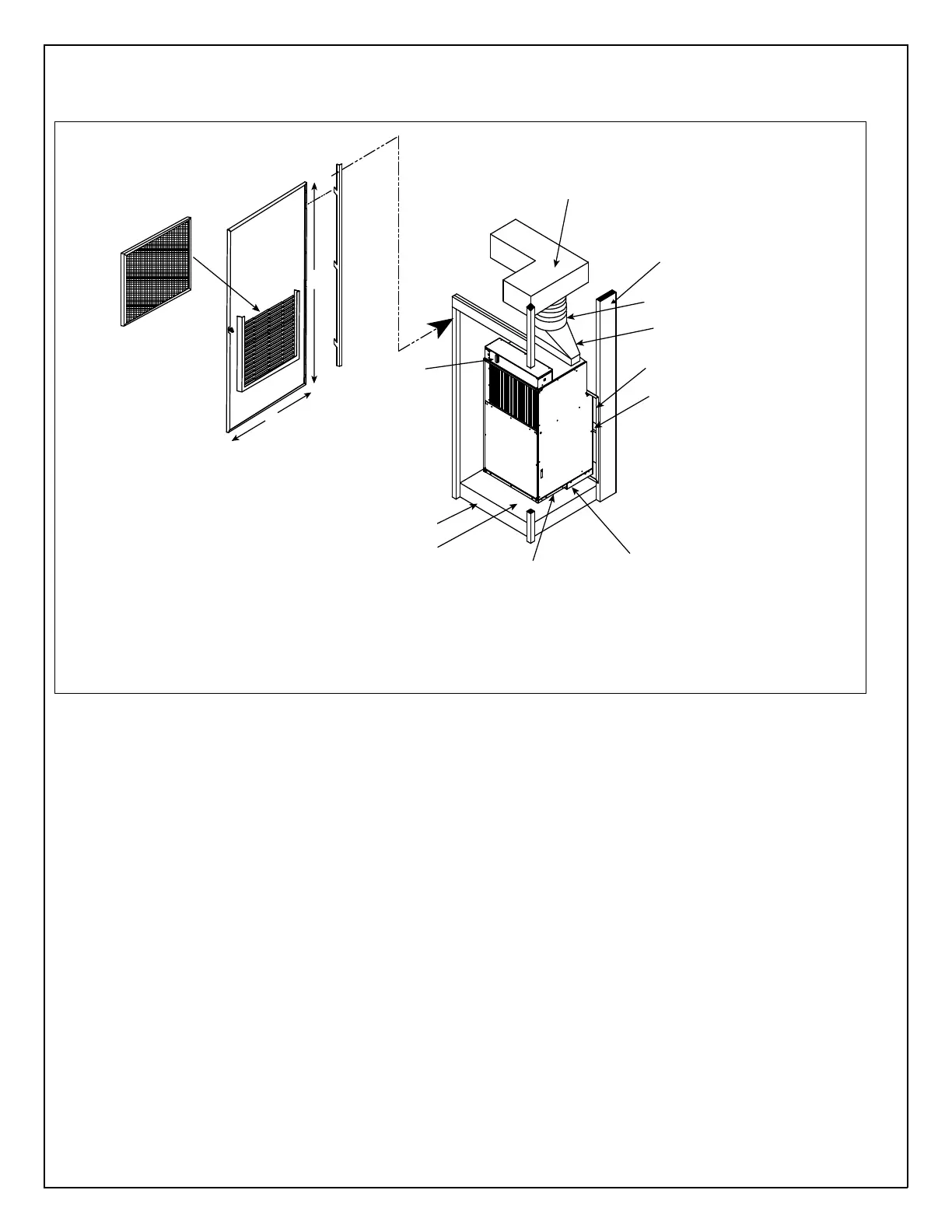

Closet View
13
Closet View
NOTE: It is recommended that 6” of clearance is provided on the side where the primary condensate is plumbed.
Exterior Wall
Flexible Ductwork
Rigid Ductwork
VPAWP1-8/1-14 Wall Plenum
Plenum
Divider
VPDP2 drain pan beneath
unit is required on all 18K
and 24K units.
Drain pan must be installed
prior to chassis installation
Chassis is shipped
with vibration isolators
installed
Optimal Clearance on
either sides minimum for
service and installation
Optional Platform
Field-supplied
Filter (25" x 20")
58"
29"
Transition Duct
VPRG4/VPRG4R
Access Panel & Return
Air Filter Grille
Power
Disconnect
