1.1
1.1 Perimeter Switch Location
Choose a location for the perimeter switch that is away from children’s reach and
sheltered from rain, sun, and sprinkler systems.
Tip: The garage inner wall is an ideal place to mount the perimeter switch.
1.2 Power Requirements

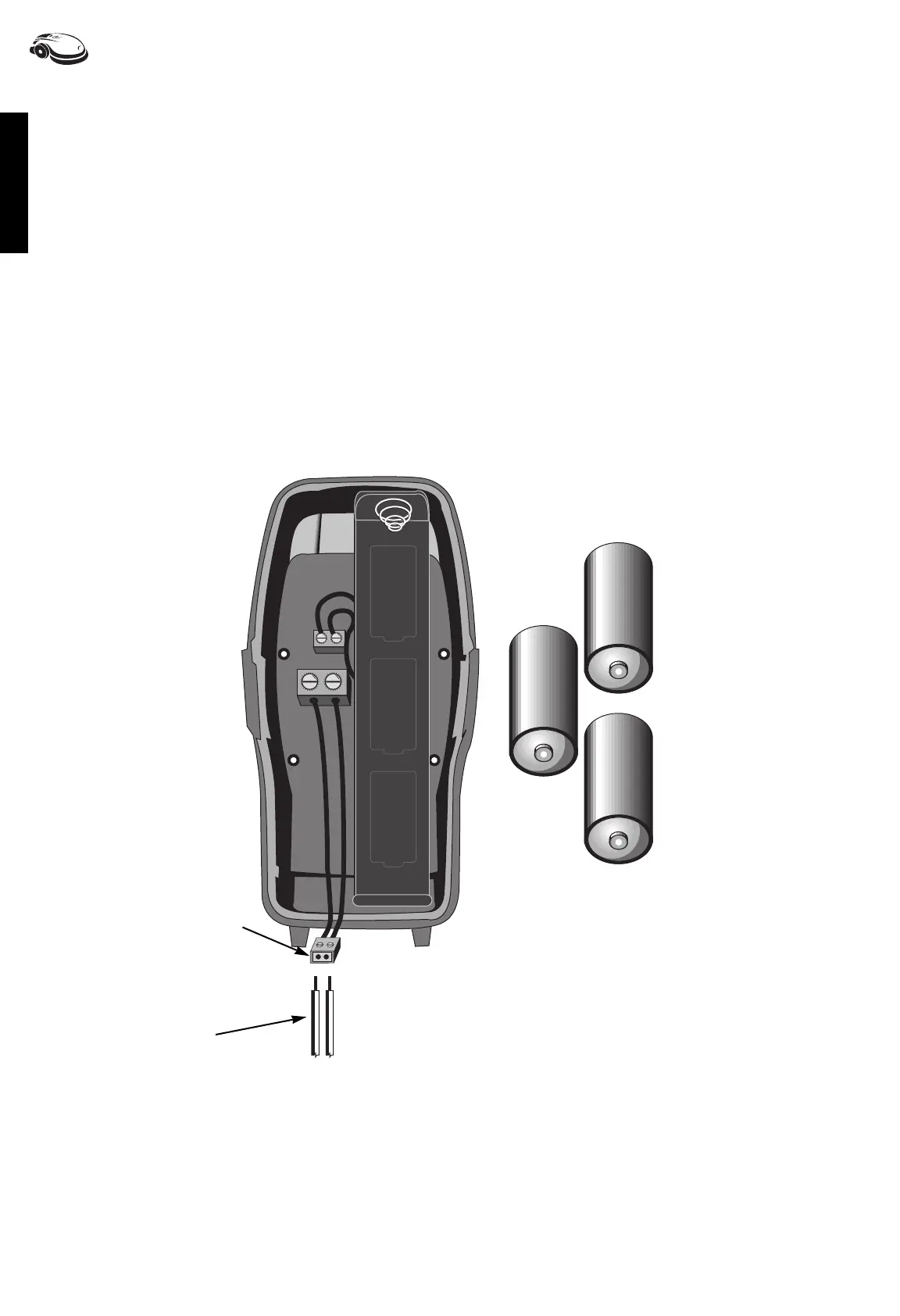

Open the perimeter switch box and insert 3 “C” batteries as shown (fig.1-1). Alkaline
batteries recommended.
1.3 Mounting the Perimeter Switch
Mount the perimeter switch on a wall using two (2) small screws.
Chapter 1 - Perimeter Switch Installation
Fig. 1-1
Chapter One
Perimeter wire
Fast Connector
Wires from
lawn
