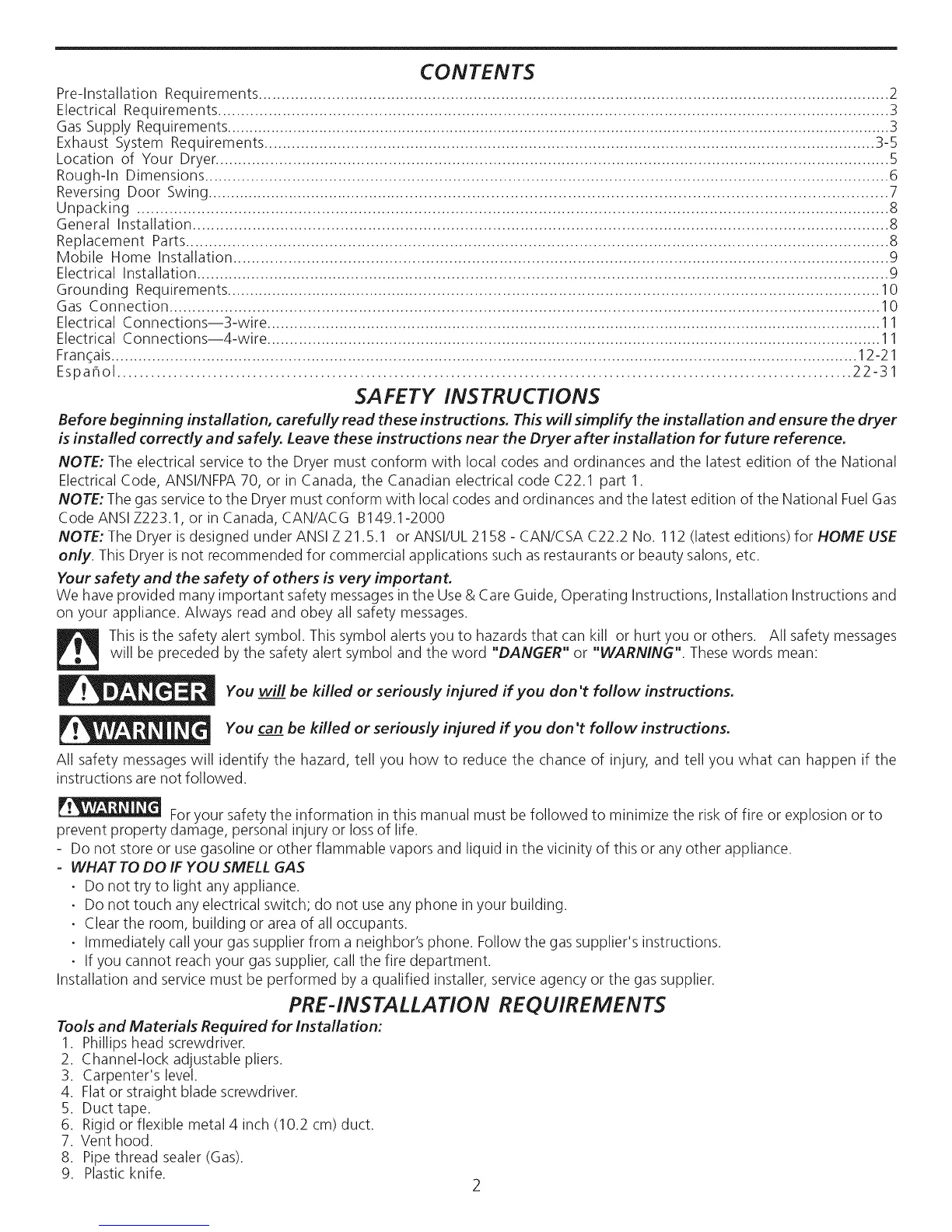

Frigidaire AGQ6700FE2 - English; Table of Contents; Pre-Lnstallation Requirements

CONTENTS
Pre-lnstallation Requirements .......................................................................................................................................... 2
Electrical Requirements .................................................................................................................................................. 3
Gas Supply Requirements ........................................................................................................................................................ 3
Exhaust System Requirements ...................................................................................................................................... 3-5
Location of Your Dryer.................................................................................................................................................... 5
Rough-in Dimensions ..................................................................................................................................................... 6
Reversing Door Swing ................................................................................................................................................. 7
Unpacking ................................................................................................................................................................... 8
General Installation ....................................................................................................................................................... 8
Replacement Parts........................................................................................................................................................ 8
Mobile Home Installation ............................................................................................................................................... 9
Electrical Installation ..................................................................................................................................................... 9
Grounding Requirements .............................................................................................................................................. 10
Gas Connection .......................................................................................................................................................... 10
Electrical Connections--3-wire ........................................................................................................................................ 11
Electrical Connections--4-wire ........................................................................................................................................ 11
Francais.................................................................................................................................................................... 12-21
Espahol .................................................................................................................................. 22-31
SAFETY INSTRUCTIONS
Before beginning installation, carefully read these instructions. This will simplify the installation and ensure the dryer
is installed correctly and safely. Leave these instructions near the Dryer after installation for future reference.
NOTE: The electrical service to the Dryer must conform with local codes and ordinances and the latest edition of the National
Electrical Code, ANSI/NFPA70, or in Canada, the Canadian electrical code C22.1 part 1.
NOTE: The gas serviceto the Dryer must conform with local codes and ordinances and the latest edition of the National Fuel Gas
Code ANSI Z223.1, or in Canada, CAN/ACG B149.1-2000
NOTE: The Dryer isdesigned under ANSI Z 21.5.1 or ANSI/UL 2158 - CAN/CSA C22.2 No. 112 (latest editions) for HOME USE
only. This Dryer isnot recommended for commercial applications such asrestaurants or beauty salons, etc.
Your safety and the safety of others is very important.
We have provided many important safety messages in the Use & Care Guide, Operating Instructions, Installation Instructions and
on your appliance. Always read and obey all safety messages.
This isthe safety alert symbol. This symbol alerts you to hazards that can kill or hurt you or others. All safety messages
will be preceded by the safety alert symbol and the word "DANGER" or "WARNING". These words mean:
_ You will be killed or seriously injured if you don't follow instructions.
You can be killed or seriously injured ff you don't follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can happen if the
instructions are not followed.
Foryour safety the information in this manual must be followed to minimize the risk of fire or explosion or to
prevent property damage, personal injury or loss of life.
Do not store or use gasoline or other flammable vapors and liquid in the vicinity of this or any other appliance.
WHAT TODO iF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
Clear the room, building or area of all occupants.
Immediately call your gassupplier from a neighbor's phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
PRE-INSTALLATION REQUIREMENTS
Tools and Materials Required for installation:
1. Phillips head screwdriver.
2. Channel-lock adjustable pliers.
3. Carpenter's level.
4. Flat or straight blade screwdriver.
5. Duct tape.
6. Rigid or flexible metal 4 inch (10.2 cm) duct.
7. Vent hood.
8. Pipe thread sealer (Gas).
9. Plastic knife.
