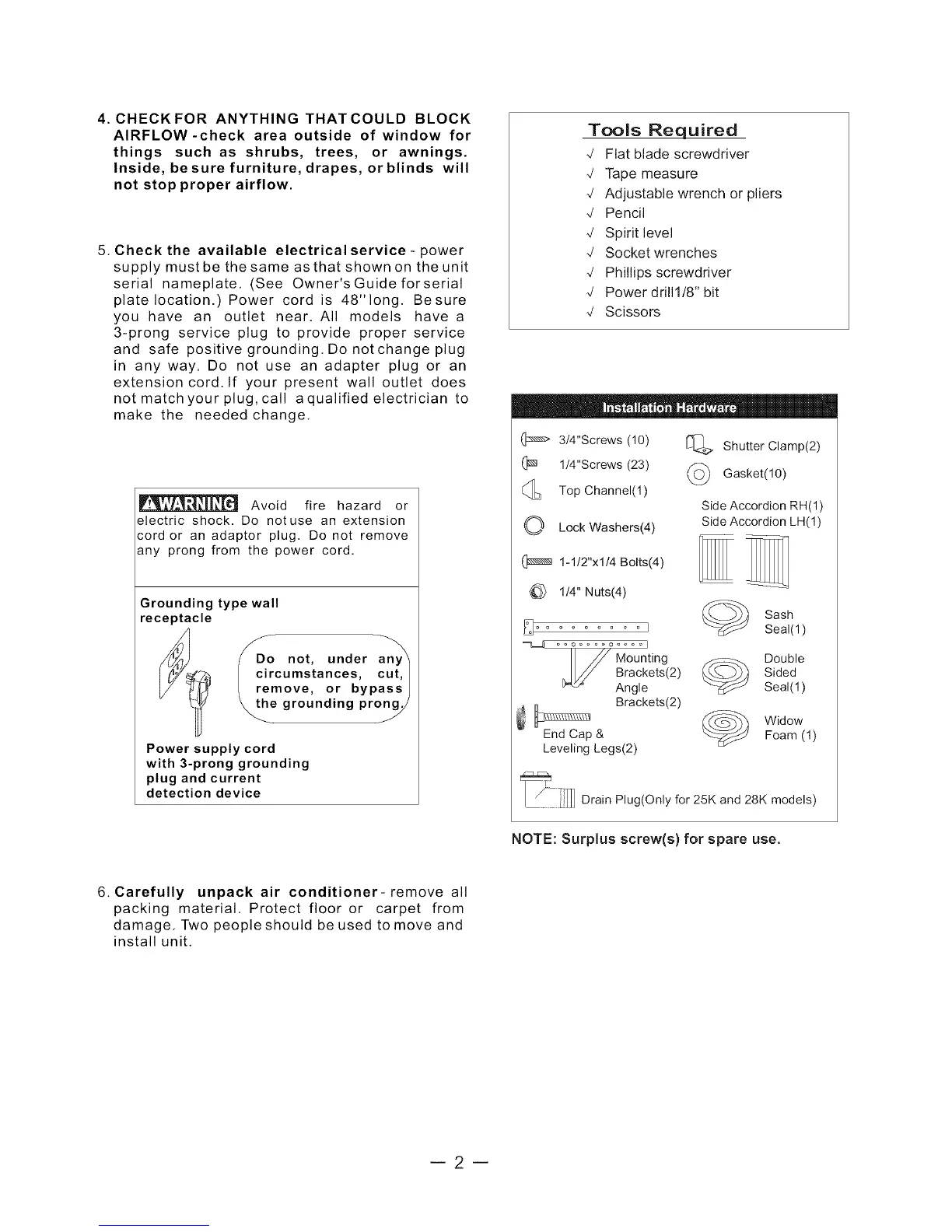

4. CHECKFOR ANYTHING THATCOULD BLOCK
AIRFLOW-check area outside of window for
things such as shrubs, trees, or awnings.
Inside, besure furniture, drapes, orblinds will
not stop proper airflow.
5. Check the available electrical service- power
supply must be the same as that shown on the unit
serial nameplate, (See Owner's Guideforserial
plate location.) Power cord is 48"long. Besure
you have an outlet near. All models have a
3-prong service plug to provide proper service
and safe positive grounding, Do notchange plug
in any way. Do not use an adapter plug or an
extension cord. If your present wall outlet does
not match your plug, call a qualified electrician to
make the needed change,
Avoid fire hazard or
electric shock. Do not use an extension
cord or an adaptor plug. Do not remove
any prong from the power cord.
Grounding type wall
receptacle
_DDo not, under an-n-_y
circumstances, cut,
/ remove, or bypass J
_e grounding pro_
Power supply cord
with 3-prong grounding
plug and current
detection device
Tools Required
,/ Flat blade screwdriver
,/ Tape measure
,/ Adjustable wrench or pliers
,/ Pencil
./ Spirit level
,/ Socket wrenches
d Phillips screwdriver
J Powerdrilll/8" bit
d Scissors
(]:ssssss>3/4"Screws (10) _ Shutter Clamp(2)
1/4"Screws (23) (_ Gasket(10)
[_ Top Channel(I)
Side Accordion RH(1)
O Lock Washers(4) Side Accordion LH(1)
(_ 1-1/2"xl/4 Bolts(4) _
@ 1/4" Nuts(4)
_o o o o o o o o o 7
ooooooooo_ool
[_ Mounting
Brackets(2)
Angle
racketsI2t
End Cap &
Leveling Legs(2)
Sash
Seal(l)
Double
Sided
Seal(l)
Widow
Foam (1)
Drain Plug(Only for 25K and 28K models)
NOTE: Surplus screw(s) for spare use.
6. Carefully unpack air conditioner- remove all
packing material. Protect floor or carpet from
damage, Two people should be used to move and
install unit,
