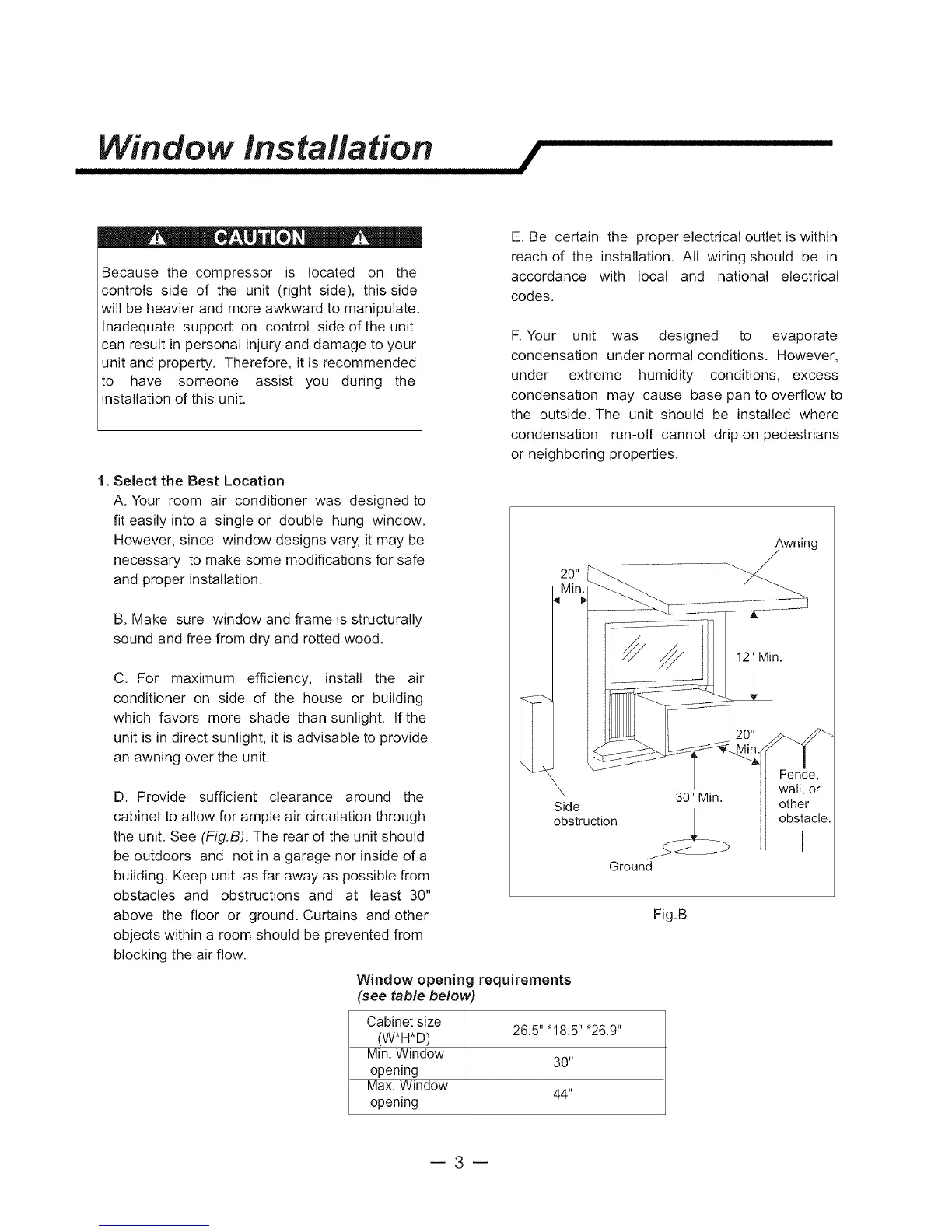

Window installation
!
Because the compressor is located on the
controls side of the unit (right side), this side
will be heavier and more awkward to manipulate.
Inadequate support on control side of the unit
can result in personal injury and damage to your
unit and property. Therefore, it is recommended
to have someone assist you during the
installation of this unit.
1. Select the Best Location
A. Your room air conditioner was designed to
fit easily into a single or double hung window.
However, since window designs vary, it may be
necessary to make some modifications for safe
and proper installation.
B. Make sure window and frame is structurally
sound and free from dry and rotted wood.
C. For maximum efficiency, install the air
conditioner on side of the house or building
which favors more shade than sunlight. If the
unit is in direct sunlight, it is advisable to provide
an awning over the unit.
D. Provide sufficient clearance around the
cabinet to allow for ample air circulation through
the unit. See (Fig.B). The rear of the unit should
be outdoors and not in a garage nor inside of a
building. Keep unit as far away as possible from
obstacles and obstructions and at least 30"
above the floor or ground. Curtains and other
objects within a room should be prevented from
blocking the air flow.
E. Be certain the proper electrical outlet is within
reach of the installation. All wiring should be in
accordance with local and national electrical
codes.
F. Your unit was designed to evaporate
condensation under normal conditions. However,
under extreme humidity conditions, excess
condensation may cause base pan to overflow to
the outside. The unit should be installed where
condensation run-off cannot drip on pedestrians
or neighboring properties.
Awning
Fence,
wall, or
30" Min.
Side other
obstruction obstacle,i
Ground
Fig.B
Window opening requirements
(see table below)
Cabinet size
26.5" "18.5" *26.9"
(W*H*D)
Min. Window
30"
opening
Max. Window
44"
opening
i3i
