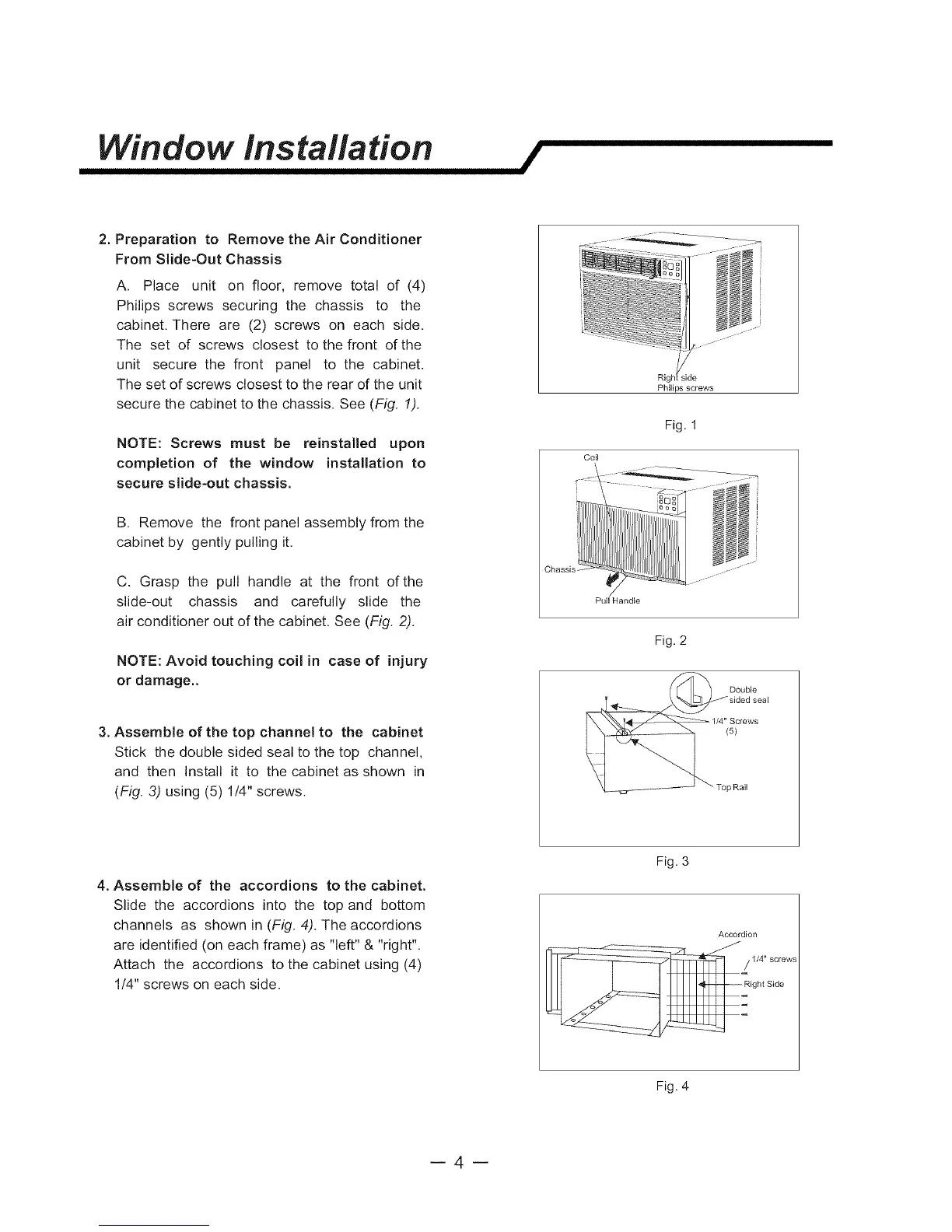

Window installation
!
2. Preparation to Remove the Air Conditioner
From Slide-Out Chassis
A. Place unit on floor, remove total of (4)
Philips screws securing the chassis to the
cabinet. There are (2) screws on each side.
The set of screws closest to the front of the
unit secure the front panel to the cabinet.
The set of screws closest to the rear of the unit
secure the cabinet to the chassis. See (Fig. 1).
NOTE: Screws must be reinstalled upon
completion of the window installation to
secure slide-out chassis.
B. Remove the front panel assembly from the
cabinet by gently pulling it.
C. Grasp the pull handle at the front of the
slide-out chassis and carefully slide the
air conditioner out of the cabinet. See (Fig. 2).
NOTE: Avoid touching coil in case of injury
or damage..
3. Assemble of the top channel to the cabinet
Stick the double sided seal to the top channel,
and then Install it to the cabinet as shown in
(Fig. 3) using (5) 1!4" screws.
de
Philips screws
Fig. 1
Coil
i
Chassis
Pull Handle
Fig. 2
Double
f sided seal
_ 1/4" Screws
_ Top Rail
4. Assemble of the accordions to the cabinet.
Slide the accordions into the top and bottom
channels as shown in (Fig. 4). The accordions
are identified (on each frame) as "left" & "right".
Attach the accordions to the cabinet using (4)
1/4" screws on each side.
Fig. 3
Accordion
/1/4" screws
Fig. 4
--4--
