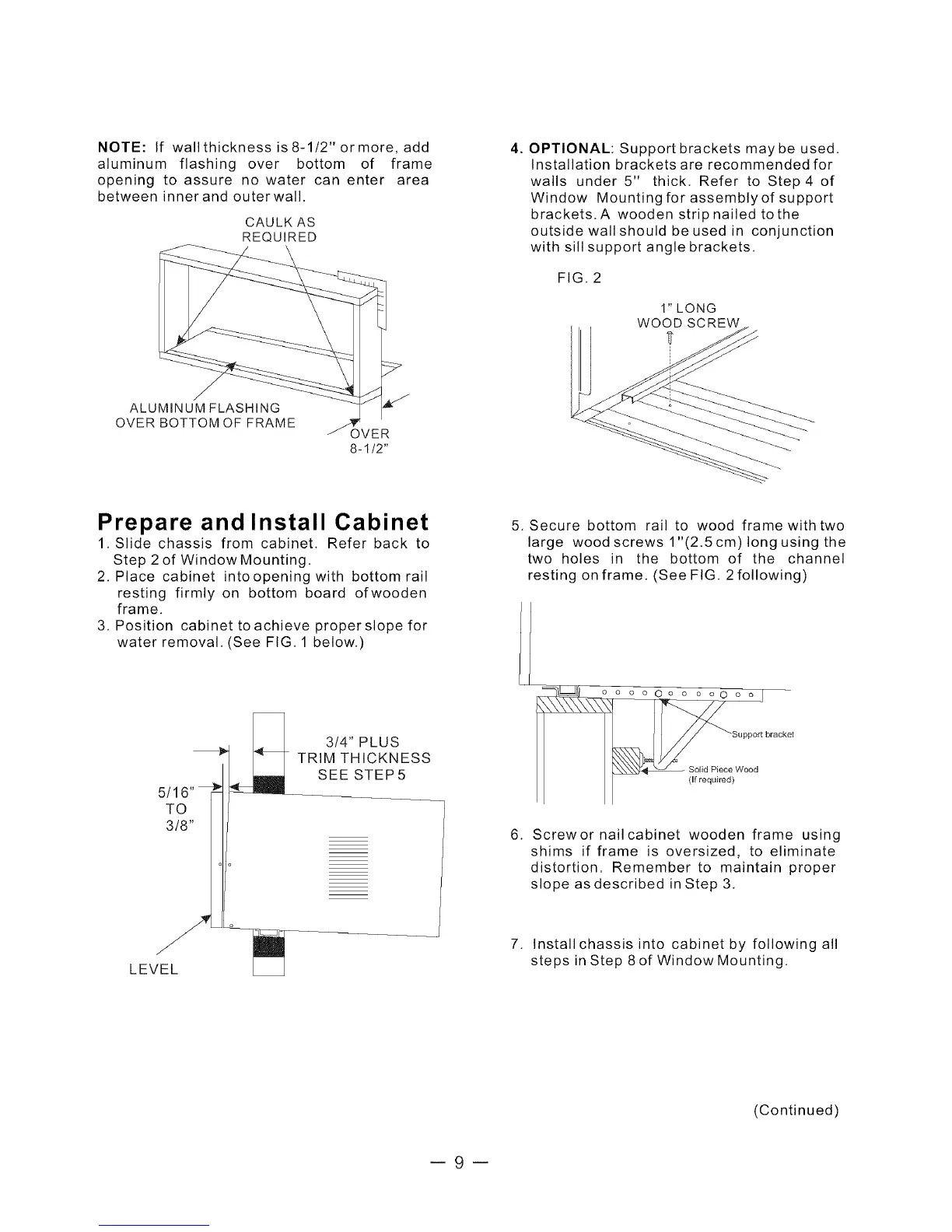

Frigidaire FAS157P1A1 - Prepare and Install Cabinet; Optional: Support brackets may be used

NOTE: If wallthickness is8-1/2" ormore, add
aluminum flashing over bottom of frame
opening to assure no water can enter area
between innerand outerwall.
CAULK AS
REQUIRED
4. OPTIONAL: Support brackets may be used.
Installation brackets are recommended for
walls under 5" thick. Refer to Step4 of
Window Mounting for assembly of support
brackets. A wooden strip nailed to the
outside wall should be used in conjunction
with sill support angle brackets,
FIG. 2
1" LONG
WOOD SCREW
ALUMINUM FLASHING
OVER BOTTOM OF FRAME
OVER
8-1/2"
Prepare and Install Cabinet
1, Slide chassis from cabinet. Refer back to
Step 2of Window Mounting.
2, Place cabinet intoopeningwith bottom rail
resting firmly on bottom board ofwooden
frame,
3. Position cabinet toachieve proper slope for
water removal, (See FIG, 1 below,)
5, Secure bottom rail to wood frame with two
large wood screws 1"(2,5cm)long using the
two holes in the bottom of the channel
resting on frame, (See FIG, 2 following)
5/16"
TO
3/8"
LEVEL
3/4" PLUS
TRIM THICKNESS
SEE STEP 5
o o Oo o o oO o o J
_upport bracket
Wood
(If required)
6, Screwornailcabinet wooden frame using
shims if frame is oversized, to eliminate
distortion. Remember to maintain proper
slope as described in Step 3,
7, Installchassis into cabinet by following all
steps in Step 8of Window Mounting,
(Continued)
--9--
