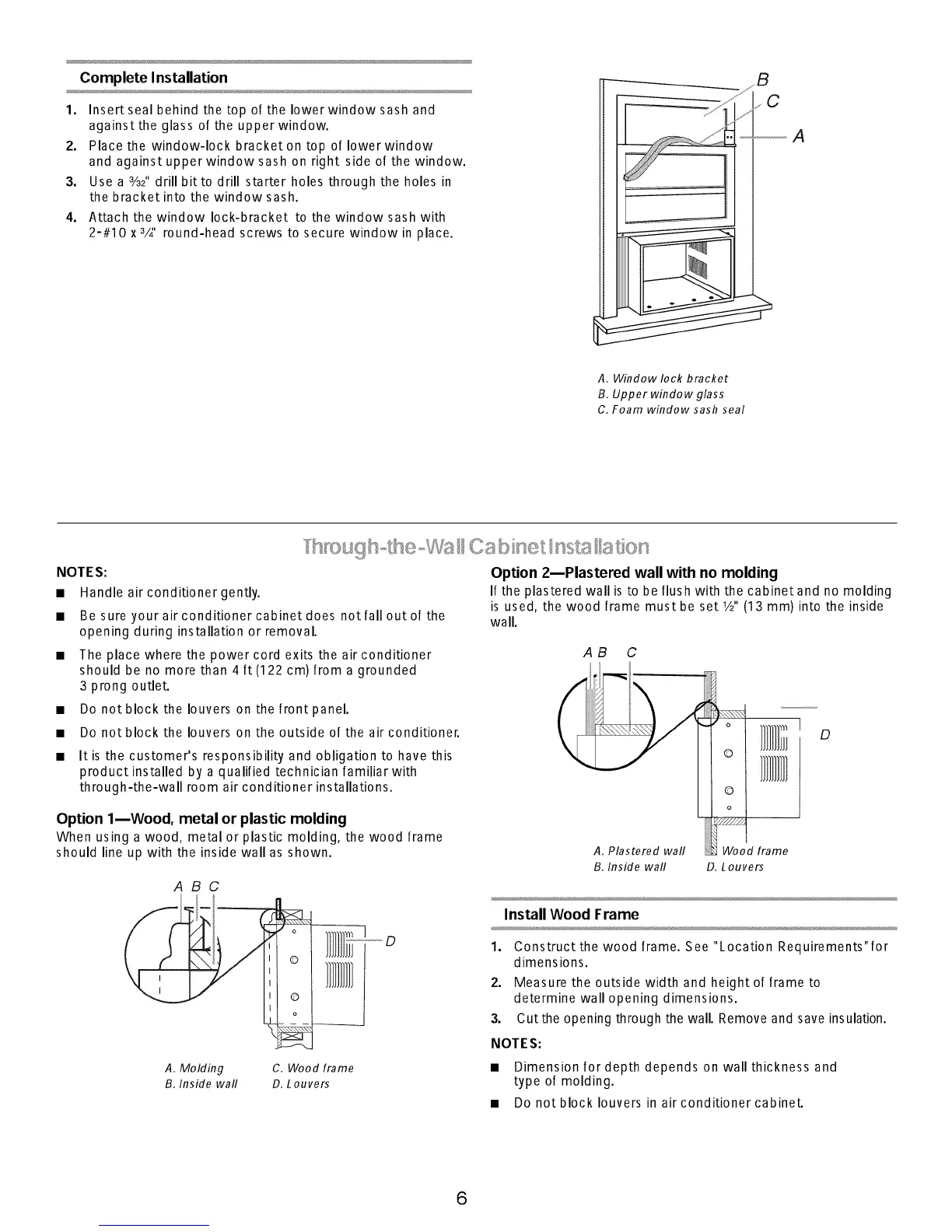

Complete Installation
1. Insertseal behind the top of the lower window sash and
against the glass of the upper window.
2. Place the window-lock bracket on top of lower window
and against upper window sash on right side of the window.
3. Use a 3/32"drill bitto drill starter holes through the holes in
the bracket into the window sash.
4.
Attach the window lock-bracket to the window sash with
2-#10 x 3/4_'round-head screws to secure window in place.
C
A
A, Window lock bracket
B. Upper window glass
C. Foam window sash seal
NOTES:
Handle air conditioner gently.
Be sure your air conditioner cabinet does not fall out of the
opening during installation or removal.
The place where the power cord exits the air conditioner
should be no more than 4 ft(122 cm)from a grounded
3 prong outlet.
Do not block the louvers on the front panel.
Do not block the louvers on the outside of the air conditioner.
It is the customer's responsibility and obligation to have this
product installed by a qualified technician familiar with
through-the-wall room air conditioner installations.
Option 1--Wood, metal or plastic molding
When using a wood, metal or plastic molding, the wood frame
should line up with the inside wall as shown.
ABC
)
I • ©
i ©
A. Molding
B. Inside wall
C. Wood frame
D, Louvers
Option 2--Plastered wall with no molding
Ifthe plastered wall isto be flush with the cabinetand no molding
is used, the wood frame must be setlA" (13mm)into the inside
wall.
AB C
D
A, Plastered wall Wood frame
B. Inside wall D. Louvers
Install Wood Frame
1. Construct the wood frame. See "Location Requirements"for
dimensions.
2. Measure the outside width and heightof frame to
determine wall opening dimensions.
3. Cutthe opening through the wall. Remove and save insulation.
NOTES:
• Dimension for depth depends on wall thickness and
type of molding.
• Do not block louvers in air conditioner cabinet.
6
To Next Page
