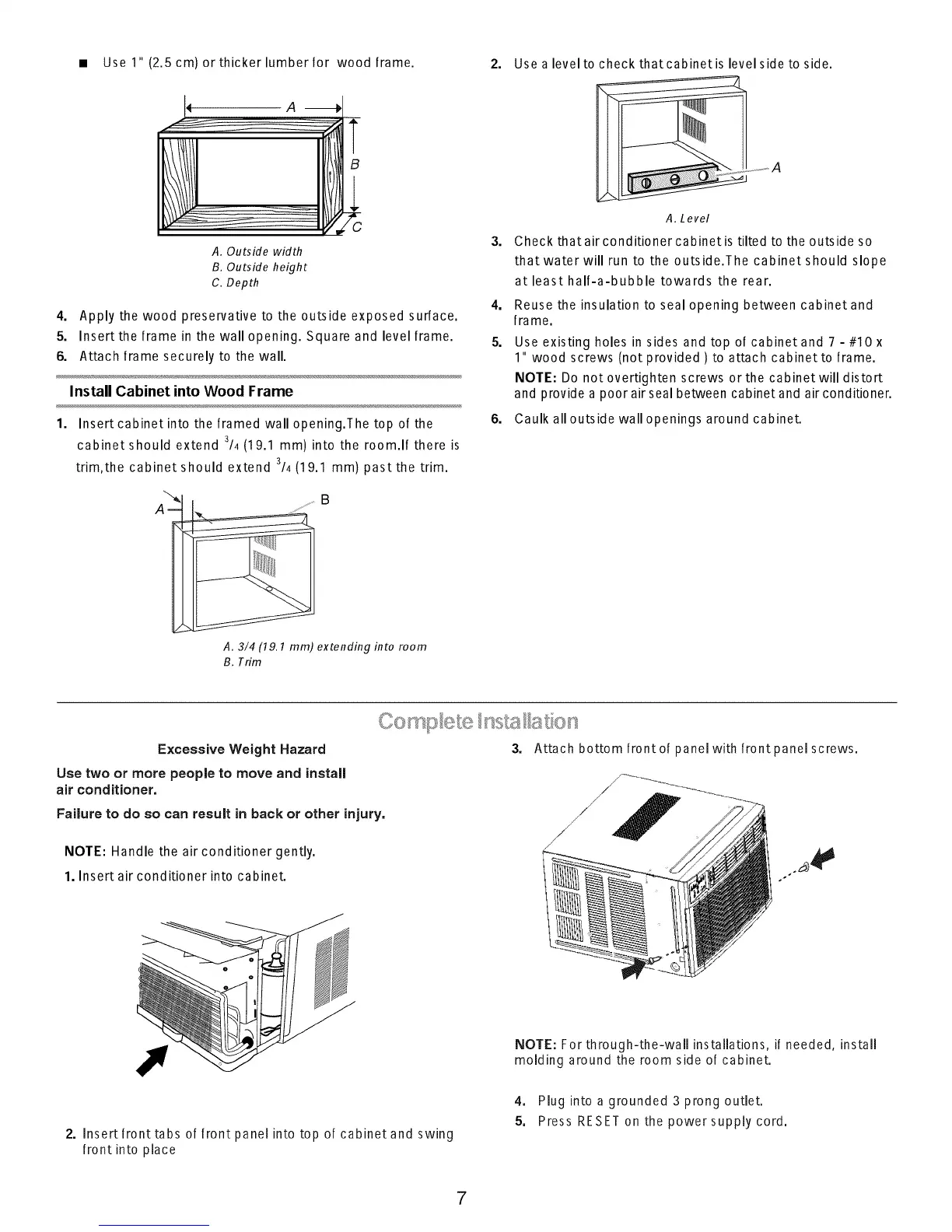

• Use 1" (2.5 cm) or thicker lumber for wood frame.
A, Outside width
B, Outside height
C.Depth
4. Apply the wood preservative to the outside exposed surface.
5. Insert the frame in the wall opening. Square and level frame.
6. Attach frame securely to the wall.
Install Cabinet into Wood Frame
1.
Insert cabinet into the framed wall opening.The top of the
cabinet should extend 3/4(19.1 mm)into the room.II there is
trim,the cabinet should extend 3/4 (19.1 mm) past the trim.
A B
A. 3/4 (19.1 mm) extending into room
B, Trim
2. Use a level to check thatcabinetis level side to side.
A. Level
3, Check thatairconditionercabinetis tilted to the outside so
that water will run to the outside.The cabinet should slope
at least half-a-bubble towards the rear,
4, Reuse the insulation to seal opening between cabinetand
frame,
5, Use existing holes in sides and top of cabinetand 7 - #10 x
1" wood screws (not provided ) to attach cabinet to frame,
NOTE: Do not overtighten screws or the cabinet will distort
and provide a poor air seal between cabinetand air conditioner.
6, Caulk all outside wall openings around cabinet.
Excessive Weight Hazard
3. Attach bottom front of panel with front panel screws.
Use two or more people to move and install
air conditioner.
Failure to do so can result in back or other injury.
NOTE: Handle the air conditioner gently.
1. Insert air conditioner into cabinet.
NOTE: For through-the-wall installations, if needed, install
molding around the room side of cabinet.
2. Insert front tabs of front panel into top of cabinet and swing
front into place
4. Plug into a grounded 3 prong outlet.
5. Press RESET on the power supply cord.
