Section 2 Installation Information
2-6
Prepare Hot Water Line
1. The line may enter from either side, rear or floor
within the shaded area shown in Figure 2-6.
2. The line may pass through the same hole as the
electrical cable and drain hose, or cut an additional
1-1/2” diameter hole to accommodate water line.
Water Line Connection
1. Turn off the water supply.
2. Install a hand shut-off valve in an accessible
location, such as under the sink. (Optional, but
strongly recommended, and may be required by
local codes.)
3. Water connection is on the left side of dishwasher.
Install the hot water inlet line, using no less than
3/8” 0.D. copper tubing. Route the line as shown in
Figure 2-6 and extend forward at least 18” from rear
wall.
4. Adjust water heater for 120°F to 150°F temperature.
5. Flush water line to clean out debris.
6. The hot water supply line pressure must be 20-120
PSI.
Plumbing material and drain hose must not come
in contact with wiring or electrical components.
Failure to follow this warning could result in personal
injury from exposed wiring.
WARNING
Shut-Off
Valve
1-1/2” Dia
Hole
18” From Wall
3” From Floor
Cabinet Face
4”
From
Cabinet
Hot

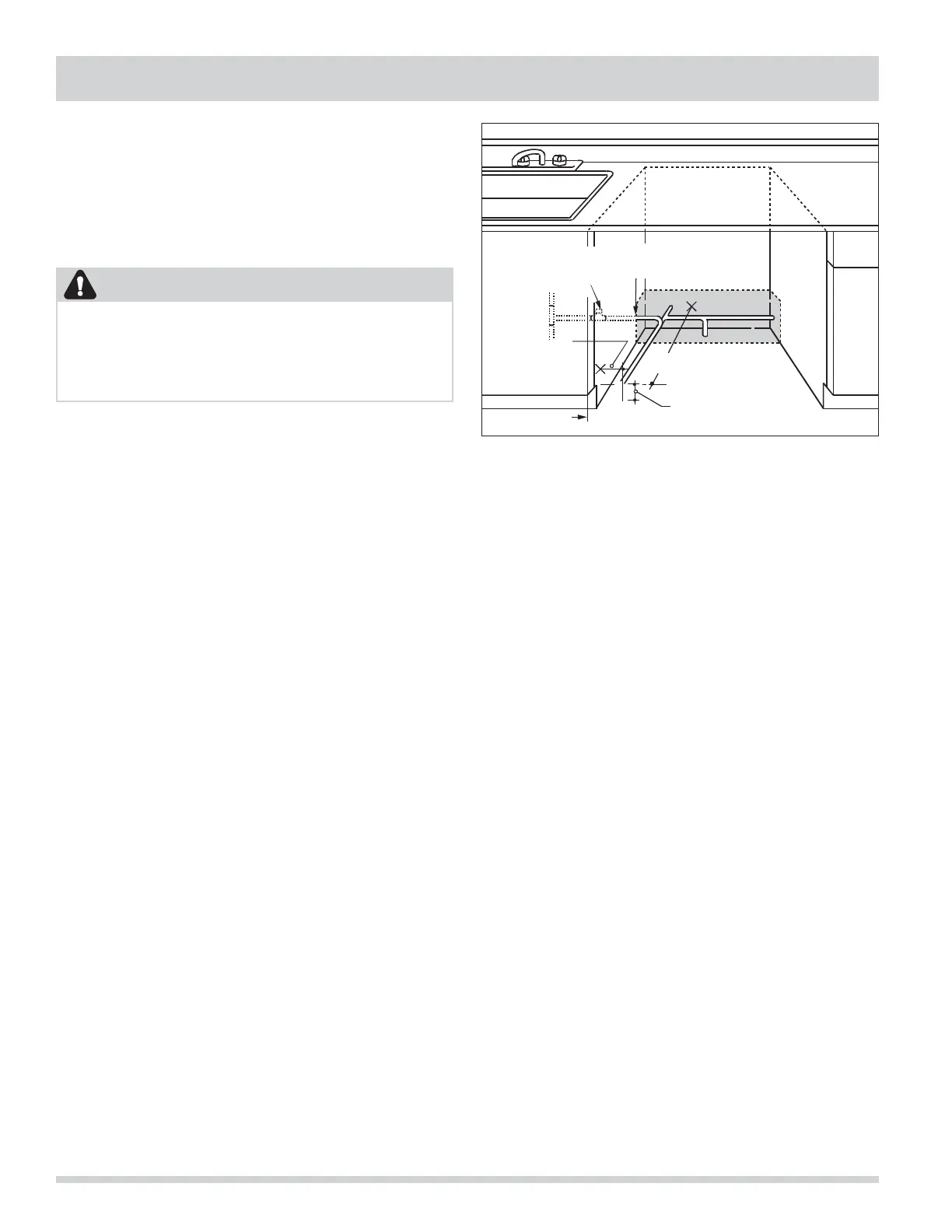

Figure 2-6.
To Next Page
