Section 2 Installation Information
2-8

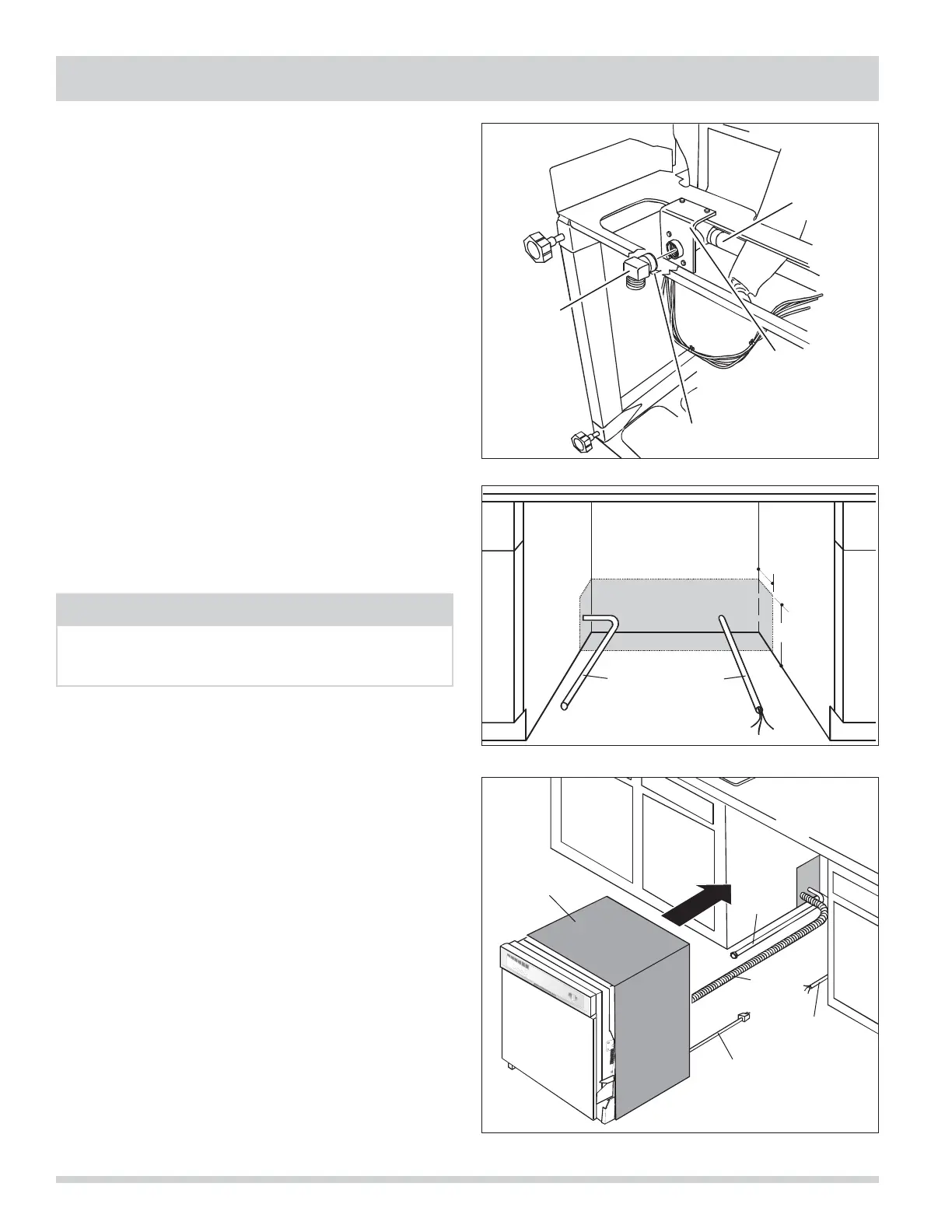

Install 90° Elbow
1. Wrap 90° elbow with thread seal tape.
2. Install a 90° elbow onto the water valve.
(See Figure 2-10)
3. Do not over tighten 90° elbow, water valve bracket
could bend or water valve fitting could break.
4. Position the end of the elbow to face the rear of the
dishwasher.
Position Water Line and House Wiring
Position water supply line and house wiring on the floor
of the installation opening to avoid interference with
base of dishwasher and components under dishwasher.
(See Figure 2-11)
Insert Drain Hose Through Cabinet
Insert drain hose into cabinet wall hole.
If a power cord is used, guide the end through a
separate hole. (See Figure 2-12)
90˚
Elbow
Thread
Seal Tape
Water
Valve
Bracket
Fill
Hose
Figure 2-10.
Water
Line
House
Wiring
4”
6”
Figure 2-11.
Insulation
Blanket
Power Cord
(if used)
House
Wiring
Drain
Hose
Water
Line
Maximum
Drain Hose
Length 10’
Figure 2-12.
Position water line and house wiring on the floor
to avoid interference with base of dishwasher.
NOTE
To Next Page
