Section 4 Component Teardown
4-5
Accessing the Interior Components
The lower rack assembly is removed by opening the
door and simply pulling the lower rack assembly out of
the unit.

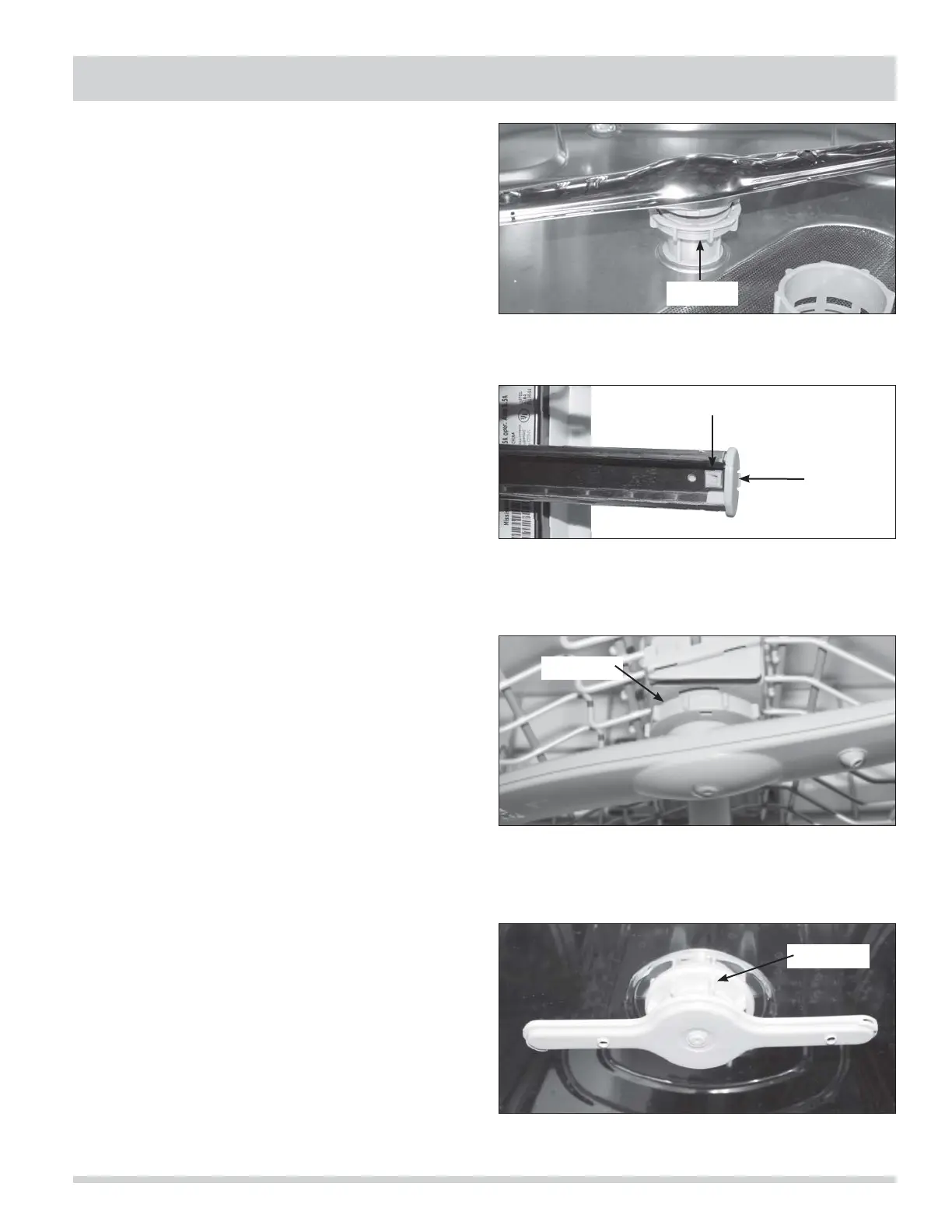

Lower Spray Arm Removal
1. Open door and remove lower rack.
2. The lower spray arm has a lock ring holding it to the
spray arm support. Turn the lock nut clockwise to
release arm. (See Figure 4-11)
3. When reinstalling arm turn lock ring counter clock-
wise until lock clicks.
Upper Rack Removal
1. Open door.
2. Slide rack rail forward. The end cap on the rail has
a lock securing the end cap to the rack rail.
3. Push lock release while pushing end cap off rail.
(See Figure 4-12)
4. Slide rack from rails.
Center Spray Arm Removal
1. Remove upper rack.
2. The center spray arm has a lock ring holding it to
the delivery tube mounted under the upper rack.
Turn the lock ring clockwise looking down from top
of rack to release arm. (See Figure 4-13)
3. When reinstalling arm turn lock ring counter clock-
wise looking down from top of rack until lock ring
clicks. There is a gasket inside the spray arm
providing a water seal. Locking the spray arm will
require some force. Make sure spray arm is fully
locked to delivery tube.
Upper Spray Arm Removal
1. Open door and remove upper rack.
2. The upper spray arm has a lock ring securing it to
the upper spray arm nut mounted to the top of the
unit. (See Figure 4-14) Turn the lock ring clock-
wise to release arm.
Figure 4-11.
Lock
Release
Lock
Figure 4-13.
Lock Ring
Lock Ring
Figure 4-14.
Lock Ring
Figure 4-12.
