Section 2 Installation Information
2-10

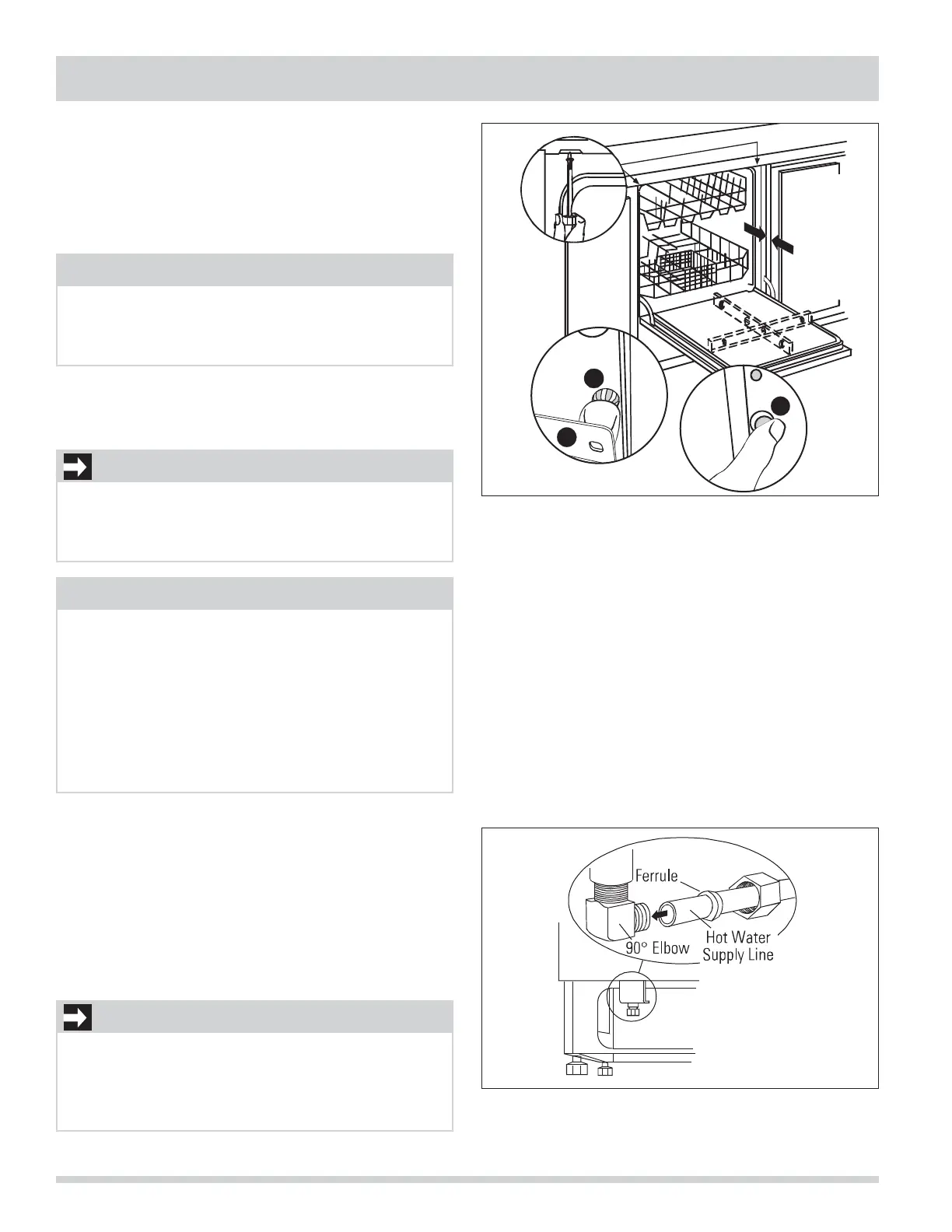

Secure Dishwasher to Cabinet
The dishwasher must be secured to the countertop.
1. Position the dishwasher so that the tub flange aligns
with the front face of the cabinet frame.
(See Figure 2-16)
2. Fasten the dishwasher to the underside and side
face of the countertop with the 2 Phillips screws
provided. (See Figure 2-16)
Connect Water Supply
Connect water supply line to 90° elbow.
1. Slide compression nut, then ferrule over end of
water line. (See Figure 2-17)
2. Insert water line into 90° elbow.
3. Slide ferrule against elbow and secure with
compression nut.
Check to be sure the dishwasher is centered in the
opening and there is no interference with adjacent
cabinets when opening or closing the door.
NOTE
Use Dishwasher Attachment Kit PN 154406801 to
replace the attachment bracket(s) in the top frame that
mount the dishwasher. 2- brackets and 4 screws for
mounting are included in the kit.
For under granite counter installs, use Dishwasher Side
Mounting Kit PN 154477201 to mount dishwasher
to side cabinets and not to counter top. 2-brackets,
screws and instructions are included in the kit.
NOTE
Drive screws straight and flush. Protruding screw heads
will scratch the top of the control panel and can
interfere with door closing.
IMPORTANT
Check to be sure that door spring does not rub or
contact the fill hose or water supply line. Test by
opening and closing the door. Re-route the lines if a
rubbing noise or interference occurs.
IMPORTANT
Align Tub
Flange
to Front
Face of
Cabinet
Frame
1
2
3
Figure 2-16.
Figure 2-17.
