Section 4 Component Teardown
4-13
Water Tunnel Removal
1. Disconnect power and turn off the water supply to
the dishwasher before starting this repair.
2. Remove upper and lower rack, kickplate and outer
door panel.
3. Before removing the incoming water line to the
dishwasher, place protection under the water valve
to catch any water that will be in the line as it is
removed.
4. Remove as much water as possible from sump.
6. Remove unit from under counter top. Remove
insulation wrap from exterior of unit.

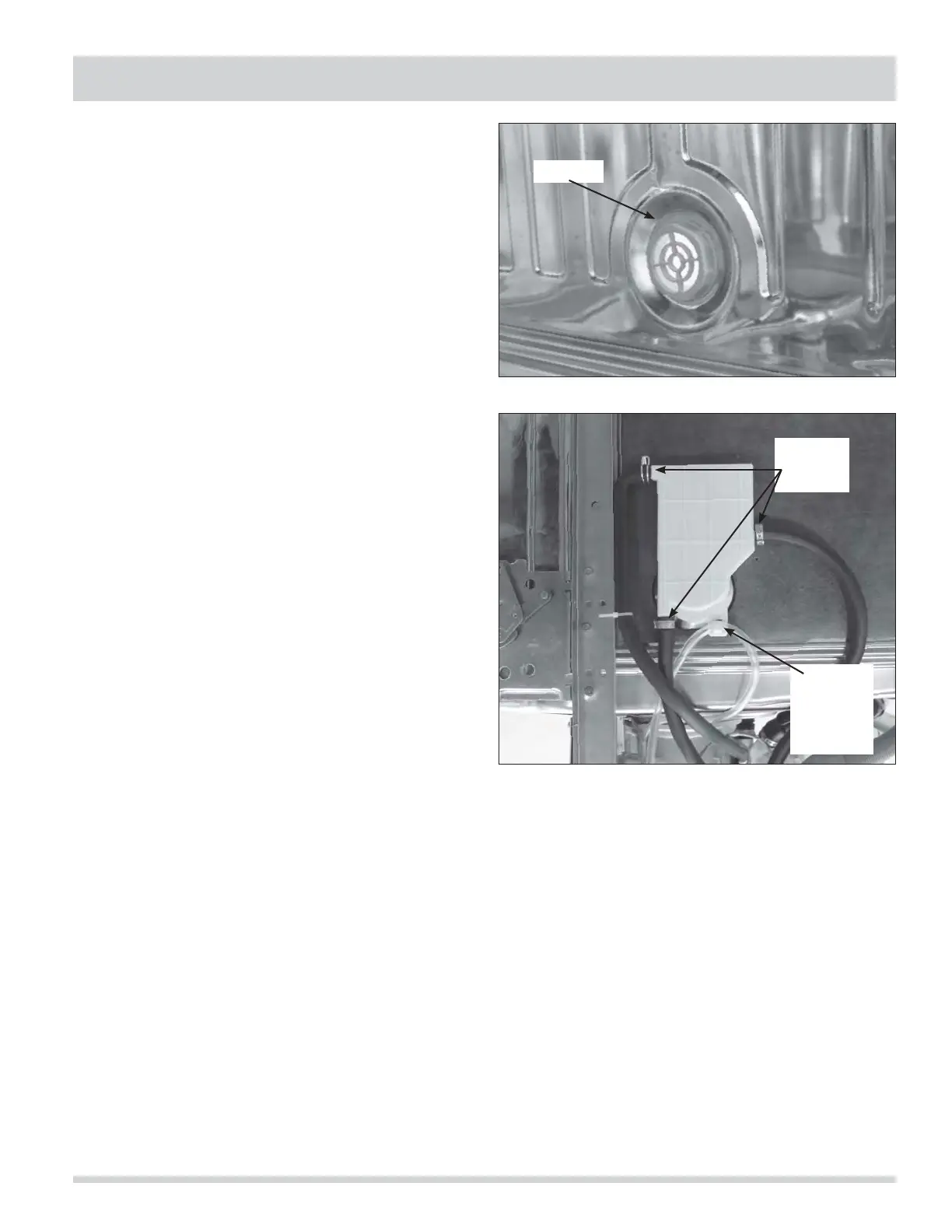

8. From inside tub, remove lock nut from water tunnel
by turning counterclockwise. (See Figure 4-36)
9. From the outer right side of unit, disconnect the
three hose clamps from the water tunnel. Remove
the pressure switch hose from the bottom retainer of
water tunnel. (See Figure 4-37)
10. Pull water tunnel from tub.
11. Replace water tunnel and complete repair in reverse
order.
Remove
Hose
Clamps
Remove
Pressure
Switch
Hose From
Retainer
Lock Nut
Figure 4-37.
Figure 4-36.
