Installation Instructions

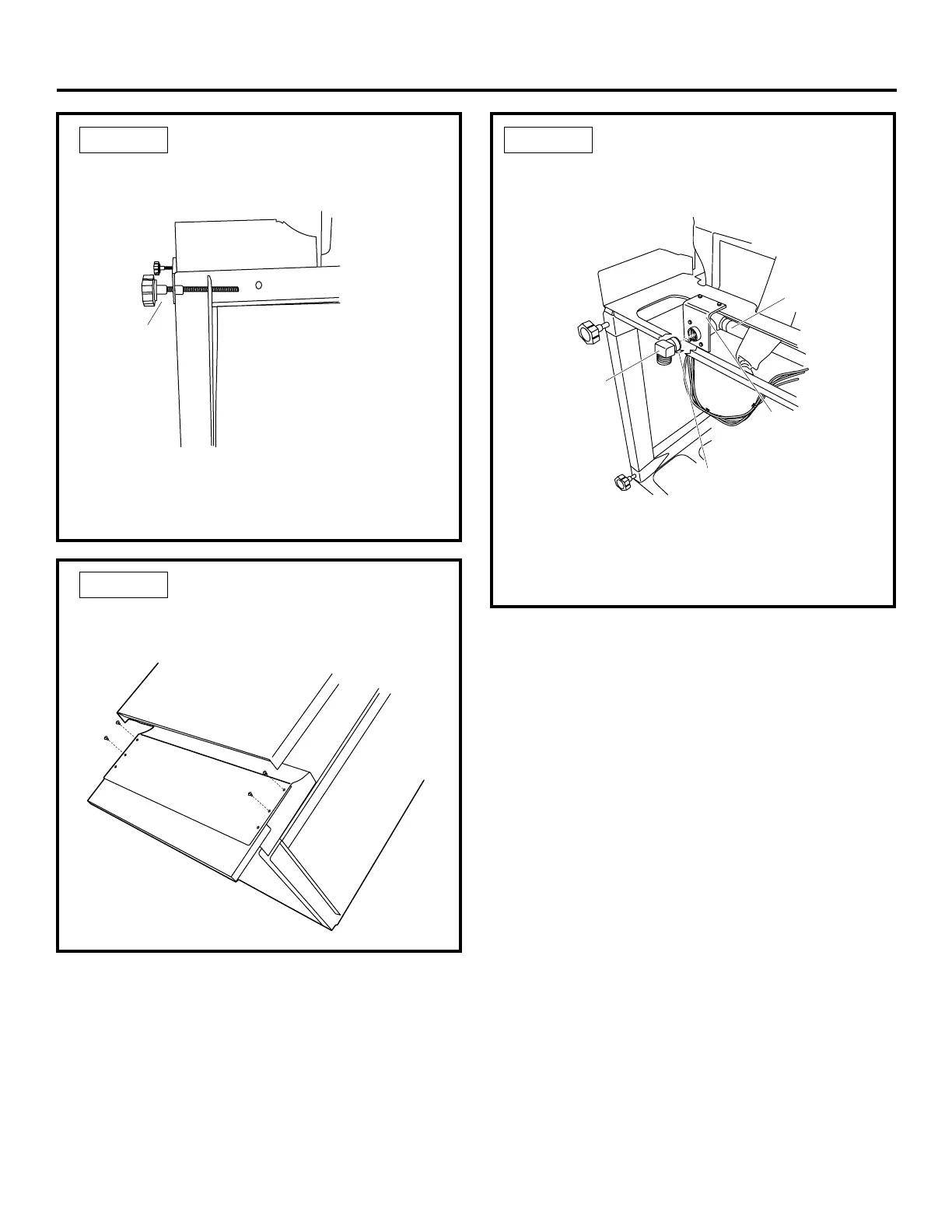

STEP 3 REMOVE TOEKICK
• Remove the 4 toekick screws. Lift off the 2 piece
toekick.
• Measure installation height and dishwasher height.
Extend leveling legs out from the dishwasher base,
1/4" less than installation height.
STEP 2 ADJUST LEVELING LEGS
• Move the dishwasher close to the installation location
and lay it on its back.
Adjust to
Installation
Height
Remove
4 Toekick
Screws
90°
Elbow
Fill
Hose
Thread
Seal Tape
Water
Valve
Bracket
STEP 4 INSTALL 90° ELBOW
• Wrap 90° elbow with thread seal tape.
• Install a 90° elbow onto the water valve.
Figure H
• Do not over tighten 90° elbow, water valve bracket
could bend or water valve fitting could break.
• Position the end of the elbow to face the rear of the
dishwasher.
Figure L
Figure J
