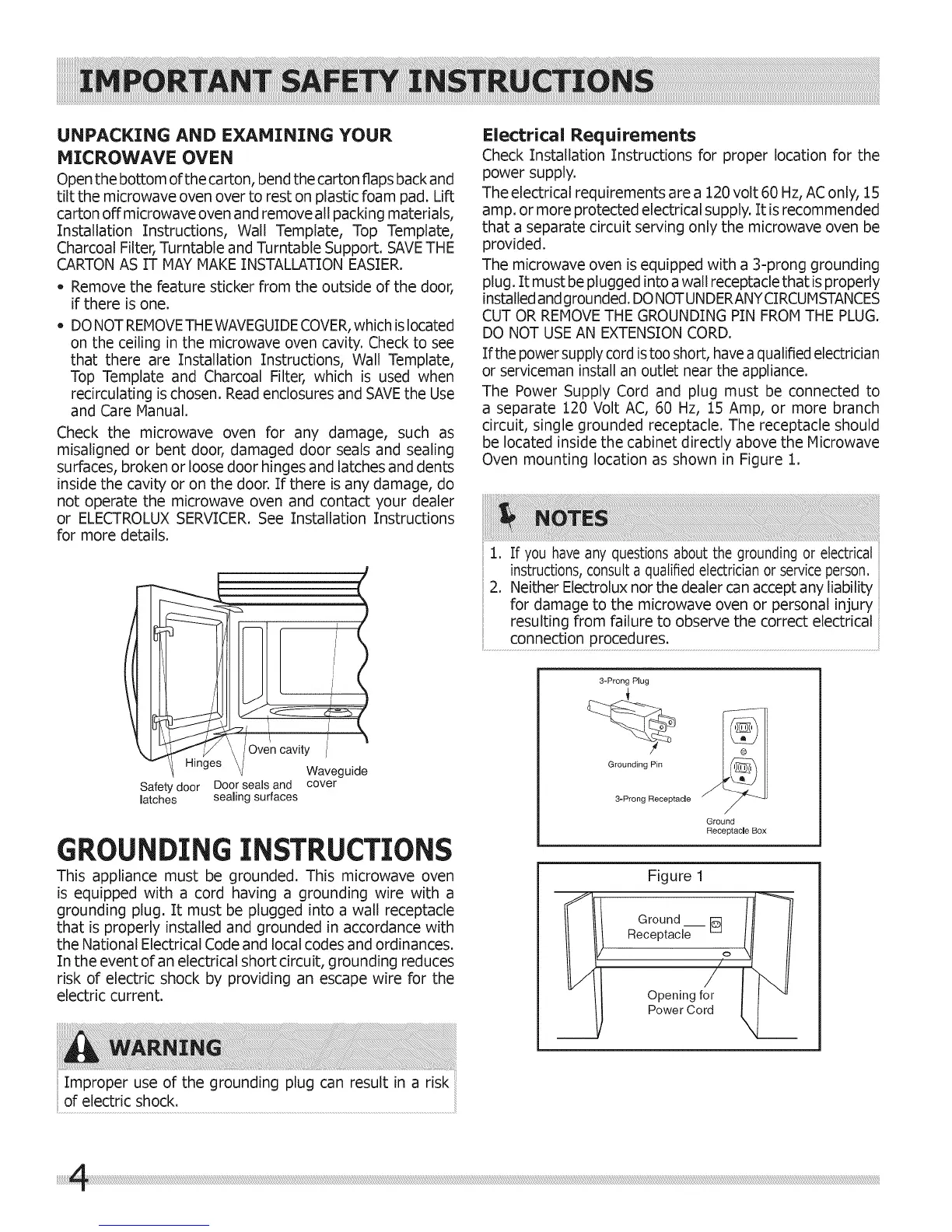

UNPACKING AND EXAMINING YOUR
MICROWAVE OVEN
Open the bottom of the carton, bend the carton flaps back and
tilt the microwave oven over to rest on plastic foam pad. Lift
carton off microwave oven and remove all packing materials,
Installation Instructions, Wall Template, Top Template,
Charcoal Filter, Turntable and Turntable Support. SAVETHE
CARTON AS IT NAY MAKE INSTALLATION EASIER.
- Remove the feature sticker from the outside of the door,
if there is one.
- DO NOTREMOVETHEWAVEGUIDECOVER,which is located
on the ceiling in the microwave oven cavity. Check to see
that there are Installation Instructions, Wall Template,
Top Template and Charcoal Filter, which is used when
recirculating is chosen. Read enclosures and SAVEthe Use
and Care Manual.
Check the microwave oven for any damage, such as
misaligned or bent door, damaged door seals and sealing
surfaces, broken or loose door hinges and latches and dents
inside the cavity or on the door. If there is any damage, do
not operate the microwave oven and contact your dealer
or ELECTROLUX SERVICER. See Installation Instructions
for more details.
Safet', door
latches
3
/
/
• Oven cavity I
Waveguide
Door seals and cover
sealing surfaces
GROUNDING INSTRUCTIONS
This appliance must be grounded. This microwave oven
is equipped with a cord having a grounding wire with a
grounding plug. It must be plugged into a wall receptacle
that is properly installed and grounded in accordance with
the National Electrical Code and local codes and ordinances.
In the event of an electrical short circuit, grounding reduces
risk of electric shock by providing an escape wire for the
electric current.
Improper use of the grounding plug can result in a risk
of electric shock.
Electrical Requirements
Check Installation Instructions for proper location for the
power supply.
The electrical requirements are a 120 volt 60 Hz, AC only, 15
amp. or more protected electrical supply. It is recommended
that a separate circuit serving only the microwave oven be
provided.
The microwave oven is equipped with a 3-prong grounding
plug. It must be plugged into a wall receptacle that isproperly
installed andgrounded. DO NOTUNDERANYCIRCUMSTANCES
CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG.
DO NOT USE AN EXTENSION CORD.
If the power supply cord istoo short, have a qualified electrician
or serviceman install an outlet near the appliance.
The Power Supply Cord and plug must be connected to
a separate 120 Volt AC, 60 Hz, 15 Amp, or more branch
circuit, single grounded receptacle. The receptacle should
be located inside the cabinet directly above the Microwave
Oven mounting location as shown in Figure 1.
1. If you have any questionsabout the grounding or electrical
instructions,consult a qualifiedelectricianor serviceperson.
2. Neither Electrolux nor the dealer can accept any liability
for damage to the microwave oven or personal injury
resulting from failure to observe the correct electrical
connection procedures.
3-Prong Pbg
Grounding Pin
3-Prong Receptacle
/
Ground
Receptacle Box
f
V
Figure 1
Ground __
Receptacle
o
/
/
Opening for
Power Cord
