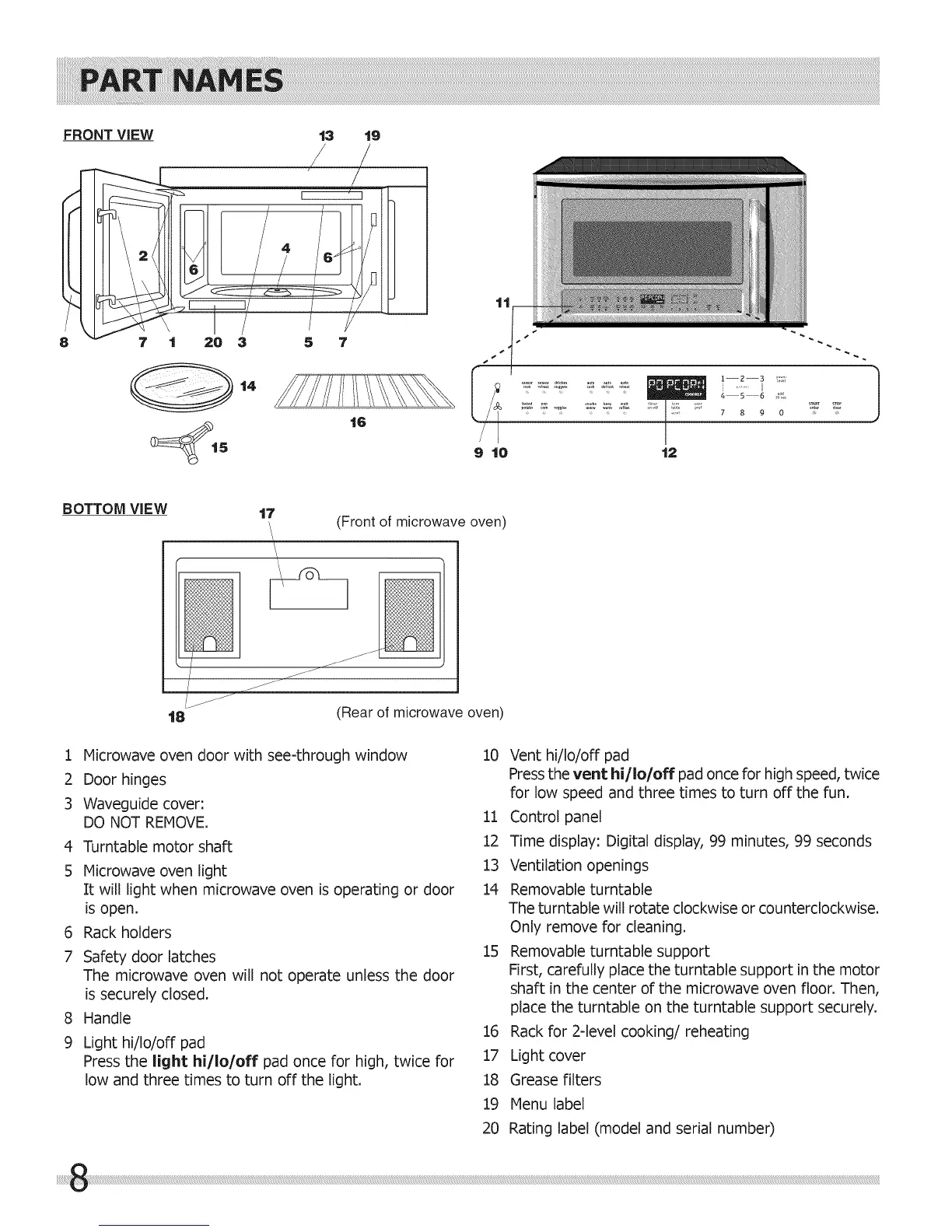

FRONT ViEW 13 19
/
f
8 7 1 20 3
14
5 7
16
7 8 9
BOTTOM ViEW
17
(Front of microwave oven)
_jJJJ
J
SJ
18
(Rear of microwave oven)
1 Microwave oven door with see-through window
2 Door hinges
3 Waveguide cover:
DO NOT REMOVE.
4
5
6
7
8
9
Turntable motor shaft
Microwave oven light
It will light when microwave oven is operating or door
is open.
Rack holders
Safety door latches
The microwave oven will not operate unless the door
is securely closed.
Handle
Light hi/Io/off pad
Press the light hi/Io/off pad once for high, twice for
low and three times to turn off the light.
10
II
12
13
14
15
16
17
18
19
20
Vent hi/Io/off pad
Pressthe vent hi/Io/off pad once for high speed, twice
for low speed and three times to turn off the fun.
Control panel
Time display: Digital display, 99 minutes, 99 seconds
Ventilation openings
Removable turntable
The turntable will rotate clockwise or counterclockwise.
Only remove for cleaning.
Removable turntable support
First, carefully place the turntable support in the motor
shaft in the center of the microwave oven floor. Then,
place the turntable on the turntable support securely.
Rack for 2-level cooking/reheating
Light cover
Grease filters
Menu label
Rating label (model and serial number)
To Next Page
