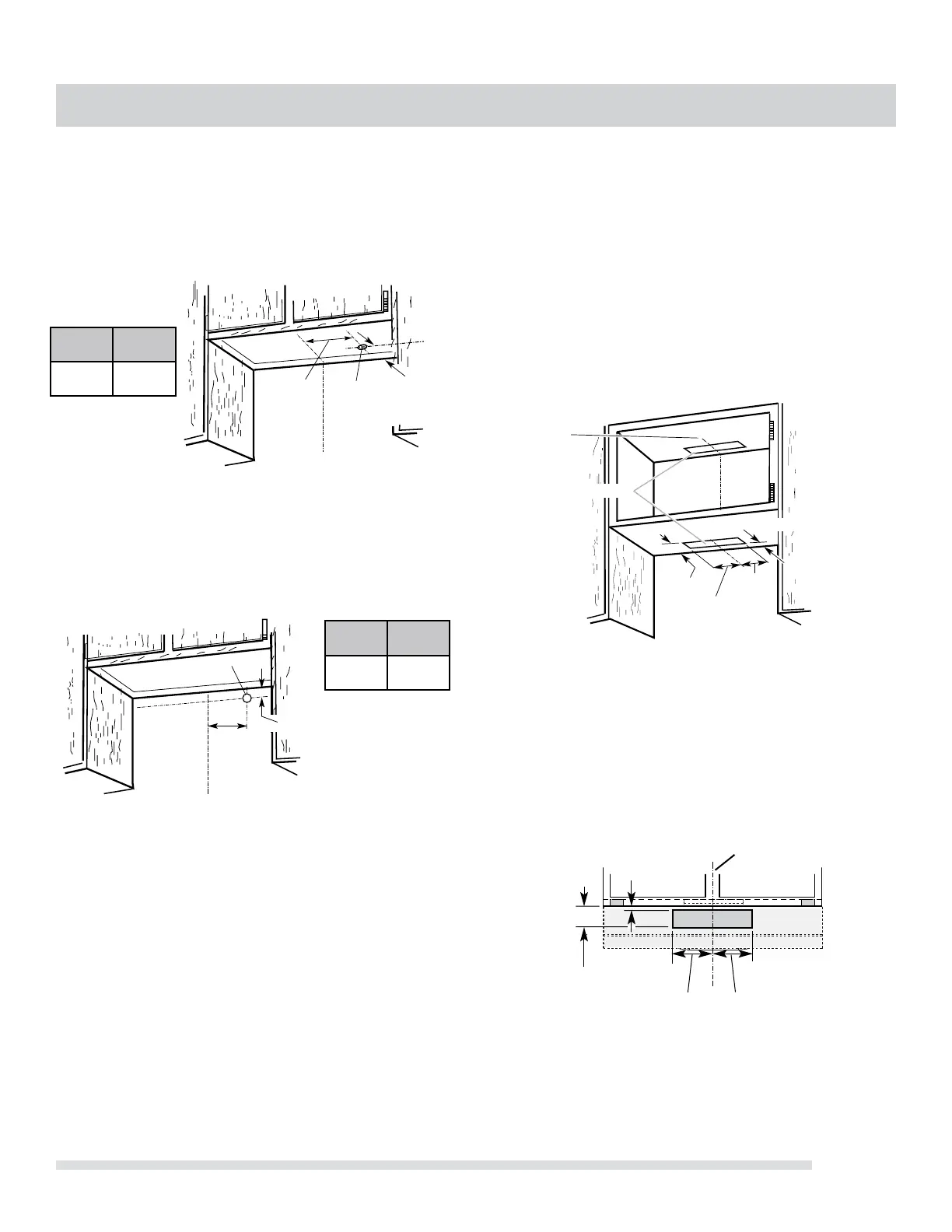

9
To wire through top:
Mark a line distance (A) from the right of the
centerline on the underside of the cabinet. Mark the
point on this line that is
7
»8” (2.2 cm) from back wall.
Drill a 1¼” (3.2 cm) diameter hole (B) through the cab
net at this point.
To wire through wall:
Mark a line distance (A) from the right of the
centerline on the underside of the wall. Mark the point
on this line that is
7
»8” (2.2 cm) from the underside of
the cabinet. Drill a 1¼” (3.2 cm) diameter hole (B)
through the rear wall at this point.
VENTING
&KRRVHYHQWLQJH[KDXVWGLVFKDUJHIURPWKHYDULRXV
options listed - Style 1 - 4 that follows:
Style 1 - Recirculating Hood version
For this installation, go to “Install Range Hood
(recirculating version)” on page 11.
2.
1.
A
Centerline
7
»8” (2.2 cm)
from wall,
not cabinet frame
B
A
A Centerline
7
»8”
(2.2 cm)
B
6W\OH&XW2SHQLQJVIRUó´[´FP[
25.4 cm) Rectangular Vent System
Roof Venting
7RPDNHD´[ò´FP[FPUHFWDQJXODU
cutout on the underside of cabinet top and bottom:
Mark lines ½” (1.3 cm) and 4¾” (12.1 cm) from the
back wall on the centerline of the underside of cabinet.
Mark lines 5¼” (13.3 cm) to the right and left of the
centerline on the underside of cabinet.
Use saber or keyhole saw to cut a rectangular opening
for vent.
Repeat steps 1-3 for the underside of the top of the
cabinet.
Wall Venting
7RPDNHDò´[ò´FP[FPUHFWDQJOHLQ
the wall:
Make 2 lines by measuring
3
»8” (0.9 cm) and 3
7
»8”
(9.8 cm) down from underside of cabinet and mark on
the centerline on the back wall.
Mark lines 5¼” (13.3 cm) to the right and left of the
centerline on the wall.
Use saber or keyhole saw to cut a rectangular opening
in the wall for the vent.
1.
2.
3.
4.
1.
2.
3.
Cabinet cutouts
*From wall, not cabinet frame
*
1
/2 (1.3 cm)
5
1
/4
(13.3 cm)
5
1
/4
(13.3 cm)
*4
3
/4
(12.1 cm)
Cabinet
front
Centerline
5
1
/4”
(13.3 cm)
3
7
/8”
(9.8 cm)
3
/8”
(0.9 cm)
5
1
/4”
(13.3 cm)
Centerline
PREPARE THE LOCATION
hood
model
Dim
A
30” & 36”
models
ñ»8”
(21.3 cm)
hood
model
Dim
A
30” & 36”
models
ñ»8”
(21.3 cm)
