Frigidaire FHWC3025MB - Install Range Hood (Ducted Version); Installing Range Hood (Recirculating Version)

10

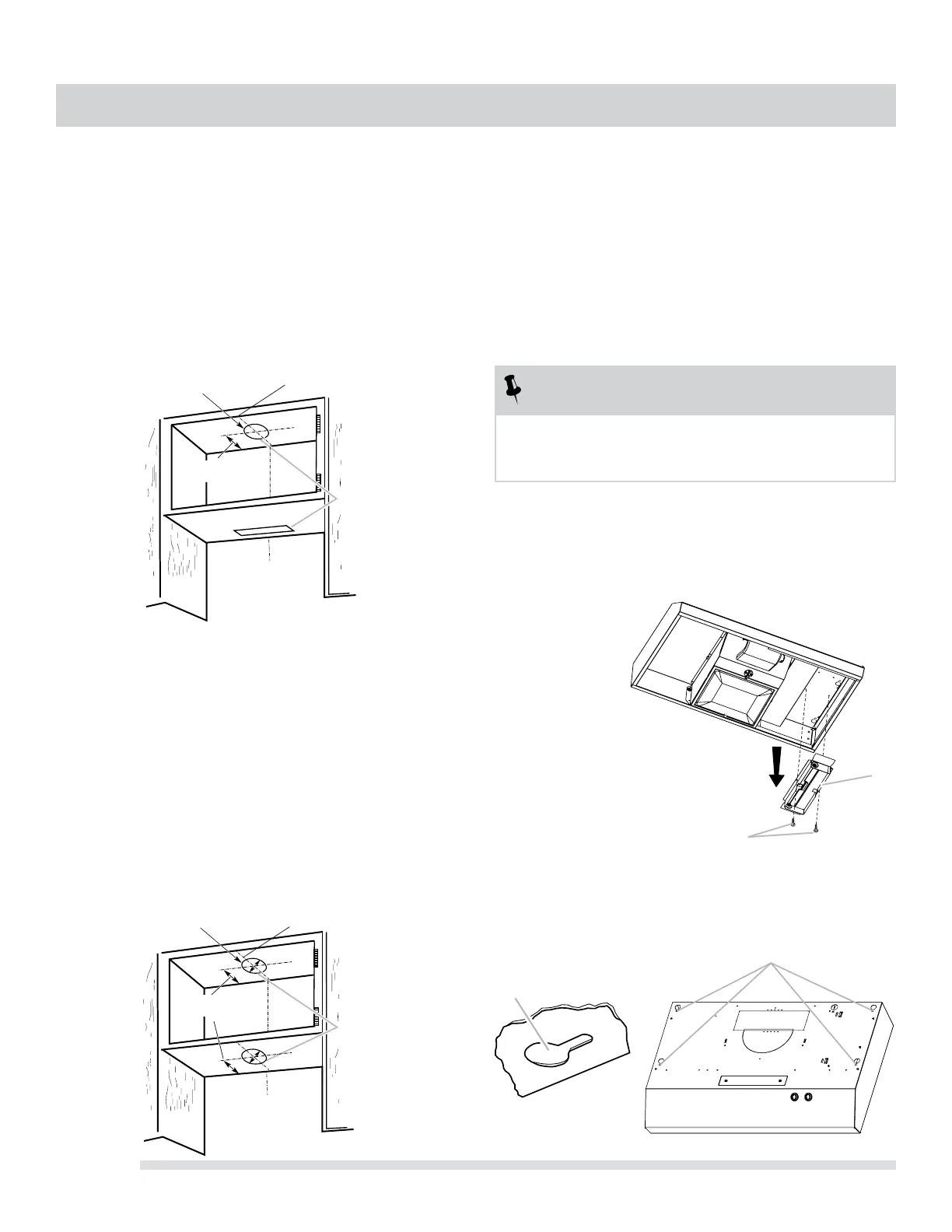

Install Vent System
Install vent through the vent opening in upper cabinet
or wall. Complete venting system according to the
selected venting method. See “Venting Requirements”
section.
8VHFDXONLQJWRVHDOH[WHULRUZDOORUURRIRSHQLQJ
around the cap.
INSTALL RANGE HOOD
(Ducted version)
NOTE
<RXUPRGHOZLOOKDYHDó´[´[
cm) rectangular vent connector on the inside of
the range hood.
8QSDFNWKHó´[´[FPUHFWDQJXODU
vent from the inside of your range hood. To detach the
vent connector, remove the 2 installation screws
 [FPDQGNHHSWKHVFUHZVLQDVDIHSODFHWR
reinstall later (see Step 5).
Lift the range hood up under cabinet and determine
 ¿QDOORFDWLRQE\FHQWHULQJEHQHDWKFDELQHW0DUNRQ
the underside of cabinet the location of the 4 keyhole
mounting slots on the range hood (See slot dimensions
on page 6). Set range hood aside on a covered surface.
1.
2.
1.
2.
A
A. Keyhole slot
A
A
B
A. 3¼” x 10” (8.3 x 25.4 cm) rectangular vent damper
B. 3.5 x 9.5 mm screws
PREPARE THE LOCATION
6W\OH&XW2SHQLQJVIRUó´[´[
cm) Rectangular Vent Transition to Round Vent
Roof Venting
To make a circular vent opening on the underside of the
cabinet top:
Mark a centerline on the underside of the top of cabinet.
Mark a line 5” (12.7 cm) from the back wall on the
underside of the top of cabinet.
Use a compass or a circle template to draw a circle with
a diameter of 7½” (19 cm).
Use saber or keyhole saw to cut the circular vent
opening.
Style 4 - Cut Openings for 7” (17.8 cm) Round Vent
to Round Vent Transition
Roof Venting
To make a circular vent opening on the underside of the
cabinet top:
NOTE: The 7” round transition kit, part number
5304487139, is required for this installation.
Mark a centerline on the underside of the top of cabinet.
Mark a line 5” (12.7 cm) from the back wall on the
underside of the top of cabinet.
Use a compass or a circle template to draw a circle with
a diameter of 7½” (19 cm).
Use saber or keyhole saw to cut the circular vent opening.
Repeat steps 1-3 for the underside of the top of the
cabinet.
1.
2.
3.
1.
2.
3.
4.
*From wall, not
cabinet frame
*5”
(12.7 cm)
Cabinet
cutouts
Ø 7½”
(19 cm)
Centerline
*From wall, not
cabinet frame
*5”
*
*
(12.7 cm)
Cabinet
cutouts
*Ø 7½”
(19 cm)
Centerline
