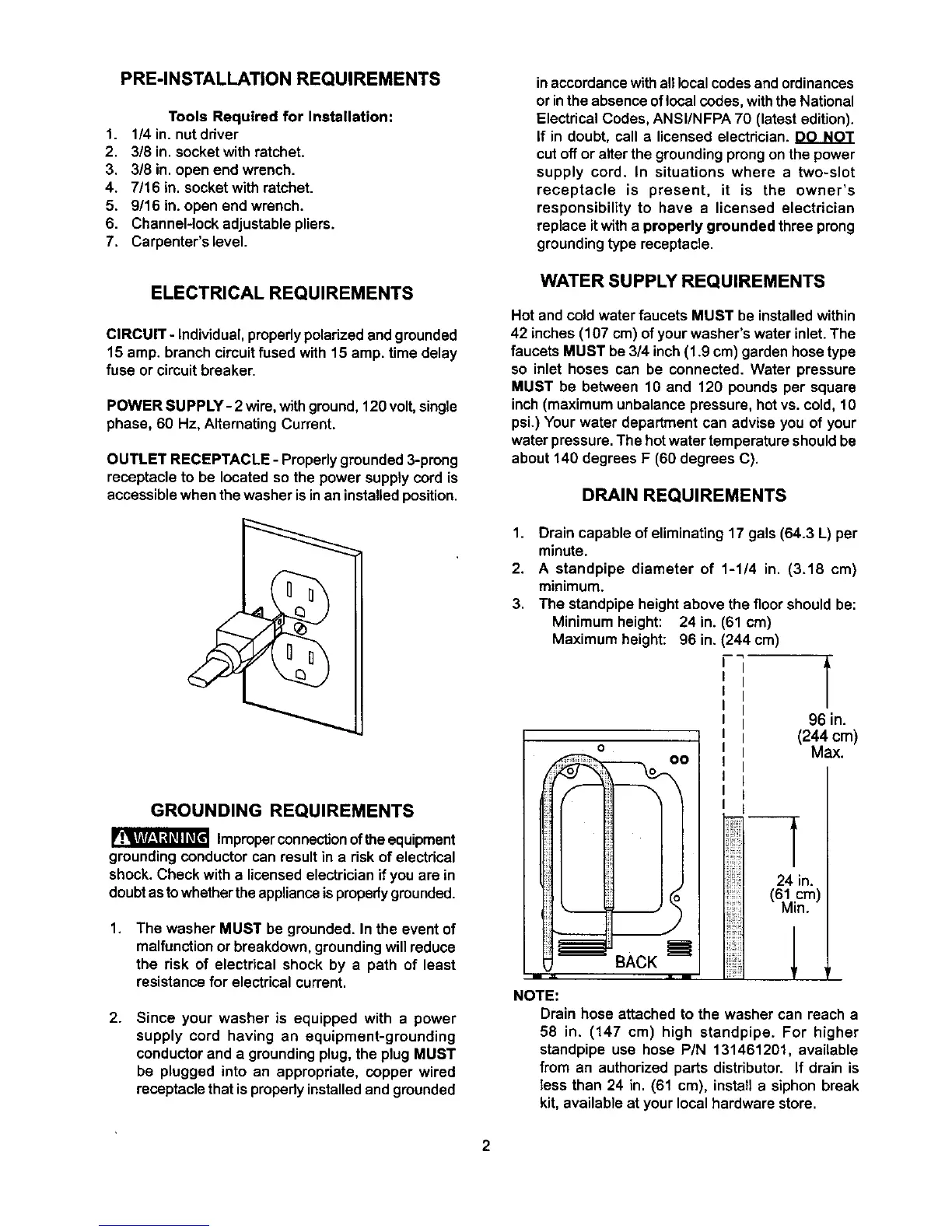

PRE-INSTALLATION REQUIREMENTS
Tools Required for Installation:
1. 1/4 in.nut driver
2. 3/8 in. socket with ratchet.
3, 3/8 in. open end wrench.
4. 7/16 in. socketwith ratchet.
5. 9/16 in. open end wrench.
6. Channel-lock adjustablepliers.
7, Carpenter's level.
ELECTRICAL REQUIREMENTS
CIRCUIT - Individual,properly polarized and grounded
15 amp. branchcircuitfused with 15 amp, time delay
fuse or circuitbreaker•
POWER SUPPLY- 2 wire,withground,120volt,single
phase, 60 Hz, Alternating Current.
OUTLET RECEPTACLE - Properlygrounded3-prong
receptacle to be located sothe power supply cordis
accessiblewhen thewasher isinaninstalledposition.
GROUNDING REQUIREMENTS
Improper connection of theequipment
groundingconductor can resultin a risk of electrical
shock. Check with a licensed electrician if you are in
doubt asto whether the appliance is propedygrounded.
1. The washer MUST be grounded. In the event of
malfunctionorbreakdown, groundingwillreduce
the risk of electrical shock by a path of least
resistancefor electrical current.
2. Since your washer is equipped with a power
supply cord having an equipment-grounding
conductorand a groundingplug,the plug MUST
be plugged into an appropriate, copper wired
receptacle thatisproperlyinstalledand grounded
inaccordancewith alllocal codes and ordinances
or inthe absenceoflocalcodes, withtheNational
Electrical Codes, ANSI/NFPA 70 (latestedition).
If in doubt, call a licensed electrician. DONOT
cutoffor alter the groundingprongonthe power
supply cord. In situations where a two-slot
receptacle is present, it is the owner's
responsibility to have a licensed electrician
replace itwitha properly grounded three prong
grounding type receptacle.
WATER SUPPLY REQUIREMENTS
Hot and cold water faucets MUST be installedwithin
42 inches (107 cm) of your washer's water inlet. The
faucetsMUST be 3/4 inch(1.9 cm) garden hose type
so inlet hoses can be connected. Water pressure
MUST be between 10 and 120 pounds per square
inch(maximum unbalance pressure,hotvs. cold, 10
psi.) Your water department can advise you of your
waterpressure.The hotwater temperatureshouldbe
about 140 degrees F (60 degrees C).
DRAIN REQUIREMENTS
1. Drain capable ofeliminating17 gals (64.3 L) per
minute.
2. A standpipe diameter of 1-1/4 in. (3.18 cm)
minimum.
3. The standpipeheightabove thefloorshouldbe:
Minimum height: 24 in. (61 cm)
Maximum height: 96 in. (244 cm)
--,9
o
NOTE:
96 in.
(244 cm)
Max.
24 in.
(61 cm)
Min.
Drain hose attached to the washer can reach a
58 in. (147 cm) high standpipe. For higher
standpipe use hose PIN 131461201, available
from an authorized parts distributor. If drain is
less than 24 in. (61 cm), install a siphon break
kit, available at your local hardware store.
