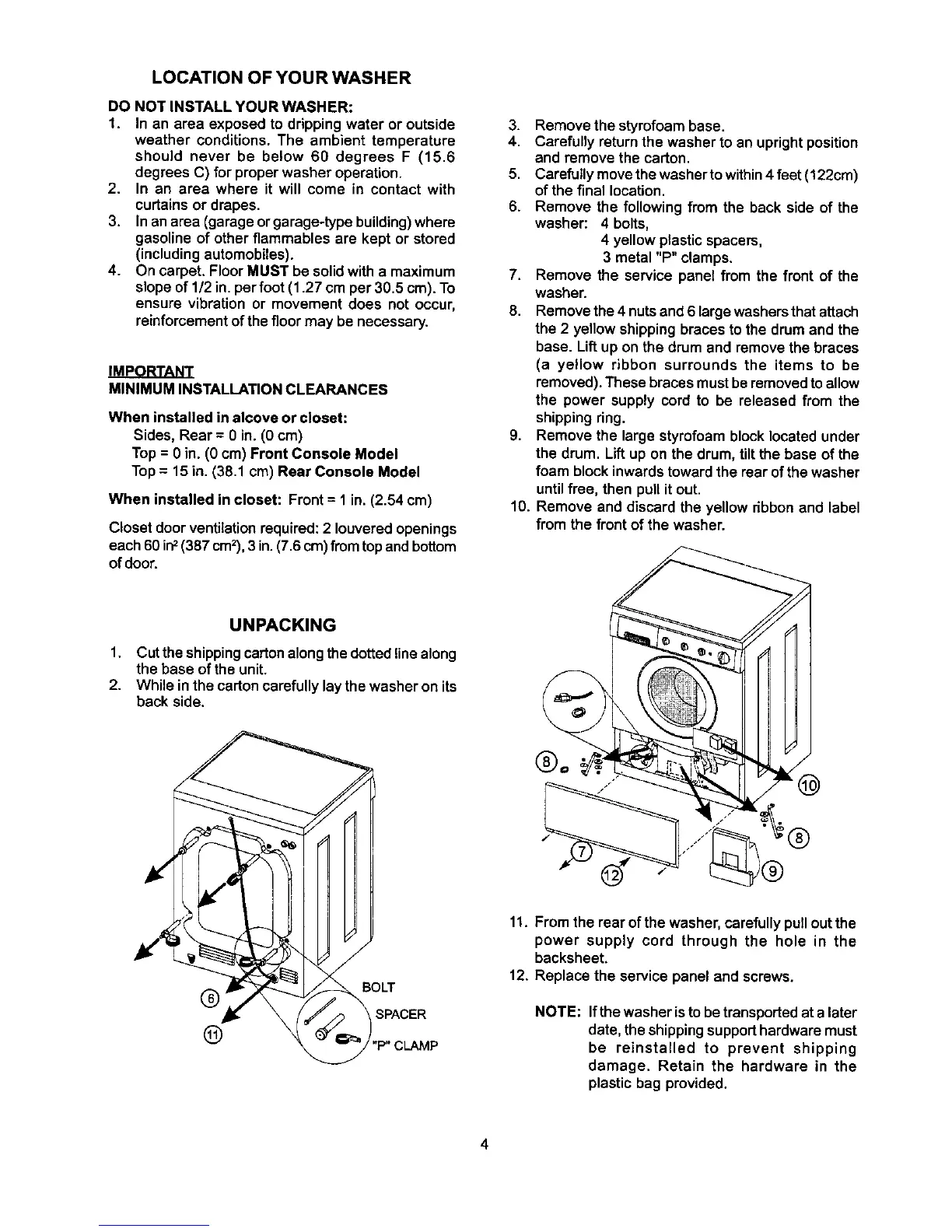

LOCATION OF YOUR WASHER
DO NOT INSTALL YOUR WASHER:
1. In an area exposed to drippingwater or outside
weather conditions. The ambient temperature
should never be below 60 degrees F (15.6
degrees C) for proper washer operation.
2. In an area where it will come in contact with
curtainsor drapes.
3. In anarea (garageorgarage-type building)where
gasoline of otherflammables are kept or stored
(includingautomobiles).
4. On carpet. Floor MUST be solidwith a maximum
slopeof 1/2 in.perfoot (1.27 cm per 30.5 cm).To
ensure vibration or movement does not occur,
reinforcementofthefloormay be necessary.
MINIMUM INSTALLATION CLEARANCES
When installed in alcove or closet:
Sides, Rear = 0 in. (0 crn)
Top = 0 in. (0 cm) Front Console Model
Top= 15 in.(38.1 cm) Rear Console Model
When installed in closet: Front = 1 in.(2.54 cm)
Closet door ventilationrequired: 2 Iouveredopenings
each 60 irf (387 cmZ),3 in. (7.6 cm) from top and bottom
of door.
3. Remove the styrofoambase.
4. Carefully returnthe washer to an upright position
and remove the carton.
5. Carefullymovethewashertowithin4 feet(122cm)
ofthe final location.
6. Remove the following from the back side of the
washer: 4 bolts,
4 yellow plastic spacers,
3 metal "P" clamps.
7. Remove the service panel from the front of the
washer.
8. Removethe 4 nutsand 6 large washersthatattach
the 2 yellow shipping bracesto the drum and the
base. Liftup on the drum and removethe braces
(a yellow ribbon surrounds the items to be
removed).These braces mustbe removedtoallow
the power supply cord to be released from the
shippingring.
9. Remove the large styrofoamblocklocatedunder
the drum. Liftup on the drum, tilt the base of the
foam blockinwardstowardthe rear of the washer
untilfree, then pullit out.
10. Remove and discard the yellow ribbonand label
from the front of the washer.
UNPACKING
1. Cut theshippingcartonalongthedotted line along
the base of the unit.
2. While inthe cartoncarefully laythe washer on its
back side.
(_ , BOLT
SPACER
(_ "P" CLAMP
11. From the rear of the washer, carefully pull out the
power supply cord through the hole in the
backsheet.
12. Replace the service panel and screws.
NOTE: Ifthe washer is tobetransported at a later
date, the shippingsupporthardwaremust
be reinstalled to prevent shipping
damage. Retain the hardware in the
plasticbag provided.
