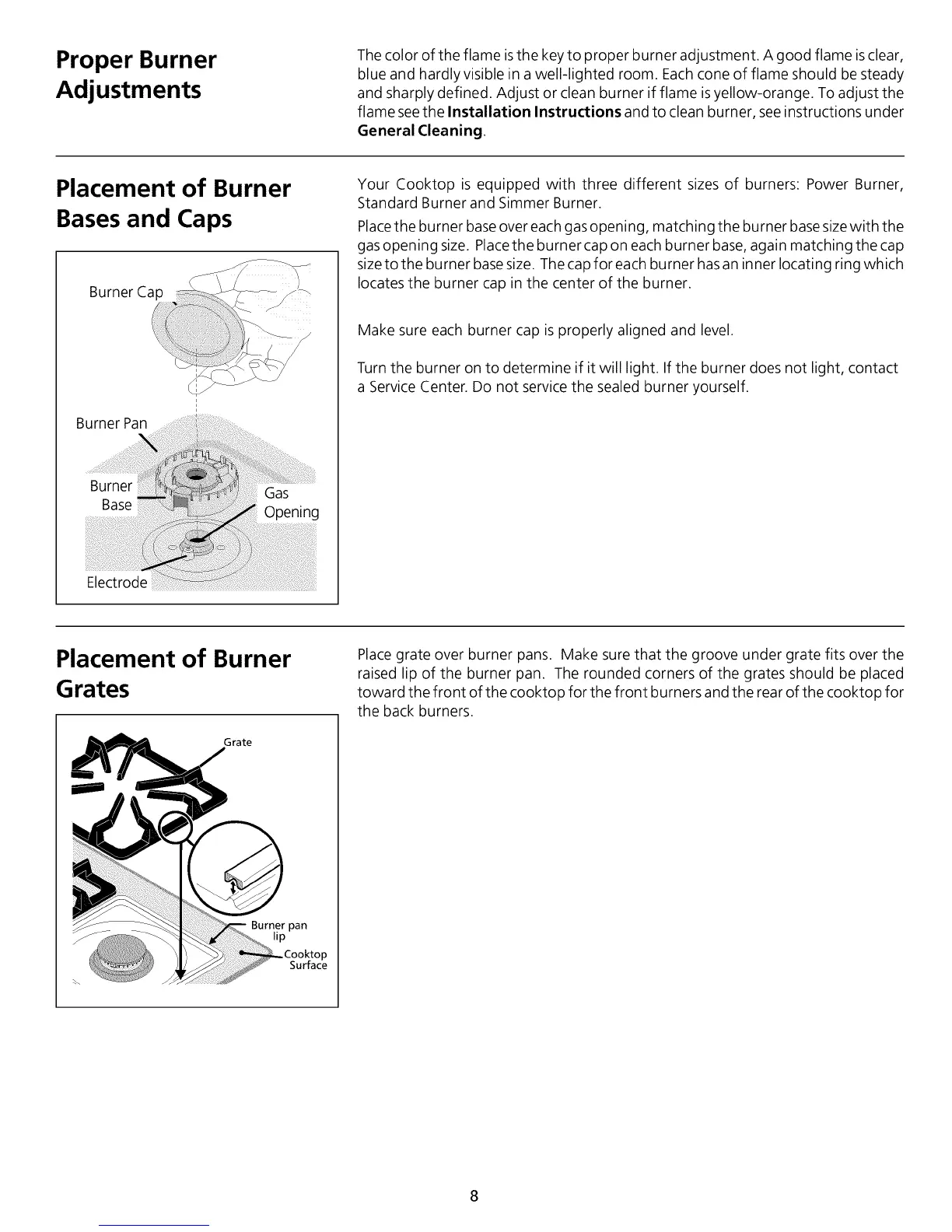

Proper Burner
Adjustments
The color of the flame isthe keyto proper burner adjustment. A good flame isclear,
blue and hardly visible in a well-lighted room. Each cone of flame should be steady
and sharply defined. Adjust or clean burner if flame is yellow-orange. To adjust the
flame seethe Installation Instructions and to clean burner, seeinstructions under
General Cleaning.
Placement of Burner
Bases and Caps
Burner Cap
I
Burner Pan
Burner Gas
Base Opening
Electrode
Your Cooktop is equipped with three different sizes of burners: Power Burner,
Standard Burner and Simmer Burner.
Placethe burner baseover each gasopening, matching the burner basesizewith the
gasopening size. Placethe burner cap on each burner base, again matching the cap
sizetothe burner base size. The capfor each burner hasan inner locating ring which
locates the burner cap in the center of the burner.
Make sure each burner cap is properly aligned and level.
Turn the burner on to determine if it will light. If the burner does not light, contact
a Service Center. Do not service the sealed burner yourself.
Placement of Burner
Grates
Grate
Placegrate over burner pans. Make sure that the groove under grate fits over the
raised lip of the burner pan. The rounded corners of the grates should be placed
toward the front of the cooktop for the front burners and the rear of the cooktop for
the back burners.
Jrner pan
lip
