Frigomatic Milano Manual v1 PAGE 17

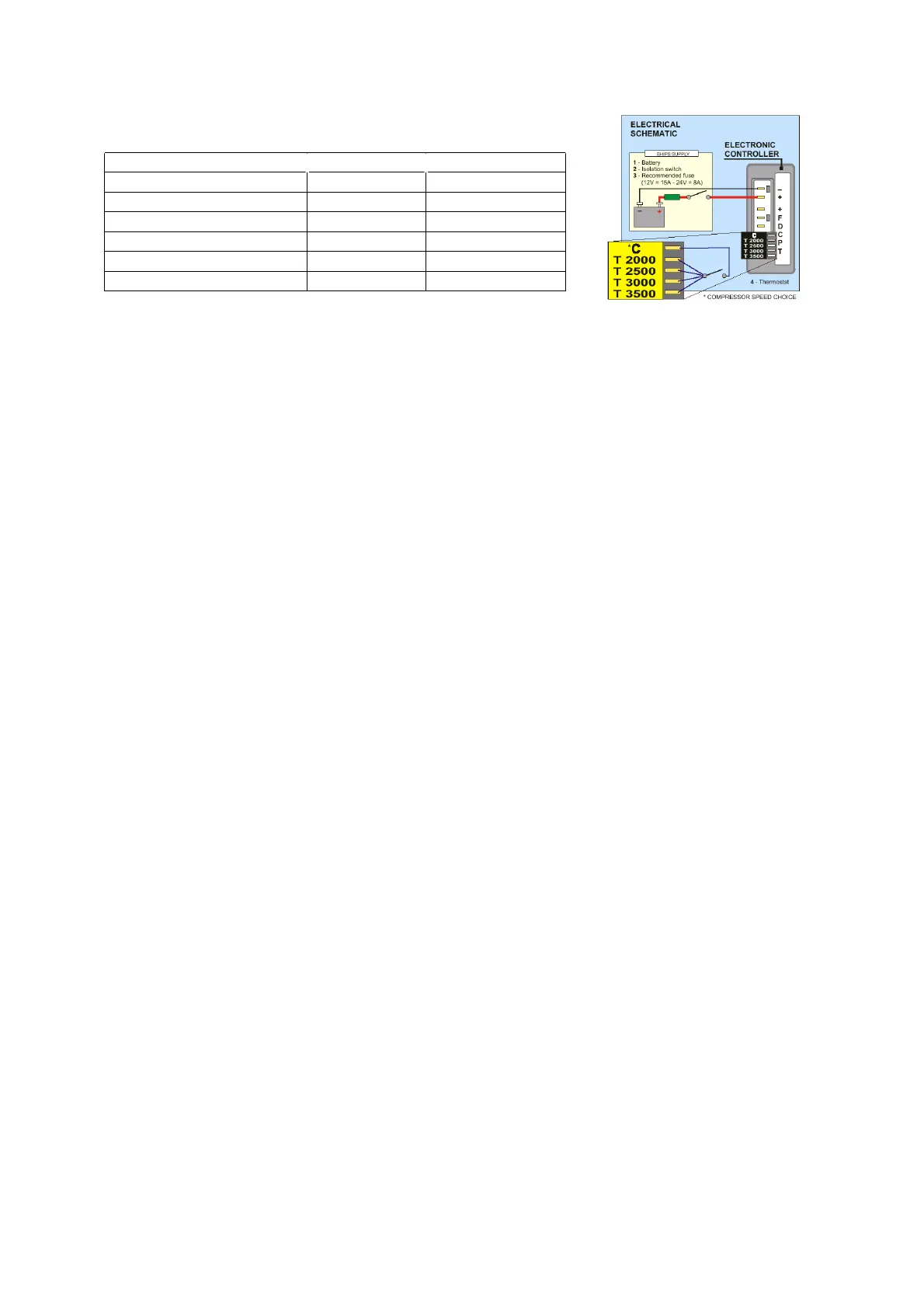

In the table below we suggest the correct speed for each evaporator model and application
(fridge or freezer).
SUGGESTED COMPRESS OR SPEED
EVAPORATOR TYPE FRIDGE SPEED FREEZER SPEED
EVAPORATORE 80 F 2000 -
EVAPORATORE 130H / 130F 2500 3500
EVAPORATORE 160H / 160F 2500 3500
EVAPORATORE 200H/200F/200B 3000 3500
EVAPORATORE 340 B 3500 3500
9.6 - FAN CONNECTION
Connect the fan motor to the terminals "F" (- Black) and "C" (+ Red). Do not reverse the
polarity. The fan motor is electronically controlled: a short circuit between terminal "C" and
"F" or the draw of more than 0.7A would immediately stop the fan motor and the
compressor.
NOTICE 1: The compressor and fan could start within 30 seconds after you have powered
the controller.
NOTICE 2: All the current and the fuse values must be halved for 24V supply.
9.7 - PUMP (ONLY MILANO W WATER COOLED MODEL)
For 12V installations the pump must be connected through a power relay (see schematic
R1407).
For 24V installations or installations with two or more "Milano W" units operating from one
pump, use the E51385 pump interface (see schematic R1374).
The Milano W is equipped with a thermal cut out safety device, which stops the system if
the water circulation is not sufficient. This device is installed on the water heat exchanger
and must be connected in series with the thermostat. Follow the instructions supplied with
the system.
9.8 - VOLTAGE SUPPLY
It is advisable to check the value of the supply voltage at the electronic controller terminals
+ and - ., particularly when the supply comes through the yacht panel. Switch on all loads
connected to the service battery and then switch on the fridge unit, after a few seconds the
fridge will start and at no time during the starting should the actual voltage have dropped
below the nominal 12 or 24V.
