Frigomatic Milano Manual v1 PAGE 6
CHAPTER 3
FRIGOMATIC MILANO KEEL COOLED
12/24V DC compressor
Pre-charged with R134a refrigerant with resealing male and female quick couplings to
connect to the keel cooler condenser and aluminium evaporator.
Supplied as standard with both high and low pressure service valves.
3.1 - POSITION
When deciding on the location of the compressor please consider the following:
A.- The compressor can be located anywhere (within 1.5m of the keel cooler). It doesn't
need air circulation but only accessibility for maintenance.
B.- The compressor must be mounted horizontally on its base.
Fix with the pre-drilled holes in the stainless steel base.
Pay attention to leave enough space for the evaporator and keel cooler connections and
that there is good access to the electrical connections

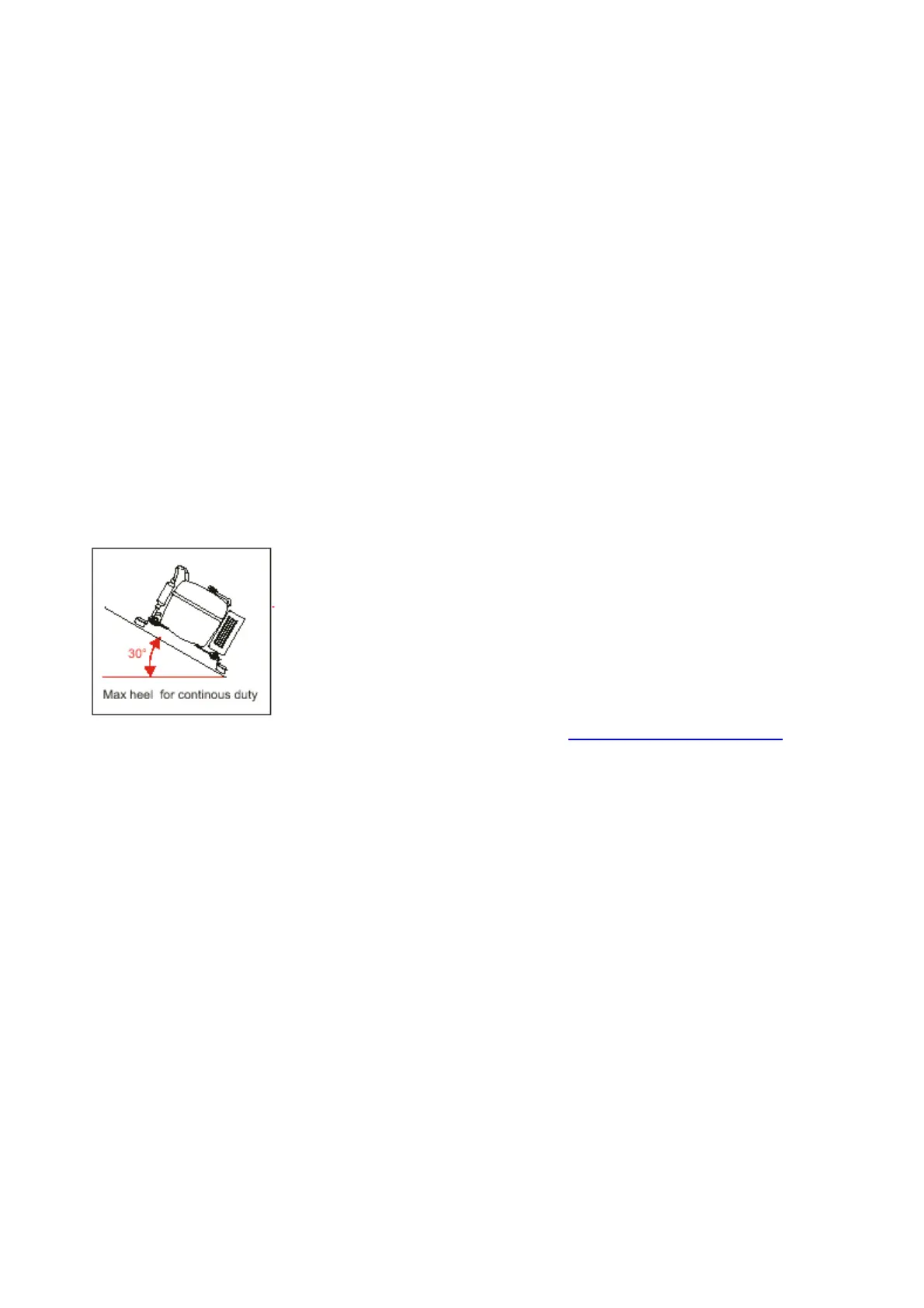

It can be safely angled up to 30 degrees so no problem for sailing boats
Note: Bulkhead mounting bracket also available – contact
sales@penguinfrigo.co.uk for
details
C - The length of the keel cooler connecting pipes is 1.5m (3ft) and cannot be extended
D - The length of the connecting pipe is 2.8mt (8ft) without using the optional extension
pipes (available from 1m to 6m see chap. 11.2).
3.2 - KEEL COOLER SEA WATER HEAT EXCHANGER
The keel cooler is a Cupro nickel heat exchanger moulded within a sintered bronze
casting.
Supplied with 15m copper pipes pre-charged with R134a refrigerant with re-sealing male
and female quick couplings to connect to the compressor and evaporator.
Available with or without protective anodes.
It can also be used as a ground plate for electronic instruments.
E50361 is the standard keel cooler suitable for hulls up to 40mm thickness
E50362 is the long stud keel cooler suitable for hulls up to 100mm thickness
Recommended Fitting Instructions
