Frigomatic Milano Manual v1 PAGE 4
CHAPTER 2
FRIGOMATIC MILANO AIR COOLED
12/24V DC compressor with high efficiency aluminium finned condenser with integral
cooling fan.
Pre-charged with R134a refrigerant with resealing male and female quick couplings to
connect to the evaporator.
Supplied as standard with both high and low pressure service valves.
2.1 - POSITION
When deciding on the location of the compressor please consider the following:
A.- The compressor must be mounted horizontally on its base.
Fix with the pre-drilled holes in the stainless steel base.
Pay attention to leave enough space for the evaporator and keel cooler connections and
that there is good access to the electrical connections

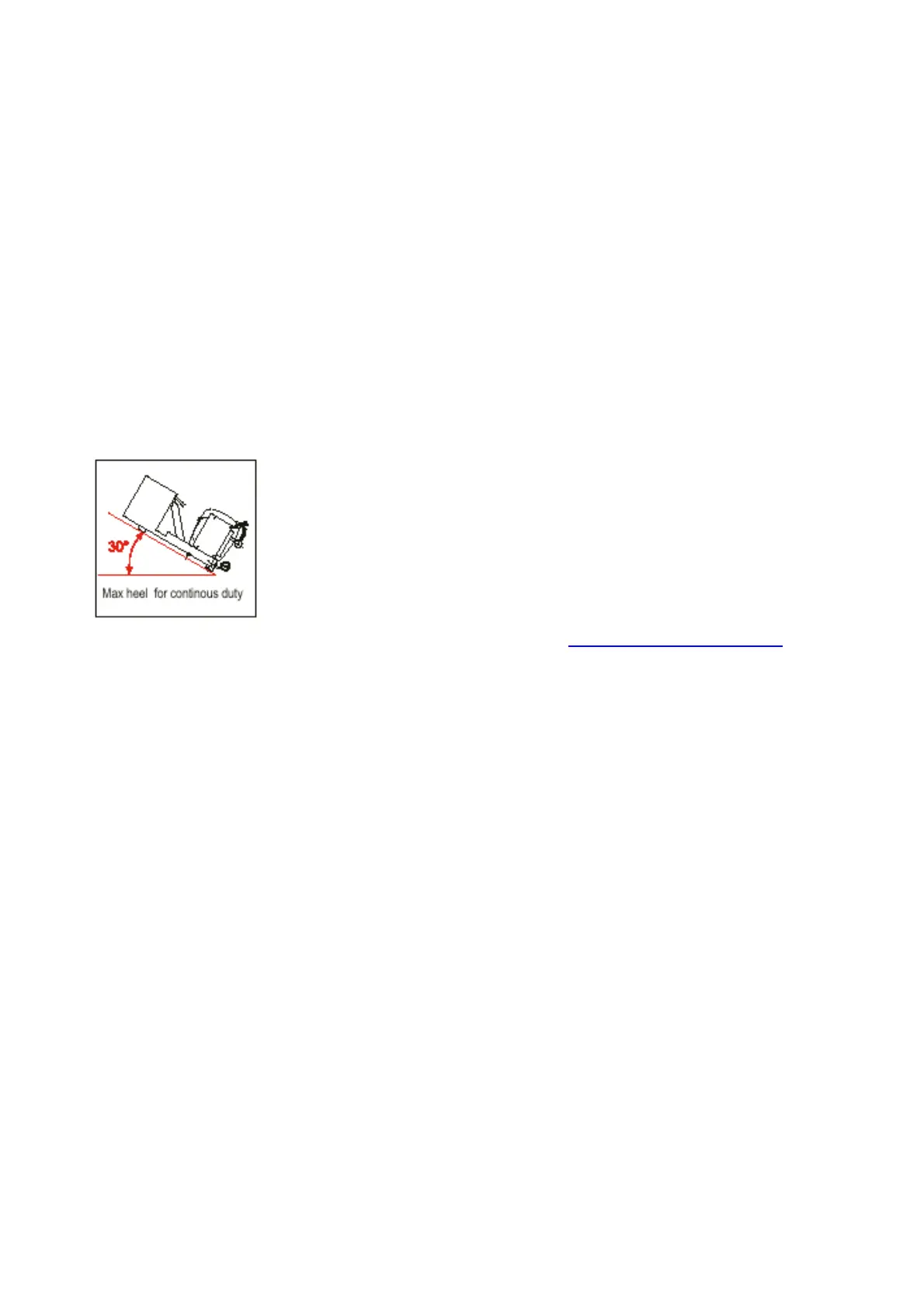

It can be safely angled up to 30 degrees so no problem for sailing boats
Note: Bulkhead mounting bracket also available – contact
sales@penguinfrigo.co.uk for
details
B.- The length of the connecting pipe is 2.8mt (8ft) without using the optional extension
pipes (available from 1m to 6m see chap. 11.2).
C.- The unit must be installed with the finned condenser at least 50mm from any wall or
bulkhead.
The condenser requires a minimum ventilation of 120mm x 120mm in and out of the area
where the compressor is located – see below.
