Connecting to the Landline Telephone Network
Connecting to the ISDN Line
ISDN line

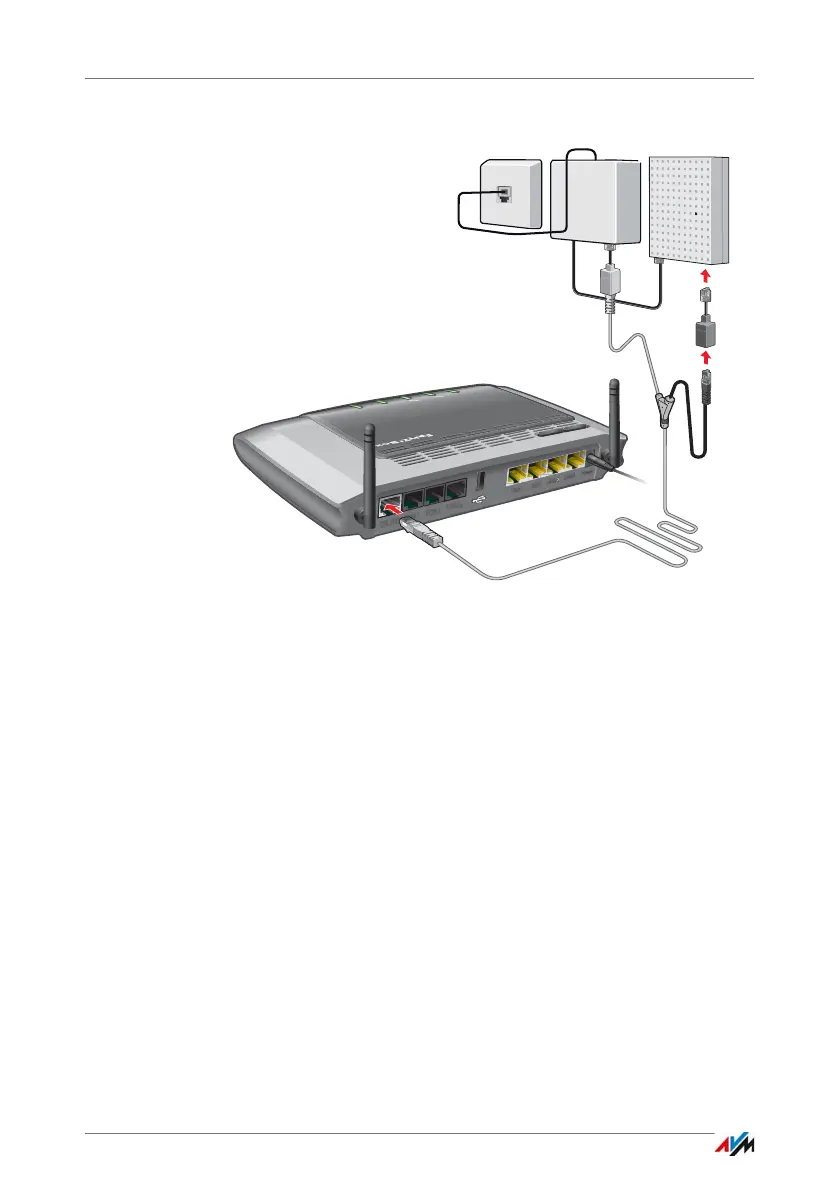

1. Insert the long, gray end of the DSL/telephone cable into
the socket on the FRITZ!Box labeled “DSL/TEL”.
2. Insert the short, black end of the cable into a socket (S
0
interface) on your ISDN NTBA.
If the plug on the cable does not fit into ISDN NTBA, use
the black adapter included in the FRITZ!Box package.
