Frog Pool FroG 5400 - Parts List

14

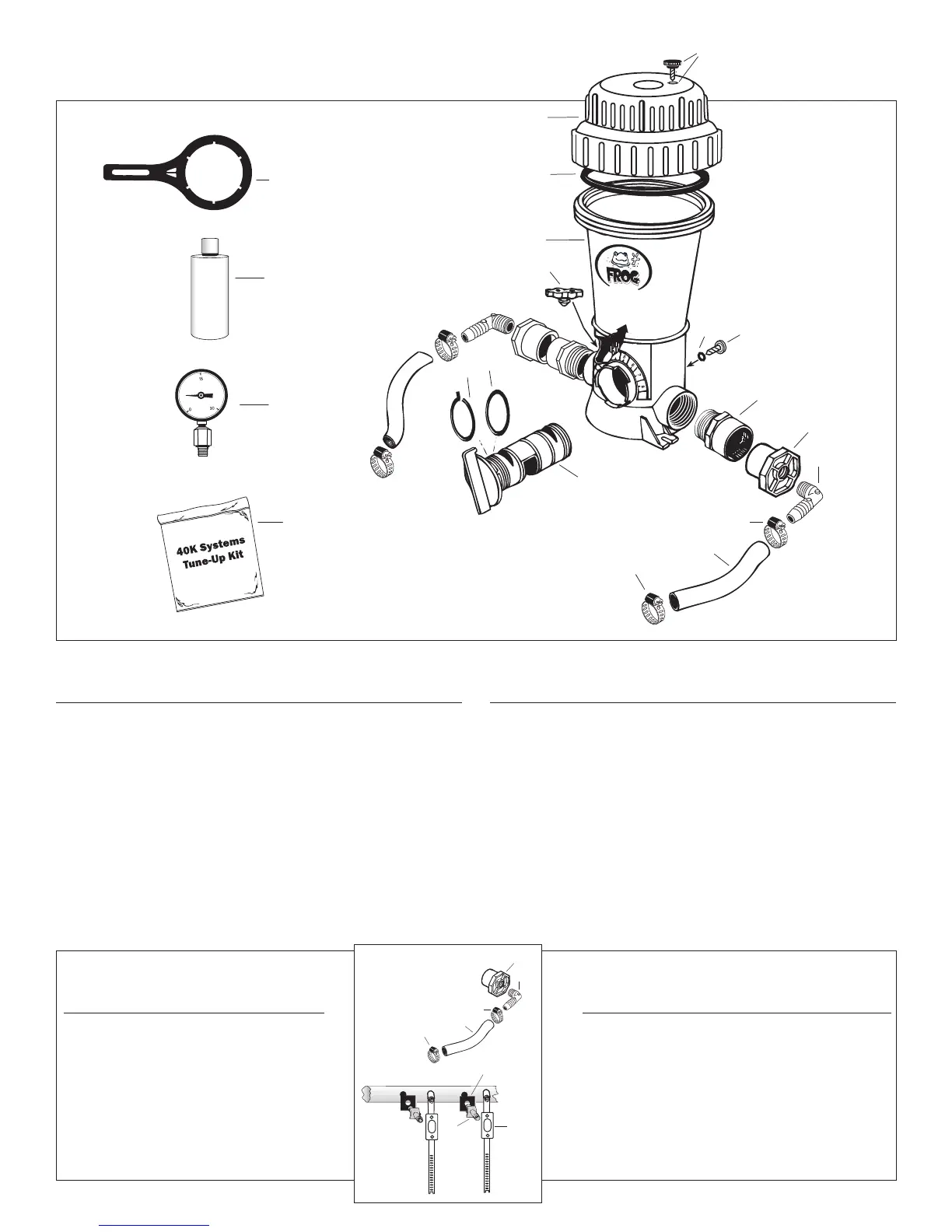

Parts List Models 5400 and 5430
INCLUDED WITH THE POOL FROG
®
Model 5400
REF. # DESCRIPTION QTY. INCLUDED
1 & 2 Cap w/O-Ring 1
3 Body 1
4 Pressure Relief Valve 1
5, 6, 7 Control Dial with O-Ring
& Snap Ring 1
8 & 9 Knob with O-Ring 2
10 2” Male Adapter 2
18 Cap/Control Dial Tool 1
19 Silicone Lubricant 3/4 oz. 1
REPLACEMENT PARTS FOR POOL FROG
®
Model 5400
REF. # PART NUMBER DESCRIPTION
1 & 2 01-22-9417 Cap w/O-Ring
2 01-22-9926 Cap O-Ring
4 01-22-9486 Pressure Relief Valve
5, 6, 7 01-22-9448 Control Dial
with O-Ring & Snap Ring
6 & 7 01-22-9456 O-Ring Kit for Control Dial
8 & 9 01-22-9628 Knob with O-Ring
10 01-22-9490 2” Male Adapter
18 01-22-8870 Cap/Control Dial Tool
19 01-22-9971 Silicone Lubricant 3/4 oz.
20 01-22-4000 Pressure Gauge
21 01-22-9950 40k Tune-Up Kit
OFF-LINE PARTS Included with Model 5430
REF. # DESCRIPTION QTY. INCLUDED
11* 2” x 1/2” Bushing 2
12 90° Elbow 2
13 Small Clamp 4
14 6’ PVC Tubing 1
15 Scoop Gasket 2
16 Venturi Scoop 2
17 Scoop Clamp 2
REPLACEMENT PARTS FOR OFF-LINE Model 5430
REF. # PART NUMBER DESCRIPTION
11* 01-22-8620 2” x 1/2” Bushing
12 01-22-7800 90° Elbow
13 01-22-7690 Small Clamp
14 01-22-7700 6’ PVC Tubing
15 01-22-7850 Scoop Gasket
16 01-22-7790 Venturi Scoop
17 01-22-7910 Scoop Clamp
8 & 9
1
2
3
4
5
7
6
9 8
10
11
12
13
14
13
®
B
R
AN
D
CYCLER
11
12
13
14
13
15
16
17
INLET
Between
pump
and filter
OUTLET
After filter
and
heater (if
heater
installed)
2” to 36” apart on
straight pipe
Off-line parts
11 to 17
S
I
L
I
C
O
N
E
L
U
B
R
I
C
A
N
T
18
19
20
21
